| Application | Residential, Commercial, Potable Water |
| ASSE Standard | ASSE 1003 |
| Connection Size | 1-1/2" x 1-1/2" |
| Connection Type | FNPT x FNPT |
| Finish/Color | Bronze |
| Height | 10.3" |
| Length | 9.3" |
| Material | Low Lead Cast Bronze |
| Maximum Working Water Pressure | 300 psi |
| Maximum Working Water Temperature | 140 deg F |
| Mounting Type | Vertical, Horizontal |
| Pressure Type | Adjustable Pressure |
| Reduced Pressure Range | 25-75 psi (standard) |
| Size | 1-1/2" |
| Valve Body Material | Low Lead Cast Bronze |
| Valve Style | In-line (Backflow, PRVs, TMVs, RVs, etc.) |
| Weight | 12.75 lbs |
| Width | 5.3" |
Description

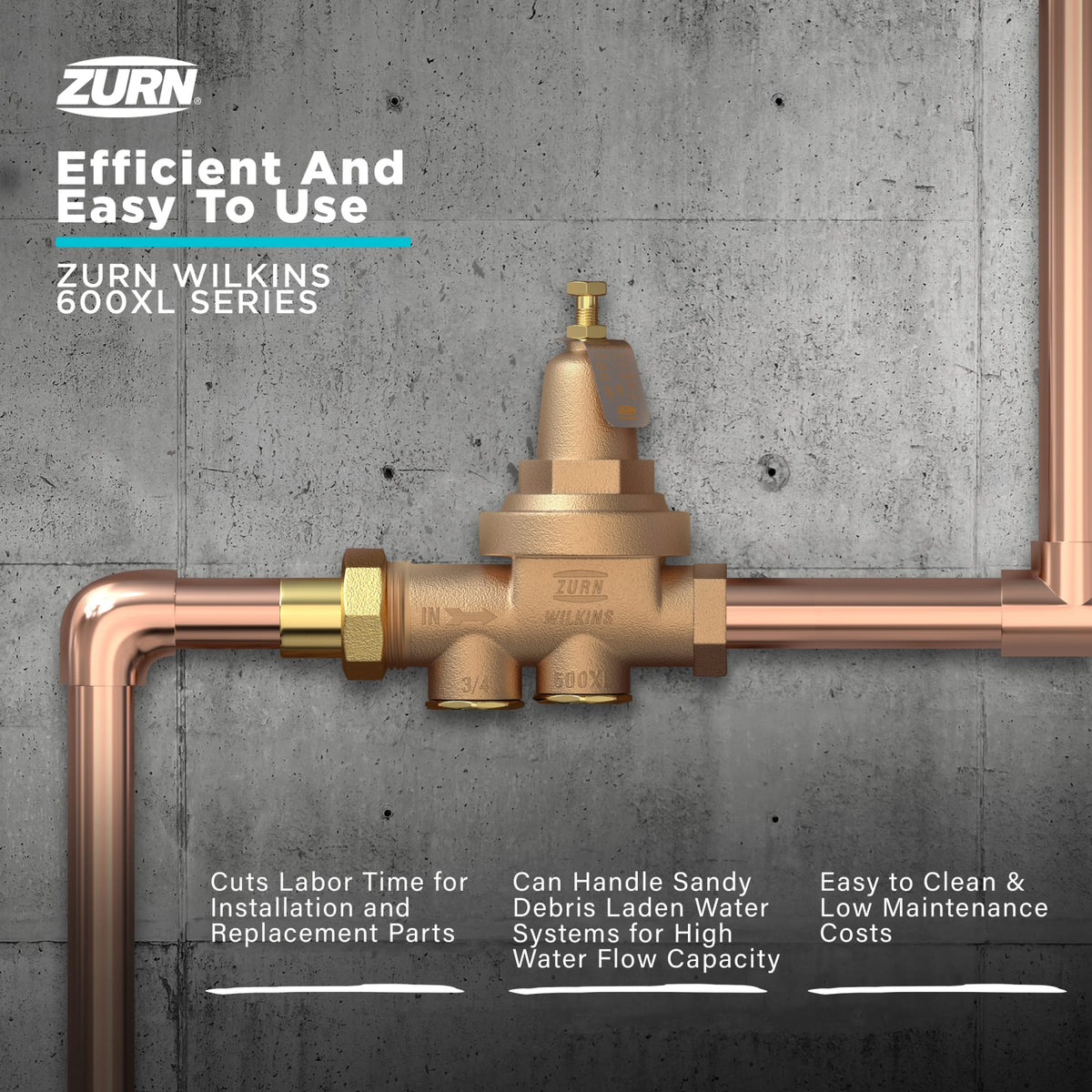

Zurn Wilkins 112-600XL is a 1-1/2" 600XL water pressure reducing valve with FNPT x FNPT connections.
The manufacturer says the 600XL handles sandy, debris-laden water systems with high flow capacity in residential, commercial and new construction applications. It has a 20 mesh stainless steel strainer with a separate access cover and a bronze threaded bell, and its balanced design provides accurate downstream pressure regardless of the incoming pressure.
The valve is listed as ASSE 1003, with a maximum working pressure of 300 psi, a standard reduced range of 25-75 psi and a maximum temperature of 140 deg F. Confirm the 1-1/2" size and mounting position before ordering. Installation guide, parts breakdown, spec sheet and warranty are linked below.
Specifications
- Brand: Zurn Wilkins
- Manufacturer Part #: 112-600XL
- Application: Residential, Commercial, Potable Water
- ASSE Standard: ASSE 1003
- Connection Size: 1-1/2" x 1-1/2"
- Connection Type: FNPT x FNPT
- Material: Low Lead Cast Bronze
- Maximum Working Water Pressure: 300 psi
- Maximum Working Water Temperature: 140 deg F
- Pressure Type: Adjustable Pressure
- Reduced Pressure Range: 25-75 psi (standard)
- Mounting Type: Vertical, Horizontal
- UPC: 612052029603
- Category: Pressure Reducing Valves
Documents
- Installation Guide (PDF)
- Parts Breakdown (PDF)
- Specification Sheet (PDF)
- Warranty (PDF)
