| Connection Size | x |
| Finish/Color | Blue |
| Height | 3.5" |
| Length | 2.6" |
| Material | Cast Iron |
| Size | 1/4", 1/2" |
| Type | Air Gap Fitting |
| Weight | 0.77 lbs |
| Width | 2.6" |
Description

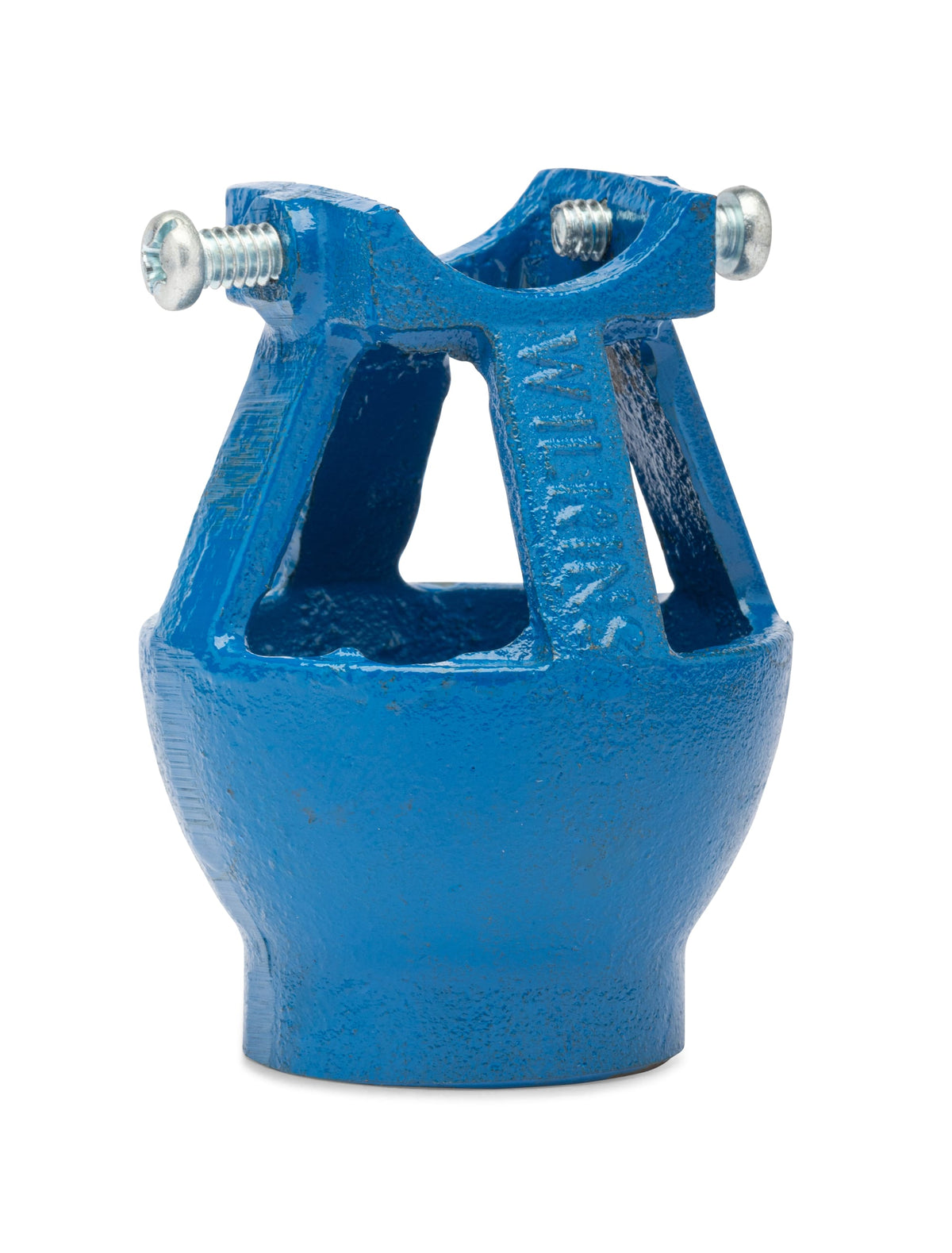

Zurn Wilkins AG-8 is a 1/4" - 1/2" air gap fitting for Model 975XL/975XL2 reduced pressure principle backflow preventers.
The manufacturer says the AG-8 is used for indoor installations to connect a drain pipe to the backflow preventer and direct nuisance water discharge to a safe drain. It has iron inlet and 1" NPT outlet connections and can be mounted to a drain line made of any standard piping material.
The air gap prevents a cross connection between the drain and the potable water supply. It is made from epoxy-painted cast grey iron with zinc-plated steel bolts. Confirm that your backflow preventer is a compatible model before ordering.
Specifications
- Brand: Zurn Wilkins
- Manufacturer Part #: AG-8
- Type: Air Gap Fitting
- Finish: Blue
- Material: Cast Iron
- Size: 1/4", 1/2"
- Outlet Connection: 1" NPT
- UPC: 612052053073
- Category: Air Gaps
Documents
- Warranty (PDF)
See also: air gaps, all Zurn Wilkins products.
