| Connection Type | GR x FPT |
| Gasket Type | EPDM (Green) |
| Material | Painted |
| Size | 3" x 1/2" |
| Type | Tee Branch (Threaded) |
Description

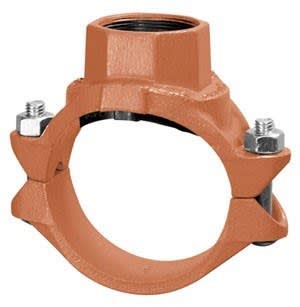

Gruvlok GVLF-7045-300.050-E-PNTD is a 3" x 1/2" Gruvlok Fig. 7045 Clamp-T outlet with a female threaded branch, in a painted finish with an EPDM (green) gasket.
The Clamp-T provides an outlet at any point along a pipe. A hole is drilled or cut in the pipe to receive its locating collar, the housing conforms to the pipe O.D., and the gasket seals under positive pressure and vacuum. The maximum working pressure is 500 PSI when assembled on standard wall steel pipe.
This version is listed as GR x FIP in the 3" x 1/2" size. Confirm the run pipe size and wall thickness, the branch thread size and the gasket grade before ordering, and cut the pipe hole to the size the manufacturer specifies.
Specifications
- Brand: Gruvlok
- Manufacturer Part #: GVLF-7045-300.050-E-PNTD
- Type: Tee Branch (Threaded)
- Connection Type: GR x FPT
- Gasket Type: EPDM (Green)
- Material: Painted
- Size: 3" x 1/2"
- Category: Gruvlok Fittings
