| AFUE | 97% |
| BTU Input Maximum Heating | 60,000 |
| BTU Input Minimum | 9,000 Btu |
| BTU Input Minimum Heating | 9,000 Btu |
| BTU Output | 60,000 Btu |
| Fuel Type | Natural Gas or Propage |
| Gas Inlet | 1/2" |
| Type | Condensing Furnace |
| Vent Material | PPR, CPVC, DWV |
| Vent Size | 2" or 3" depending on vent length |
| Warranty | Limited Lifetime Warranty (restrictions apply) |
Description

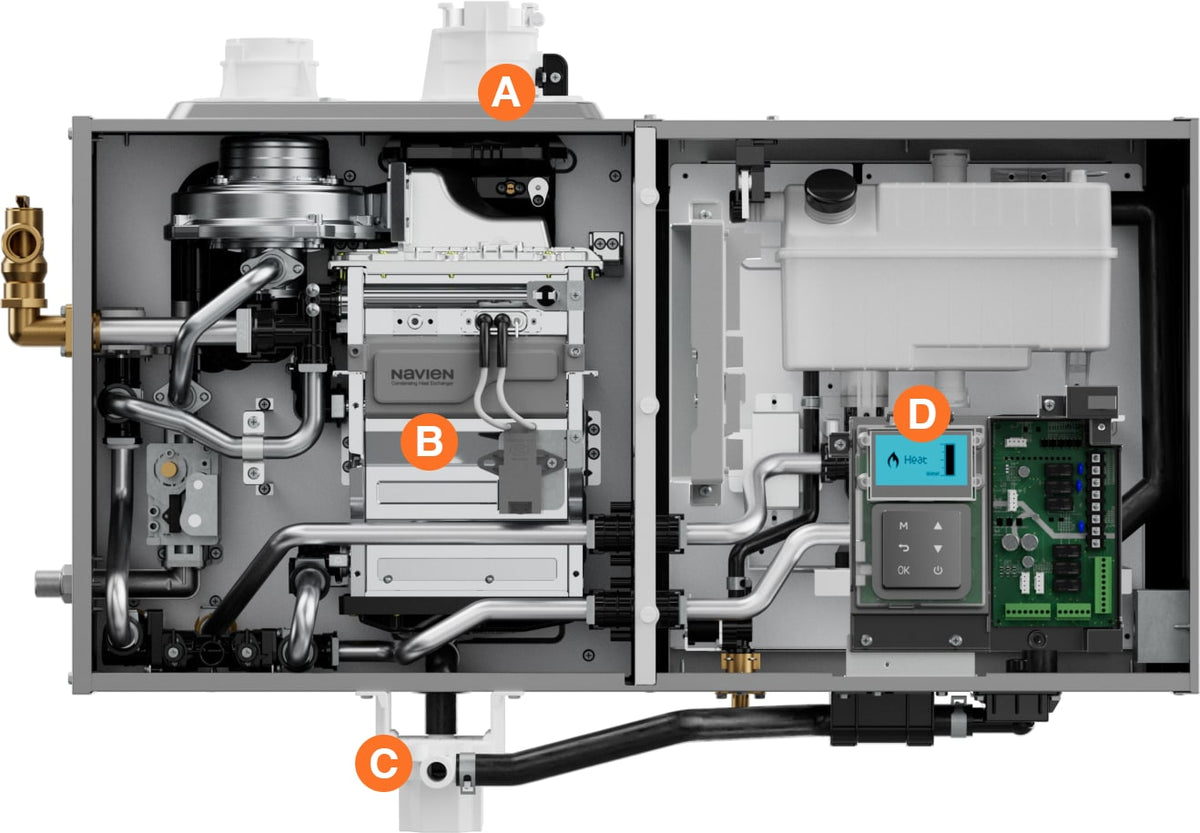

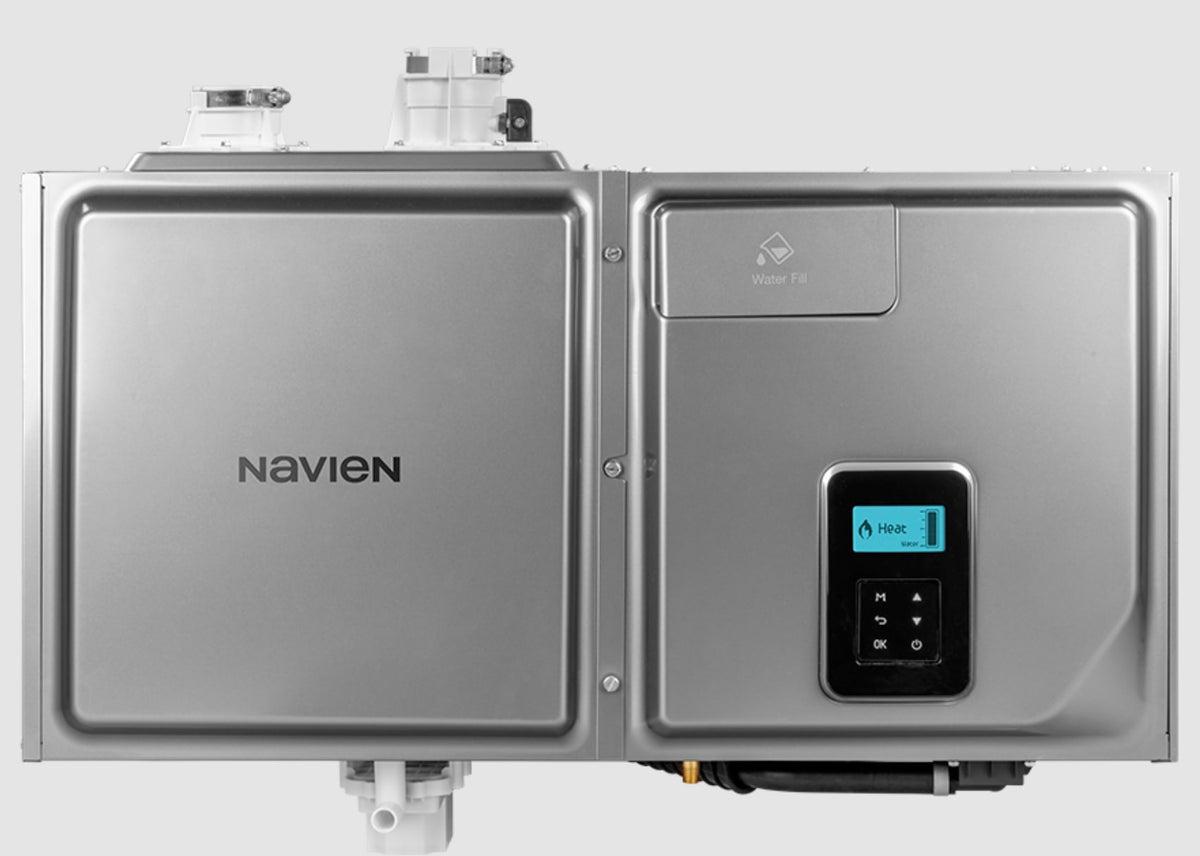

Navien NPF700-060H3BH is a 9,000-60,000 Btu condensing hydro furnace in a horizontal configuration.
The unit is rated at 97% AFUE and has supply and return air temperature sensors. It sustains airflow up to 1.0 in. of external static pressure, works with high-efficiency, high-static air filtration, and allows variable capacity operation with a one or two-stage thermostat.
The listing says it is dual-fuel compatible when paired with an AHRI-matched heat pump, and humidity control compatible with a humidistat. Confirm the horizontal orientation suits the space, the 1/2 in. gas inlet, and the 2 in. or 3 in. vent size for your vent length. The brochures below give more detail.
Specifications
- Brand: Navien
- Manufacturer Part #: NPF700-060H3BH
- AFUE: 97%
- BTU Input Maximum Heating: 60,000
- BTU Input Minimum Heating: 9,000 Btu
- BTU Output: 60,000 Btu
- Fuel Type: Natural Gas or Propane
- Gas Inlet: 1/2"
- Vent Material: PPR, CPVC, DWV
- Vent Size: 2" or 3" depending on vent length
- Warranty: Limited Lifetime Warranty (restrictions apply)
- Category: Hydro Furnaces
Documents
- Brochure (PDF)
- Consumer Brochure (PDF)
- Quick Facts (Upflow) (PDF)
- Quick Facts (PDF)
