| Cold & Hot Connections | 3/4" MIP |
| Efficiency Tier | 90% and above |
| First Hour Rating | 62 gal |
| Installation Type | Medium |
| Tank Capacity | 30 - 60 Gallons |
| Tank Diameter | 23" |
| Tank Height | 48" |
| Tank Material | Glass Lined Steel |
| Tank Size | 50 gallon |
| Uniform Energy Factor (UEF) | 0.93 |
| Volts | 240 V |
| Warranty | 6 Year |
| Watts | 4.5 kW |
Description

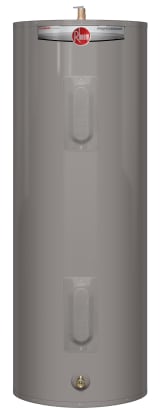

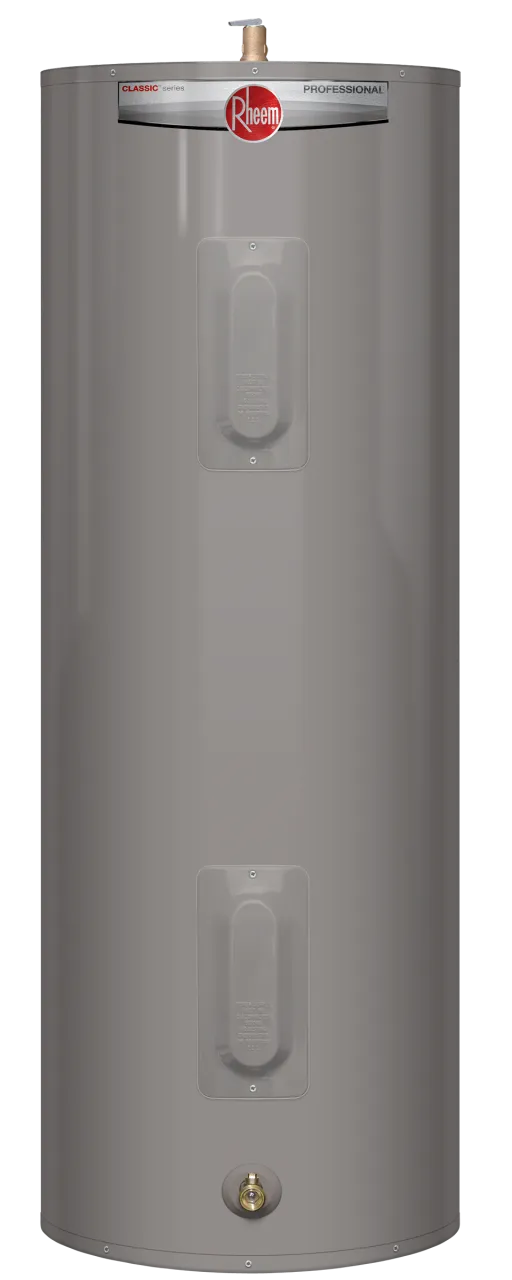

Rheem PROE50-M2-RH95 is a 50 gallon, 4.5 kW, 240 V Professional Classic® electric water heater, medium height.
This 50-gallon electric tank water heater is rated 4.5 kW at 240 V with 3/4" MIP hot and cold connections. The title lists it as a medium-height model, and the listed tank height is 48" with a 23" diameter.
Electric water heaters need a dedicated circuit, so confirm the available voltage, breaker size and wire gauge against the installation manual and local code before ordering. Check that the tank height and diameter fit the space, that the hot and cold connections line up with the existing piping, and that a temperature and pressure relief valve with a discharge line is installed as code requires.
Specifications
- Brand: Rheem
- Manufacturer Part #: PROE50-M2-RH95
- Cold & Hot Connections: 3/4" MIP
- Efficiency Tier: 90% and above
- First Hour Rating: 62 gal
- Tank Diameter: 23"
- Tank Height: 48"
- Tank Material: Glass Lined Steel
- Tank Size: 50 gallon
- Uniform Energy Factor (UEF): 0.93
- Volts: 240 V
- Warranty: 6 Year
- Watts: 4.5 kW
- Category: Residential Tank Heaters - Electric
