| Connection Type | F1807 (Crimp) |
| Material | Copper |
| Size | 3/4" x 4" x 8" |
| Type | Stub Out Elbows |
Description

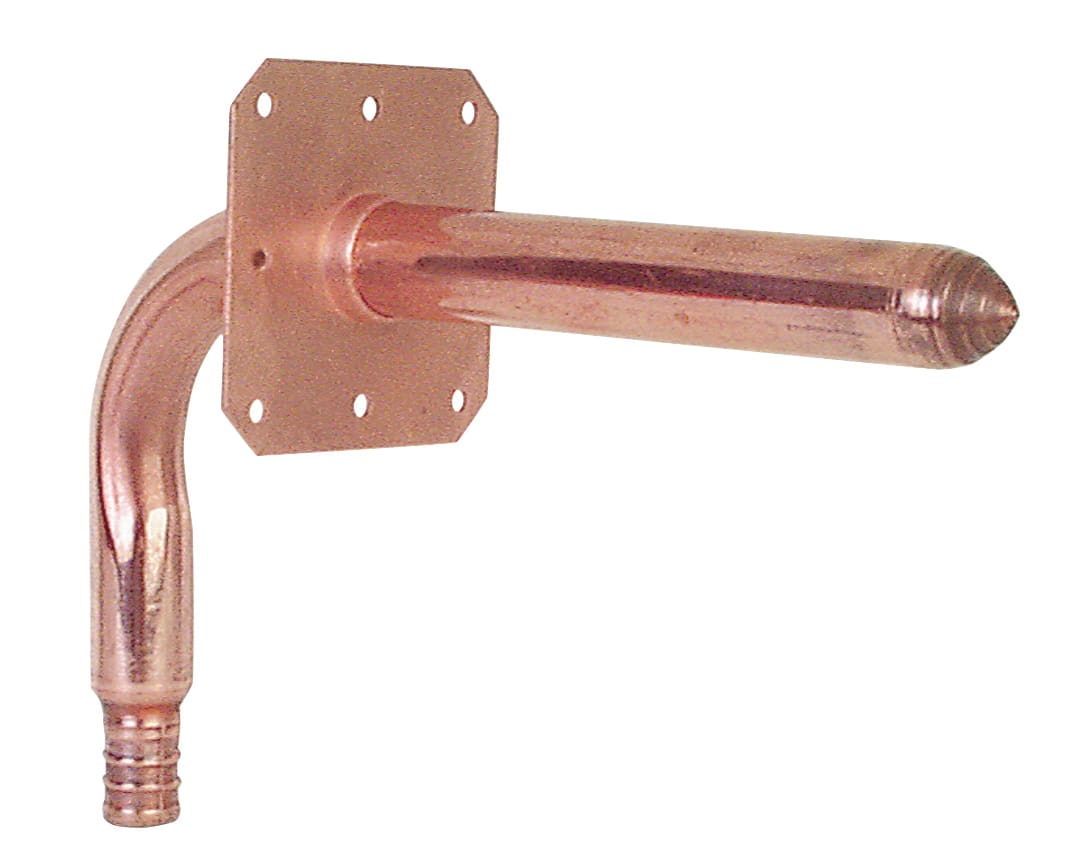

Sioux Chief 630X348E is a 3/4" x 4" x 8" F1807 (crimp) copper stub out elbow with a nail flange.
The manufacturer says this stub out combines the easy adapting of copper stub outs with the easy installation of a PEX system. It is made of Type L copper tube, accepts sweat, push-fitting and compression valves, and has an integral square strap that attaches to a bracket or stud.
Check the 3/4" size and that your PEX system uses F1807 (crimp) connections before ordering. A specification sheet is linked below.
Specifications
- Brand: Sioux Chief
- Manufacturer Part #: 630X348E
- Connection Type: F1807 (Crimp)
- Material: Copper
- Size: 3/4" x 4" x 8"
- Type: Stub Out Elbows
- UPC: 739236403339
- Category: Stub Outs
Documents
- Specification Sheet (PDF)
