| Connection Type | No-Hub |
| Material | Cast Iron |
| Size | 3" |
| Type | Halo Drains |
Description

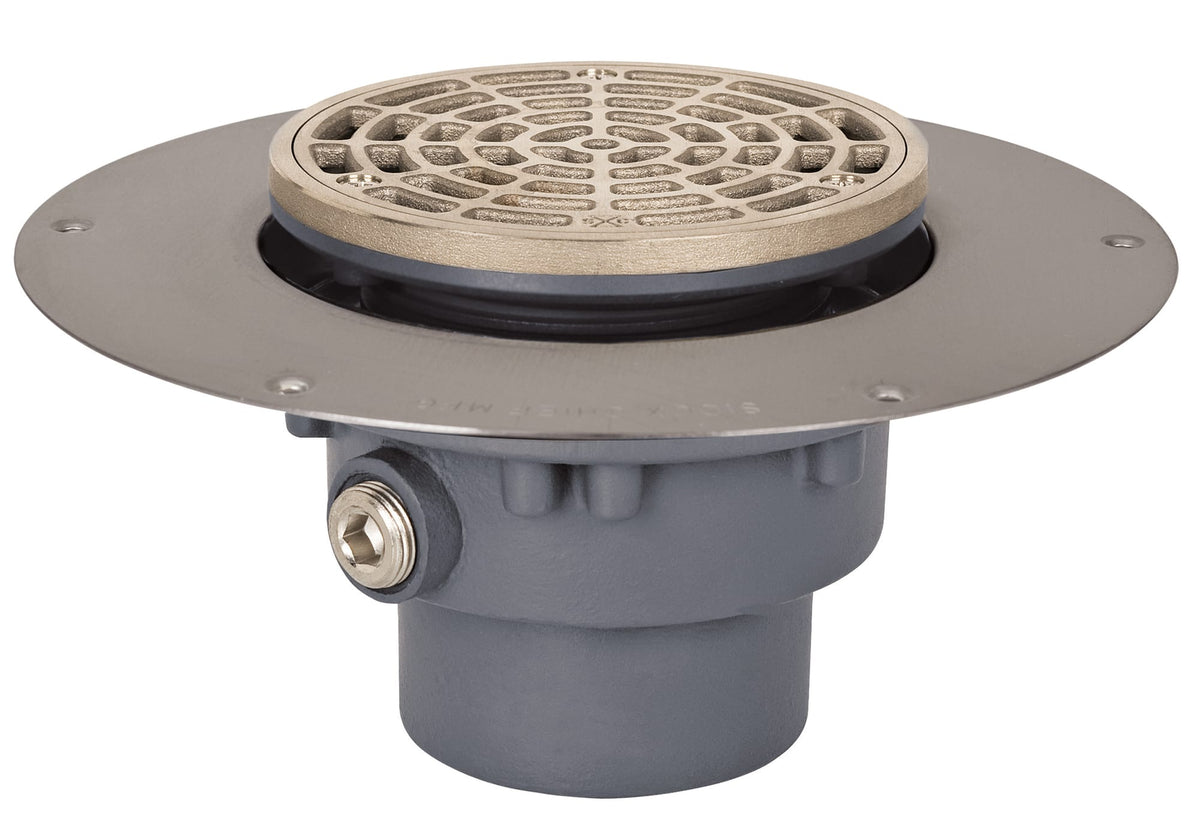

Sioux Chief 822-3DNR is a 3" cast iron Halo floor drain with a 5-7/8" round nickel bronze grate and a no-hub connection.
The manufacturer says the Finish Line models are adjustable after the pour, and that the head adjusts up to 3/4" above flush to accommodate most flooring types. It installs in cored concrete floors or corrugated decks and accepts a 2" or 3" no-hub connection.
Check the connection size and the flooring build-up before ordering. A brochure, instruction sheet for the clamping collar and a specification sheet are linked below.
Specifications
- Brand: Sioux Chief
- Manufacturer Part #: 822-3DNR
- Connection Type: No-Hub
- Material: Cast Iron
- Size: 3"
- Type: Halo Drains
- Grate: 5-7/8" round, nickel bronze
- UPC: 739236381347
- Category: Floor Drains
Documents
- Brochure (PDF)
- Installation Instructions (PDF)
- Specification Sheet (PDF)
