| Commercial or Residential | Primarily Commercial |
| Finish/Color | Polished Chrome |
| Finish Name | Polished Chrome |
| Fixture Connection | Top |
| Gallons per Flush | 0.5 |
| Height | 4.375 |
| Operating Mechanism | Single |
| Operating Pressure | 15-80 |
| Type | Manual Flush |
Description

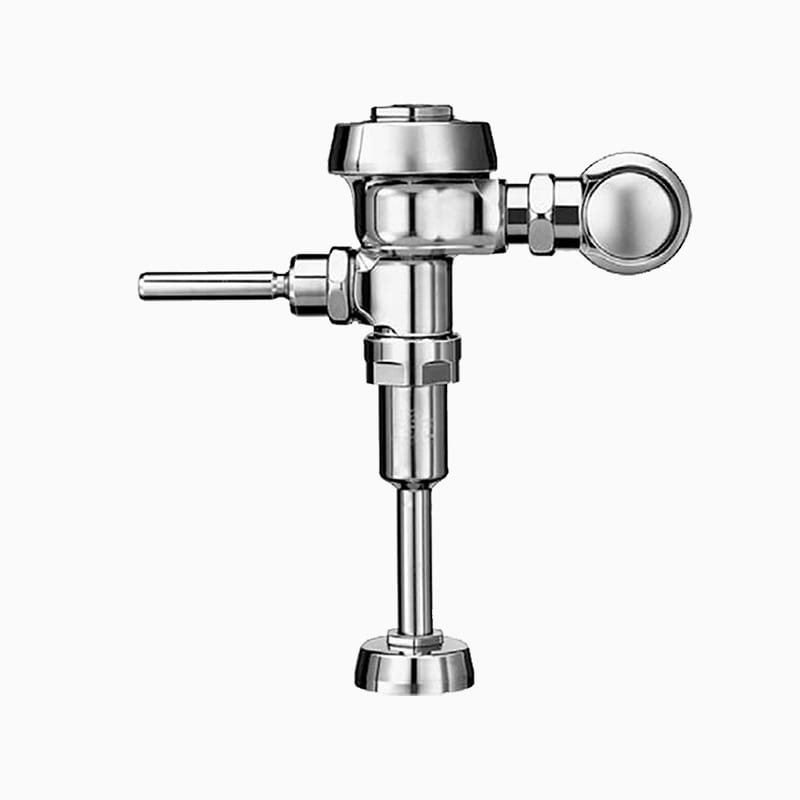

Sloan 3912697 is a Royal® 186-0.5 manual flushometer in Polished Chrome for urinals.
The manufacturer lists an ADA-compliant, non-hold-open handle, a vandal-resistant stop cap, an adjustable tailpiece and high copper, low zinc brass castings for dezincification resistance. The diaphragm is a PERMEX synthetic rubber diaphragm with a dual filtered fixed bypass, and the valve is listed as compliant with the applicable sections of ASSE 1037.
The valve is listed at 0.5 gallons per flush with a top fixture connection. Match the flush volume to the urinal rating and confirm the spud size before ordering. A brochure, maintenance guide and repair guide are linked below.
Specifications
- Brand: Sloan
- Manufacturer Part #: 3912697
- Finish: Polished Chrome
- Fixture Connection: Top
- Gallons per Flush: 0.5
- Operating Mechanism: Single
- Operating Pressure: 15-80
- Type: Manual Flush
- Commercial or Residential: Primarily Commercial
- UPC: 671254130579
- Category: Urinal Flush Valves
Documents
- Brochure (PDF)
- Maintenance Guide (PDF)
- Repair and Maintenance Guide (PDF)
