| BTU Category | 0-50,000 BTU |
| Capacity | 6 Gallon |
| Cold & Hot Connections | 3/4" |
| DHW Temperature Range | 110-170 deg F |
| Finish/Color | Gray |
| First Hour Rating | 30-10 gph @ 40-120F |
| Fuel Type | Electric |
| Installation Type | Point of Use |
| Tank Capacity | 0 - 10 Gallons |
| Tank Diameter | 15-3/4" |
| Tank Height | 15-1/8" |
| Tank Size | 6 gallon |
| Type | Point of Use |
| Volts | 208 V |
| Warranty | 3 Year |
| Watts | 3 kW |
| Weight | 41 lbs |
Description

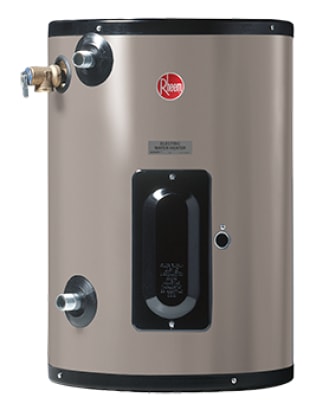

Rheem EGSP6-208V-3kW is a 6 gallon, 3 kW, 208 V point-of-use commercial electric water heater.
This point-of-use electric water heater holds 6 gallons and is rated 3 kW at 208 V with 3/4" hot and cold connections. Point-of-use units are small enough for limited spaces where modest quantities of hot water are needed, and the manufacturer describes a wall mounting kit designed for walls with 16" stud centers.
Confirm that the available supply is 208 V before ordering, since this model is not for 240 V or 120 V circuits, and size the circuit and breaker to the nameplate and local code. Check the available wall space and that the connections match the existing piping, and install a temperature and pressure relief valve with a discharge line as code requires.
Specifications
- Brand: Rheem
- Manufacturer Part #: EGSP6-208V-3kW
- Capacity: 6 Gallon
- Cold & Hot Connections: 3/4"
- DHW Temperature Range: 110-170 deg F
- Finish/Color: Gray
- First Hour Rating: 30-10 gph @ 40-120F
- Fuel Type: Electric
- Installation Type: Point of Use
- Tank Diameter: 15-3/4"
- Tank Height: 15-1/8"
- Tank Size: 6 gallon
- Type: Point of Use
- Volts: 208 V
- Warranty: 3 Year
- Watts: 3 kW
- Weight: 41 lbs
- Category: Point of Use Heaters
