| Connection Type | FPT |
| Gasket Type | EPDM (Green) |
| Material | Painted |
| Size | 2-1/2" x 1" |
| Type | Coupling (Outlet) |
Description

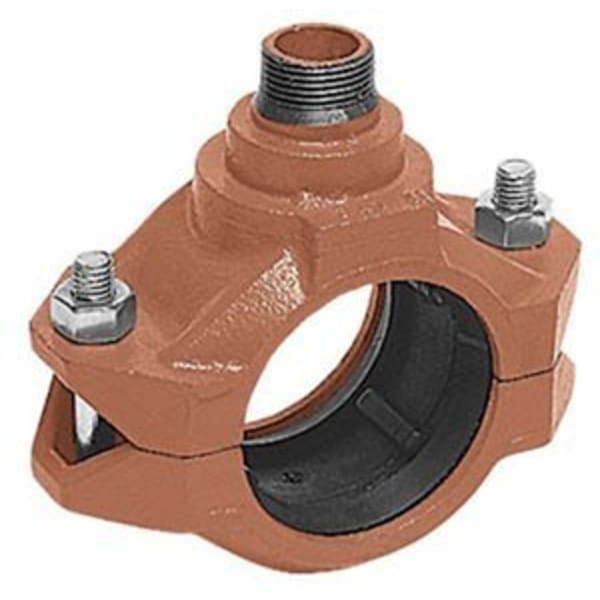

Gruvlok 7042F-250.100-E-PNTD is a 2-1/2" x 1" painted outlet coupling, female pipe thread (FPT), EPDM (Green) gasket.
Gruvlok grooved components join roll-grooved or cut-grooved pipe with mechanical couplings, a fast alternative to welding or threading in fire protection, HVAC and mechanical piping systems. This 2-1/2" component fits the Gruvlok grooved system for IPS steel pipe. The coupling joins two grooved ends and houses the gasket that seals the joint.
Before ordering, confirm the nominal size of both ends, the end connections, the gasket grade for the fluid and temperature, and the material or finish required for the application. Follow Gruvlok installation instructions and lubricate gaskets during assembly.
Specifications
- Brand: Gruvlok
- Manufacturer Part #: 7042F-250.100-E-PNTD
- Size: 2-1/2" x 1"
- Product Type: Outlet coupling
- Finish: Painted
- Connection: female pipe thread (FPT)
- Gasket: EPDM (Green)
See also: Gruvlok, Gruvlok grooved fittings.
