Charlotte Pipe PVC-00502-0600 2" x 1-1/2" x 1-1/2" PVC DWV Combination Tee Wye - All H

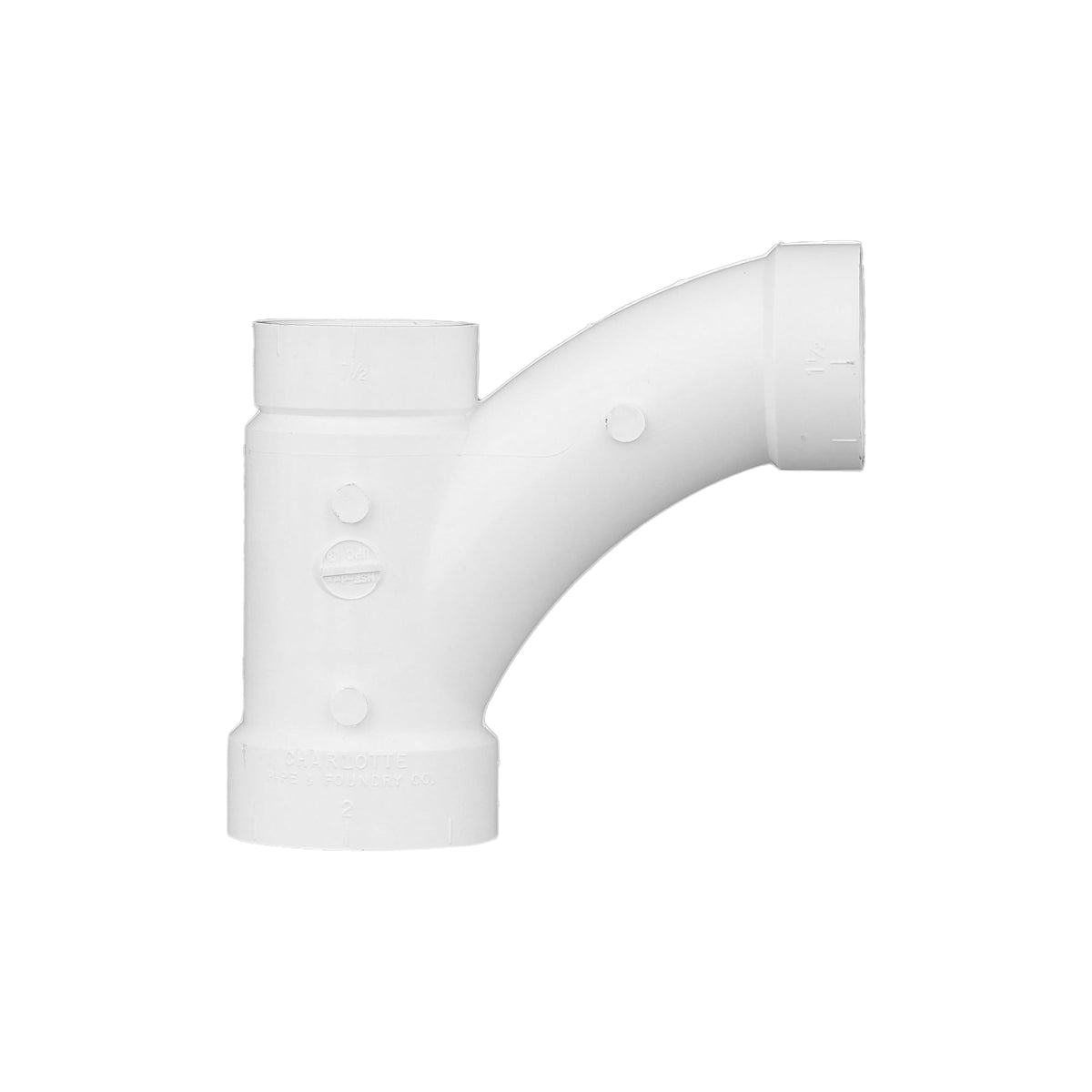

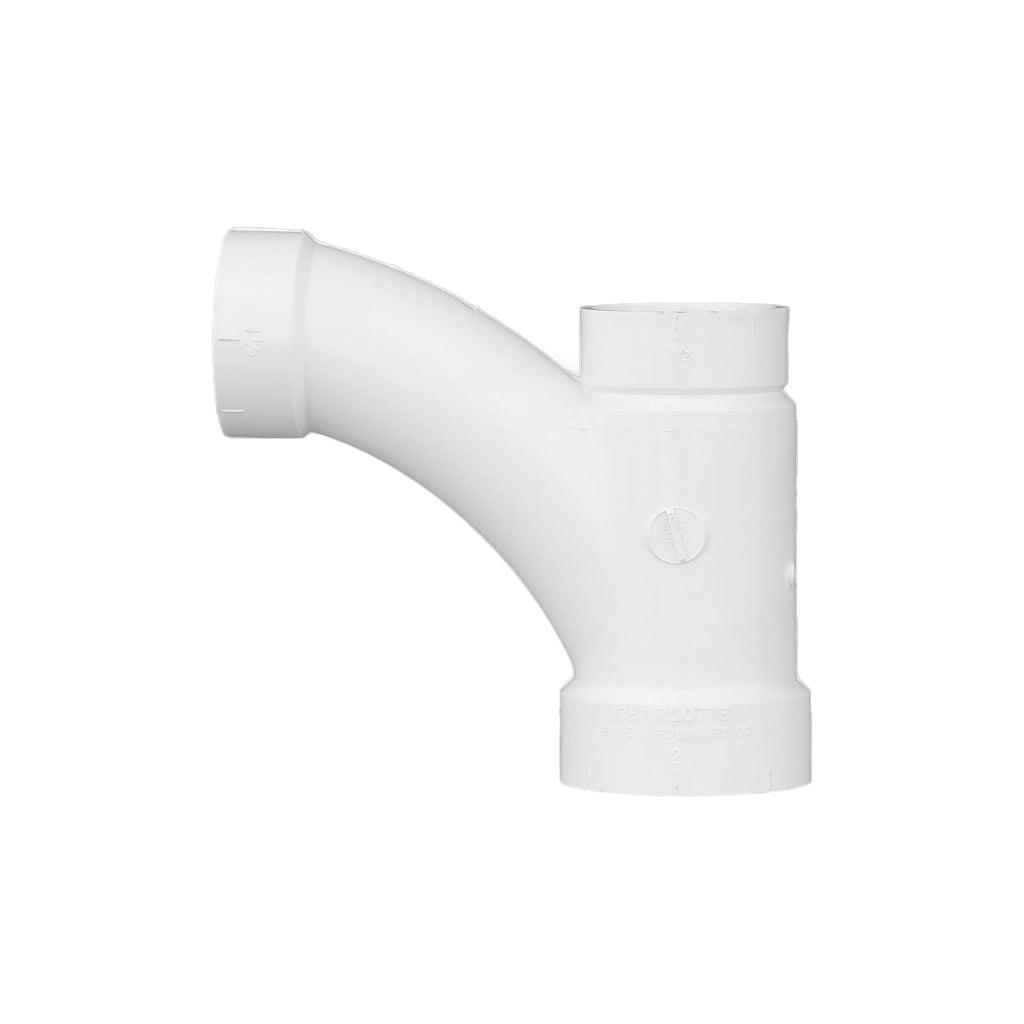

Charlotte Pipe PVC-00502-0600 is a 2" x 1-1/2" x 1-1/2" PVC DWV combination tee wye, All H (H = hub (socket that takes the pipe)).

A combination wye and 1/8 bend brings a branch in at 45° and turns it in one fitting, the usual way to join a horizontal branch into a horizontal drain.

Charlotte PVC DWV fittings are made to ASTM D2665 with drainage patterns to ASTM D3311, and listed to NSF 14. They are for non-pressure sanitary drain, waste and vent, sewer and storm drainage at up to 140°F, joined to Schedule 40 PVC or cellular core pipe with primer and PVC solvent cement. DWV fittings have no pressure rating and do not belong on a water supply line.

Specifications

• Brand: Charlotte Pipe
• Manufacturer Part #: PVC-00502-0600
• System: PVC DWV
• Size: 2" x 1-1/2" x 1-1/2"
• Type: Combination Tee Wye
• Connections: All H
• Material: PVC, Schedule 40 DWV
• Standards: ASTM D2665, D3311, NSF 14
• Temperature: 140°F max, non-pressure
• Joining: Primer (ASTM F656) and PVC solvent cement (ASTM D2564)
• UPC: 611942035656
• Shipping Weight: 0.537 lb
• Category: PVC DWV Fittings

See also: all PVC DWV fittings, primer and cement, ABS DWV fittings, all Charlotte Pipe.
