| Length | 12" |
| Material | 316 SS |
| Size | 3/4" |
| Series | 316 Stainless Steel Pipe Nipples |
| Configuration | MNPT x MNPT |
| Product Type | 316 Stainless Steel Pipe Nipple, Schedule 40 |
Description

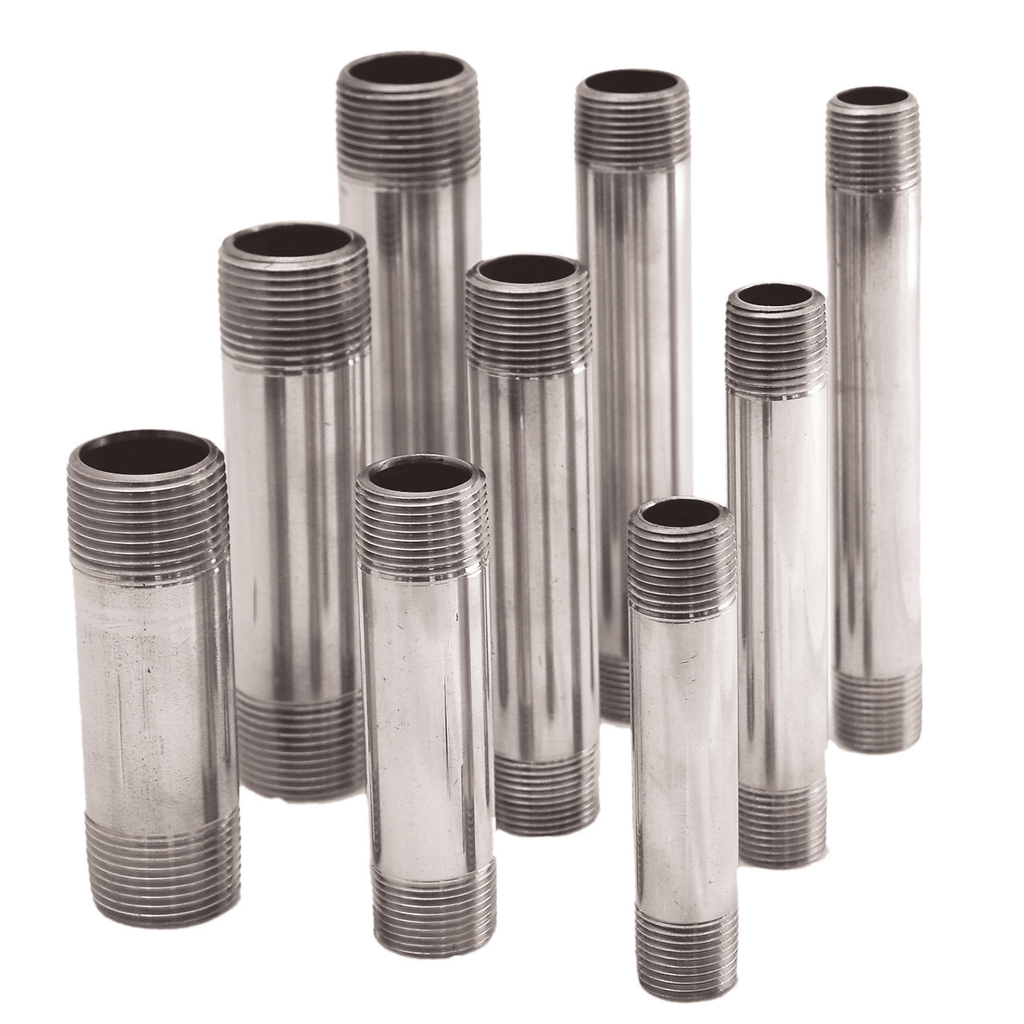

Legend Valve 316-096 is a 3/4" x 12" 304 stainless steel pipe nipple, Schedule 40, threaded NPT both ends.
A nipple is a short length of pipe threaded on both ends; the first figure is the pipe size and the second the overall length, threads included.
Legend stainless nipples are Schedule 40 pipe to ASTM A312, threaded NPT on both ends. Stainless resists corrosion in wet, outdoor, food and process service, and is naturally lead free.
Specifications
- Brand: Legend Valve
- Manufacturer Part #: 316-096
- Pipe size: 3/4"
- Length: 12"
- Material: 304 stainless steel
- Standard: ASTM A312, Schedule 40
- Threads: NPT, both ends (ASME B1.20.1)
- UPC: 662545104751
- Category: Stainless Steel Nipples
