| Connection Type | H x Spigot |
| Material | PVC DWV |
| Size | 3" |
| Type | Elbow - 90° Long Turn Street - H x Spigot |
Description

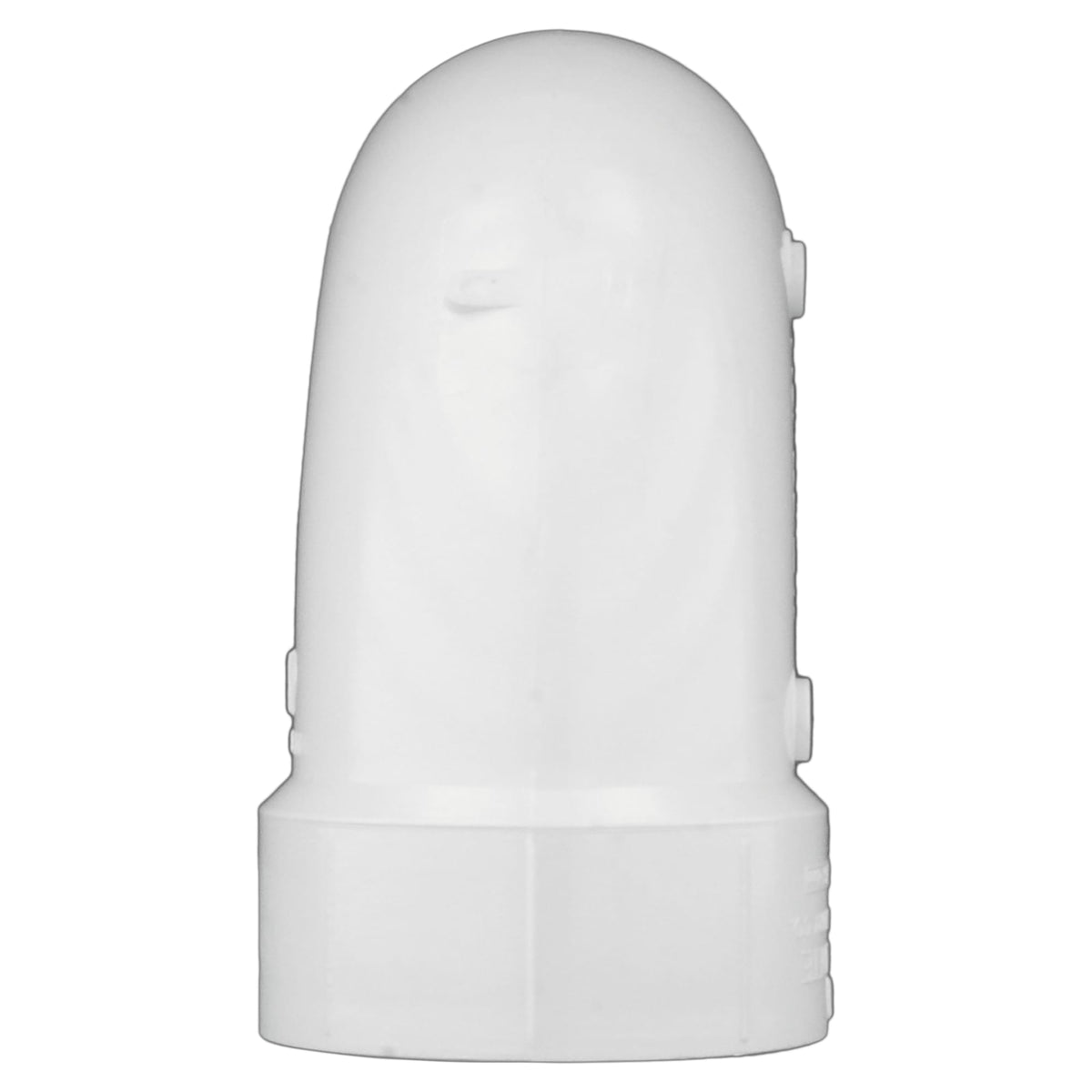

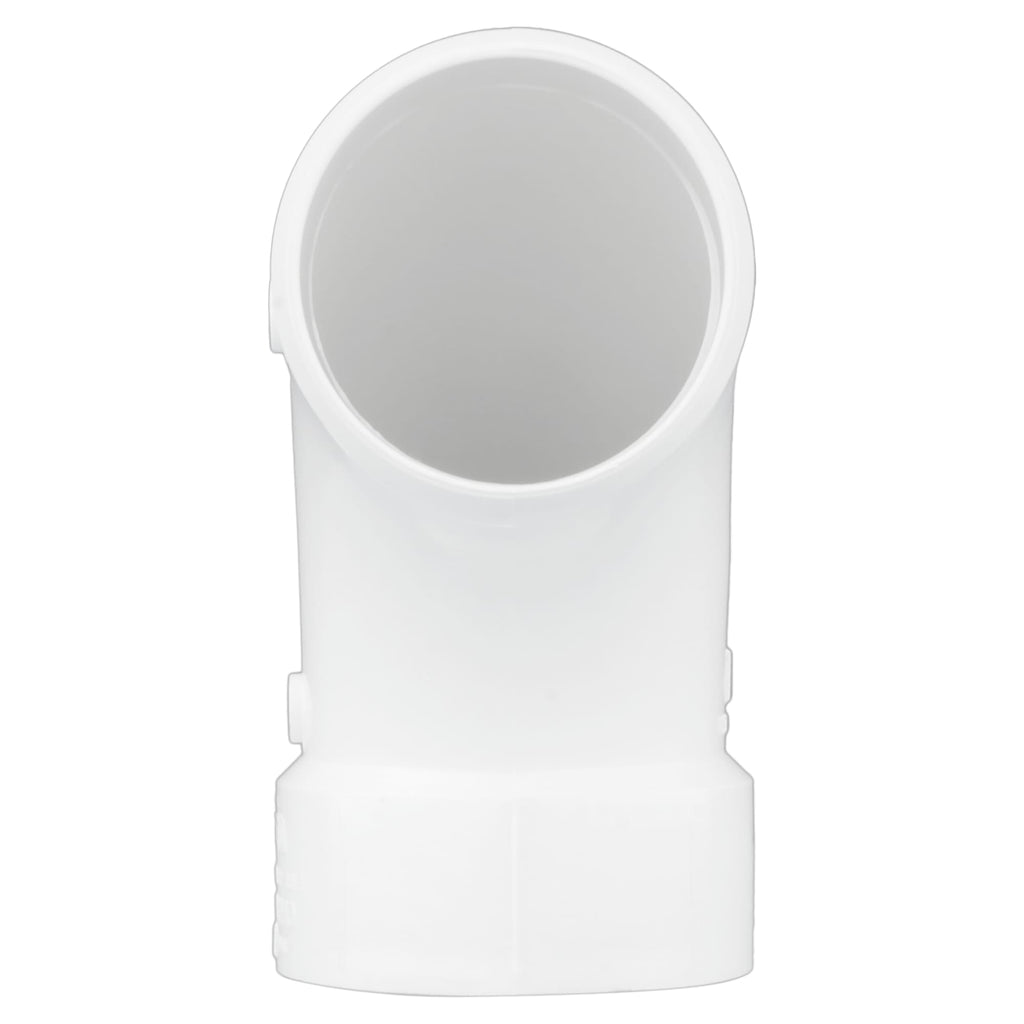

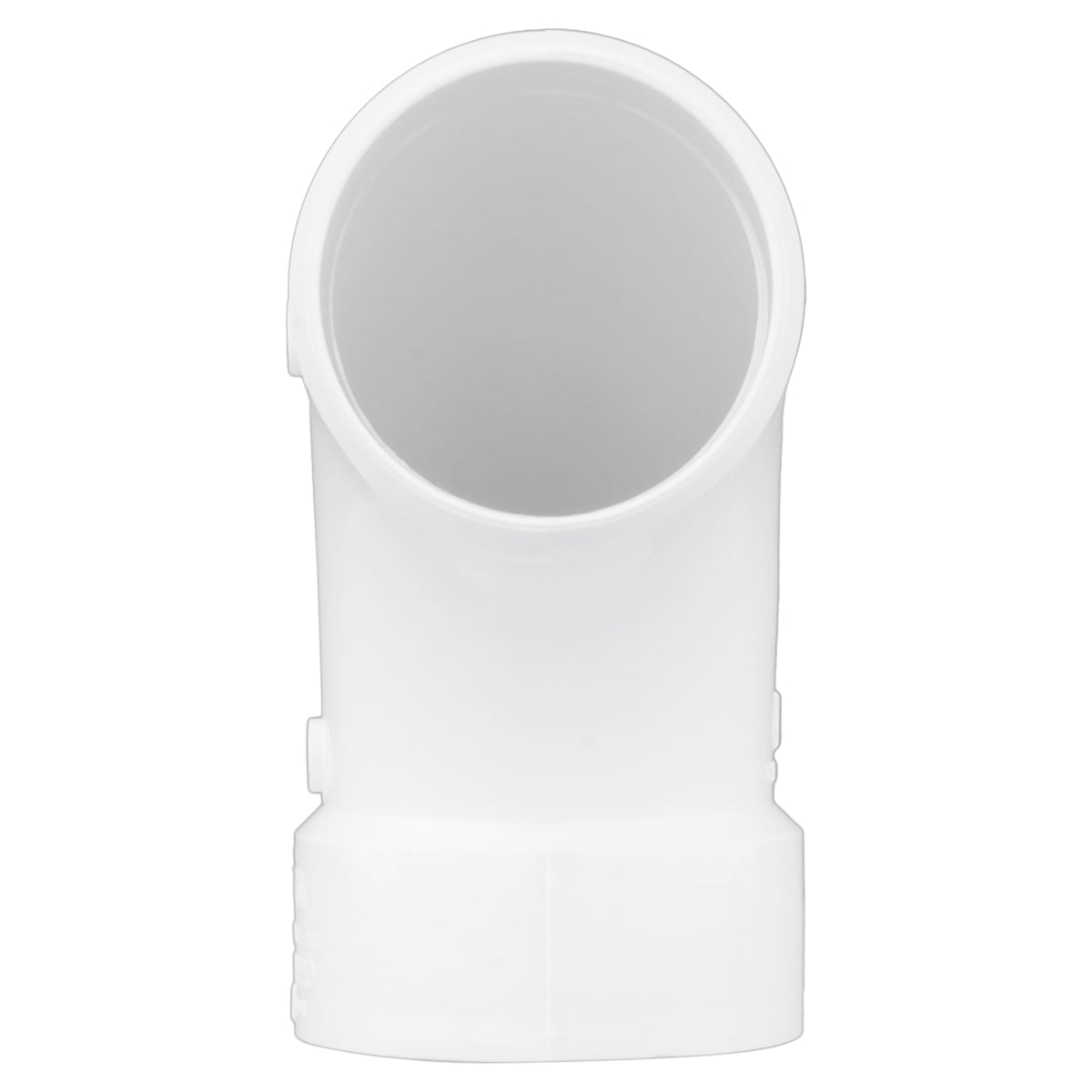

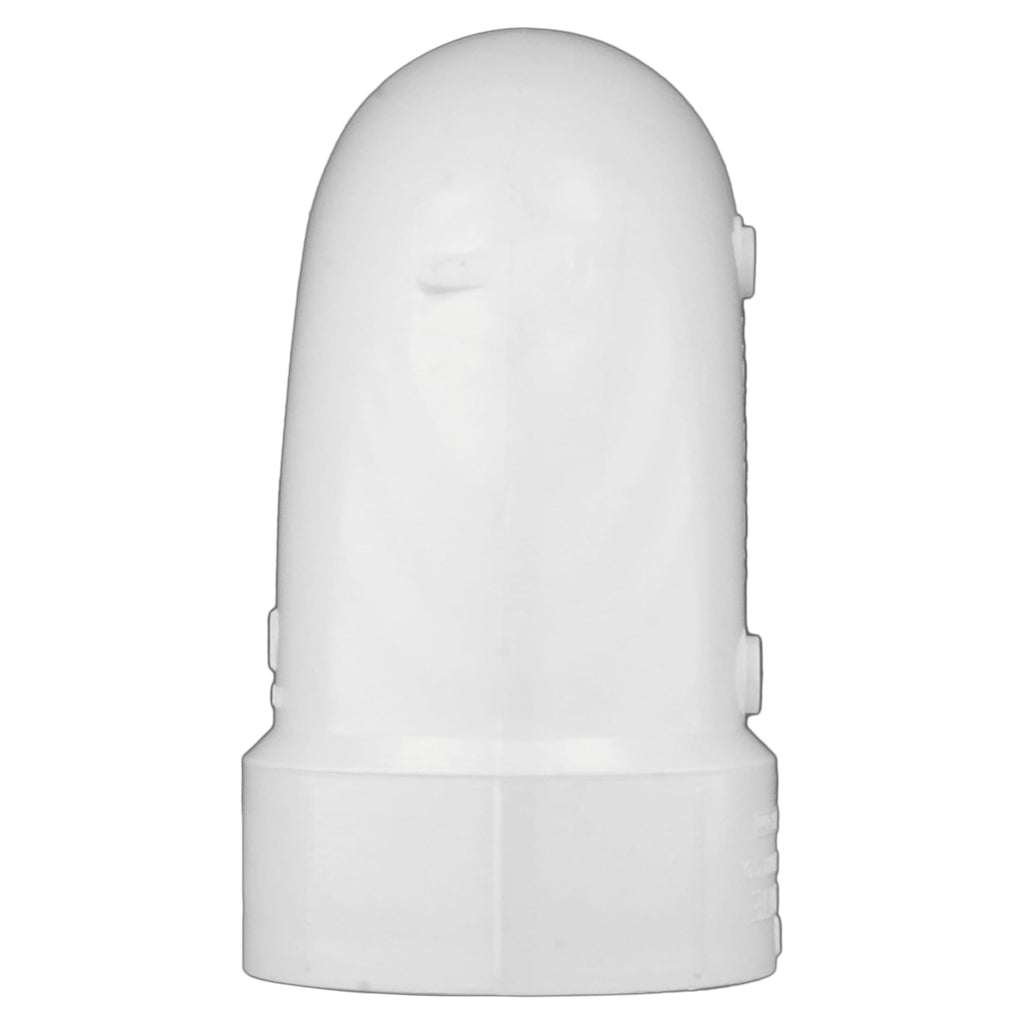

Charlotte Pipe PVC-00309-1000 is a 3" PVC DWV 90° long turn street elbow, H x Spigot (H = hub (socket that takes the pipe); Spigot = spigot (pipe-size end that fits into a hub or socket)).
A long-turn elbow has a wider sweep, which is what codes call for where a drain changes from vertical to horizontal.
Charlotte PVC DWV fittings are made to ASTM D2665 with drainage patterns to ASTM D3311, and listed to NSF 14. They are for non-pressure sanitary drain, waste and vent, sewer and storm drainage at up to 140°F, joined to Schedule 40 PVC or cellular core pipe with primer and PVC solvent cement. DWV fittings have no pressure rating and do not belong on a water supply line.
Specifications
- Brand: Charlotte Pipe
- Manufacturer Part #: PVC-00309-1000
- System: PVC DWV
- Size: 3"
- Type: 90° Long Turn Street Elbow
- Connections: H x Spigot
- Material: PVC, Schedule 40 DWV
- Standards: ASTM D2665, D3311, NSF 14
- Temperature: 140°F max, non-pressure
- Joining: Primer (ASTM F656) and PVC solvent cement (ASTM D2564)
- UPC: 611942033881
- Shipping Weight: 1.138 lb
- Category: PVC DWV Fittings
