| Connection Type | GR x FPT |
| Gasket Type | EPDM (Green) |
| Material | Painted |
| Size | 6" x 1-1/4" |
| Type | Tee Branch (Threaded) |
Description

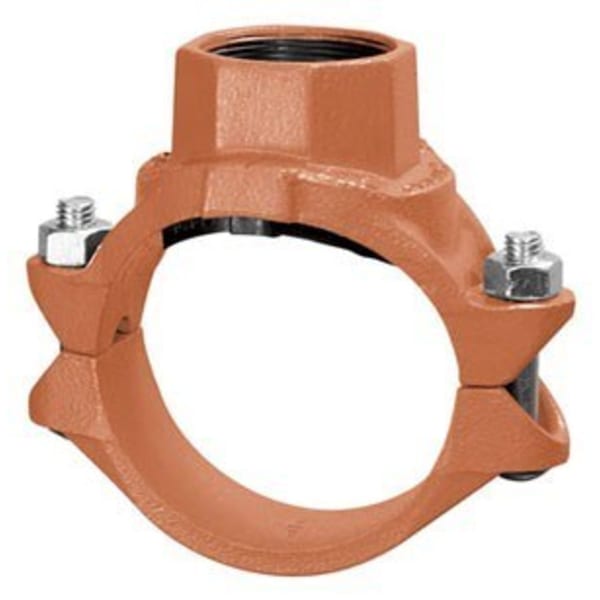

Gruvlok 7045-600.125-E-PNTD is a 6" x 1-1/4" Figure 7045 Clamp-T branch outlet with a female threaded (FPT) branch, with a painted finish.
The Clamp-T adds an outlet at any point along the pipe: a hole is drilled or cut in the main to receive the locating collar, and the clamp and gasket seal around it. The female threaded branch accepts a smaller line, gauge, drain or sprinkler connection. It comes with an EPDM (Green) gasket; confirm the gasket grade is compatible with your system fluid and temperature.
The painted finish suits steel pipe in mechanical rooms, HVAC and fire protection systems. Match the run and branch sizes to your pipe and confirm the gasket grade for your system fluid and temperature. Always follow Gruvlok installation instructions for pipe preparation and bolt torque.
Specifications
- Brand: Gruvlok
- Manufacturer Part #: 7045-600.125-E-PNTD
- SKU: GVLF-7045-600.125-E-PNTD
- Size: 6" x 1-1/4"
- Product Type: Clamp-T Branch Outlet (Threaded)
- Material / Finish: Painted
- Branch Connection: Female threaded (FPT)
- Gasket: EPDM (Green)
- Category: Gruvlok Fittings
