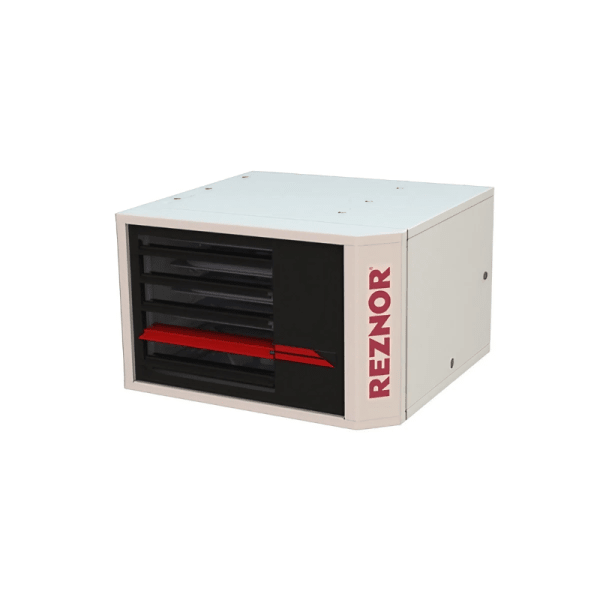

Reznor UDXC-60 60,000 BTU - UDXC Universal, Gas-Fired Unit Heater - Natural Gas (Propane Conversion Kit Available)

The Reznor UDXC-60 is a power-vented, low-static axial fan gas-fired unit heater with a 60,000 BTU/hr input. It has a TCORE2 titanium-stabilized aluminized-steel heat exchanger, a sealed control compartment and a hinged access door, and it is suspended from the ceiling for space heating in industrial and commercial buildings.

Before ordering, confirm the fuel: the unit is natural gas standard, and propane requires the conversion kit (option DL2). Check that 115V/1/60 power is available, plan the 4" vent connection, and verify clearances. Reznor states the heater must be suspended with the bottom at least 5 feet above the floor. Installation must follow local codes and the National Fuel Gas Code.

Specifications

• Brand: Reznor
• Manufacturer Part #: UDXC-60
• Type: Power-vented gas-fired unit heater
• Input: 60,000 BTU/hr
• Output, High Fire: 49,800 BTU/hr (ETL rating up to 2,000 ft elevation)
• Thermal Efficiency: 83%
• Fuel: Natural gas standard; propane conversion kit option DL2
• Electrical: 115V/1/60, 2.4 full load amps
• Gas Connection: 1/2"
• Vent Connection: 4"
• Air Volume: 769 CFM
• Fan Diameter: 12"
• Minimum Gas Supply Pressure: 5 in. WC natural gas; 11 in. WC propane
• Maximum Gas Supply Pressure: 14 in. WC
• Unit Weight: 71 lb
