| Connection Size | 4" |
| Connection Type | Press |
| Material | Plate Steel |
| Size | 4" |
| Type | Flange |
Description

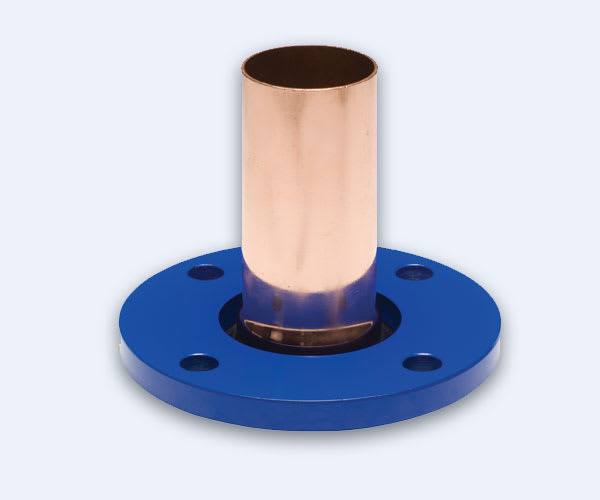

CTS Fabrication SF004 is a 4 in. press copper coated 4-bolt flange adapter, 150 lb.
The adapter is listed for use on any press fit system, soldering or grooving, and it is suitable for all brass companion flange applications. It has an adjustable rotating flange, which eliminates 2-holing, and the manufacturer lists 100% electrolysis protection, a 99.9% copper component, a burst pressure of 1000 PSI for 2 in. to 4 in. sizes and a temperature range of -66°F to 272°F.
Applications include butterfly and flanged gate valve installations, along with pumps, boilers and chillers. Check that the 4-bolt, 150 lb pattern matches the mating flange and that the 4 in. size matches your tubing before ordering.
Specifications
- Brand: CTS Fabrication
- Manufacturer Part #: SF004
- Connection Size: 4"
- Connection Type: Press
- Material: Plate Steel
- Size: 4"
- Type: Flange
- Category: Press Fittings - Copper (CTS)
See also: press fittings - copper (cts), all CTS Fabrication products.
