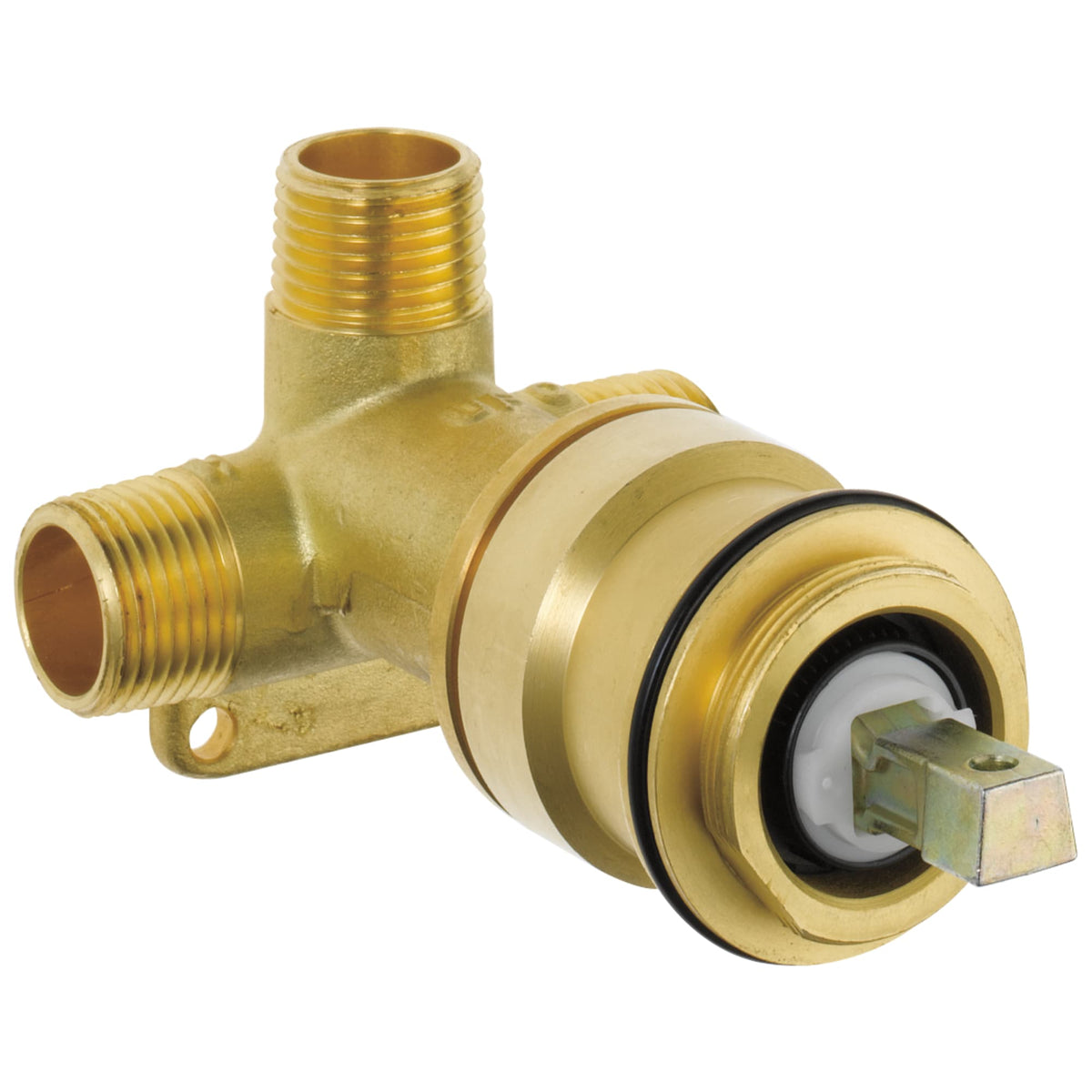

Delta R3510-WL Tesla® Single Handle Wall Mount Rough

Delta R3510-WL is a Tesla® single handle wall-mount lavatory rough-in kit.

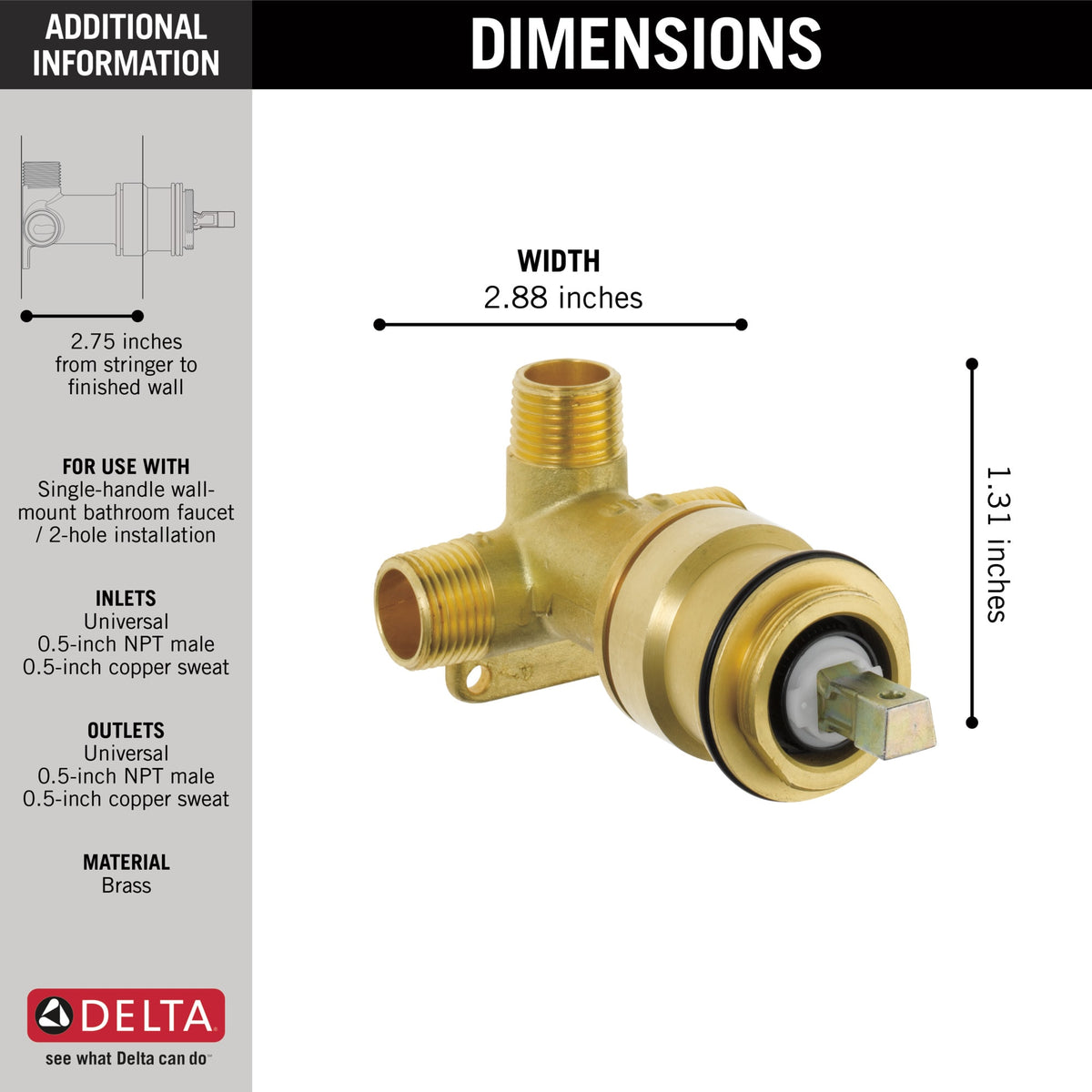

The kit is for single handle wall-mount bathroom faucets, and the lead-free brass body ships with valves and plaster guards. The maximum rough-in depth is 2-3/4 in., and the control mechanism is a diamond embedded ceramic disc cartridge.

This is the rough-in only, so the trim must be purchased separately. Match it to the wall-mount faucet and confirm the rough-in depth before ordering.

What's included

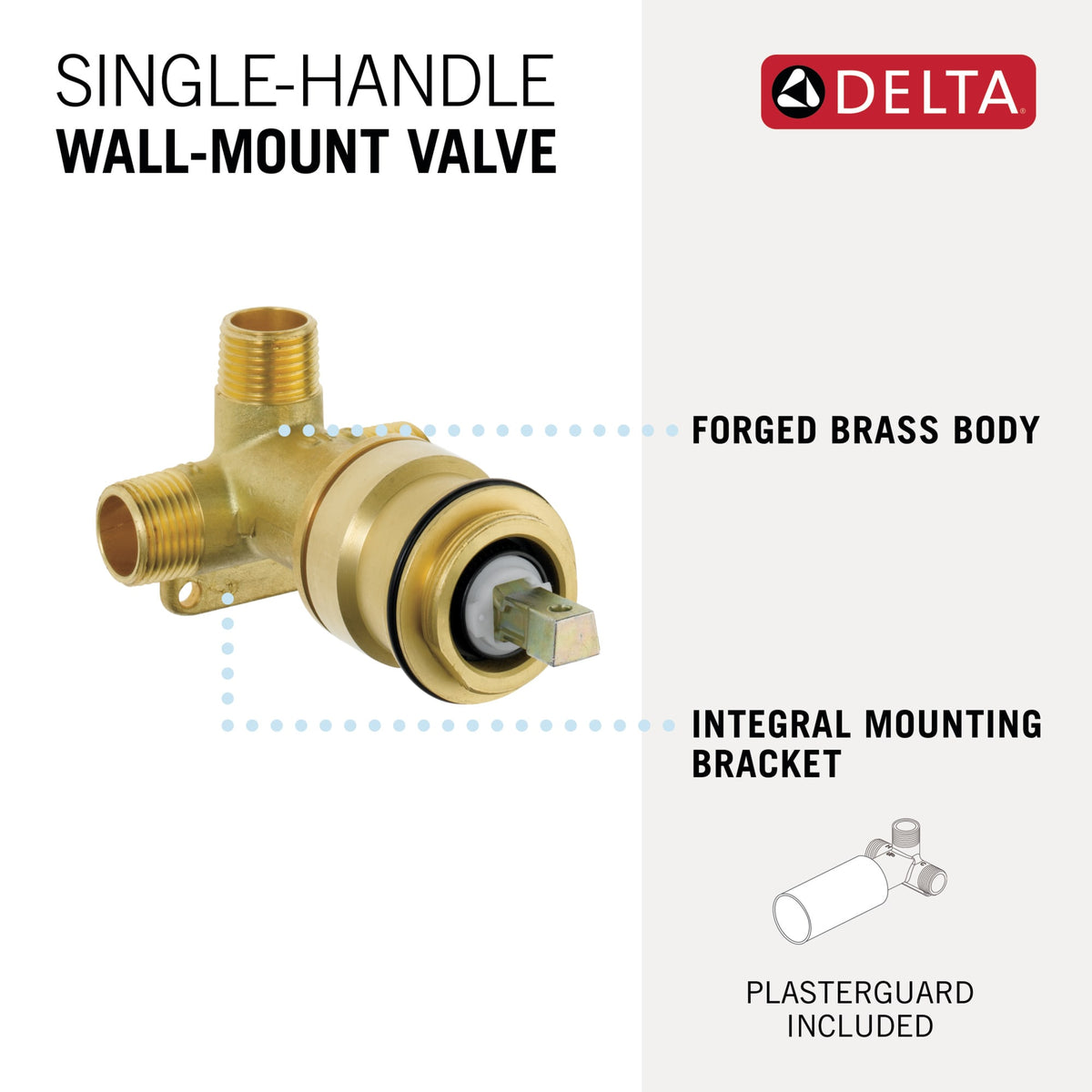

• Valve body
• Ceramic disc cartridge (installed)
• Plaster guards

Cartridge: Included. The valve can be pressure tested (air 200 psi, water 300 psi) with the supplied cartridge.

Trim (sold separately)

The handle and escutcheon are not included. Finish this valve with a Delta single-handle wall-mount lavatory trim, such as T3559LF-WL. Maximum rough-in depth: 2-3/4".

Specifications

• Brand: Delta
• Manufacturer Part #: R3510-WL
• Commercial or Residential: Primarily Residential
• Faucet Hole Center: 4"
• Number of Faucet Holes: 2
• UPC: 034449763868
• Category: Lavatory Valves

Documents

• Maintenance and Installation Guide (PDF)
• Parts Diagram (PDF)
• Specification Sheet (PDF)
