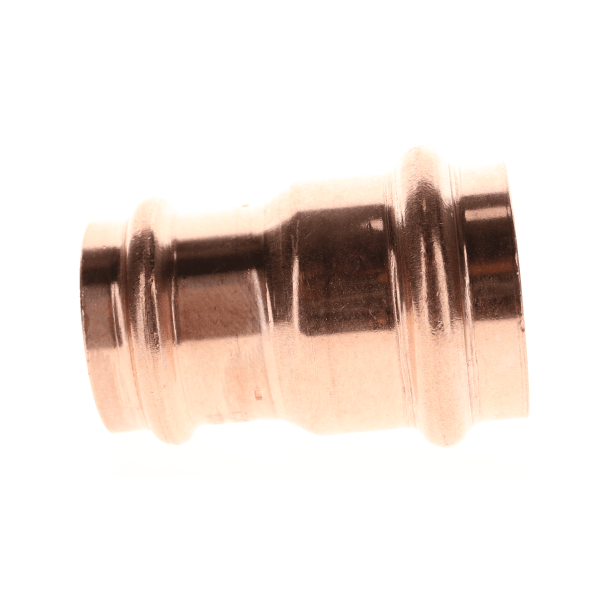

Mueller Streamline PF 01064 1-1/2" x 1-1/4" Copper Press Fittings - Coupling P x P

Mueller Streamline PF 01064 is a 1-1/2" x 1-1/4" coupling for copper tube, P x P (P = press socket).

A coupling joins two lengths of the same size in a straight run.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 01064
• Size: 1-1/2" x 1-1/4"
• Type: Coupling
• Connections: P x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768405382
• Shipping Weight: 0.39 lb
• Category: Press Fittings - Copper (CTS)
