| Connection Size | 5/8" x 3/8" |
| Connection Type | Comp (OD) x Comp (OD) |
| Finish/Color | Chrome |
| Size | 1/2" x 3/8" |
| Type | Straight Stops |
| Series | T-596NL FNPT x OD |
| Configuration | FNPT x Compression (OD) |
| Product Type | No Lead Chrome-Plated Forged Brass 1/4-Turn FNPT x OD Straight Stop Valve |
Description

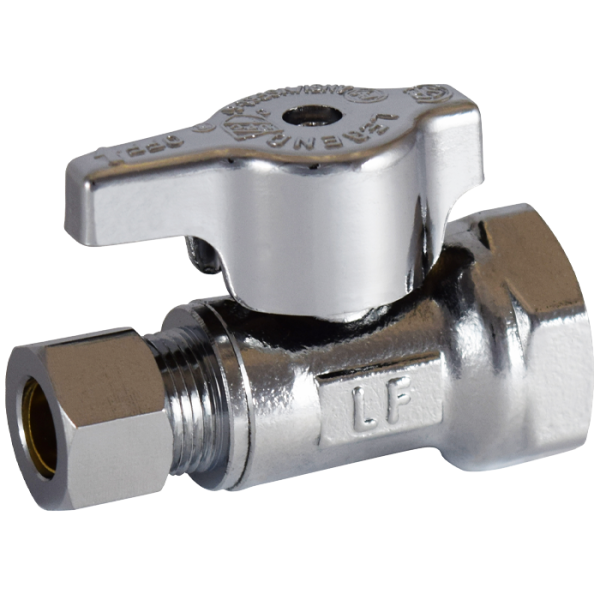

Legend Valve 114-703NL is a 1/2" x 3/8" FNPT x comp straight stop 1/4-turn.
A stop valve is the fixture shutoff under a sink, toilet or appliance, so the fixture can be serviced without shutting off the house.
Specifications
- Brand: Legend Valve
- Manufacturer Part #: 114-703NL
- Size: 1/2" x 3/8"
- Type: FNPT x Comp Straight Stop No Lead Chrome-Plated Forged Brass 1/4-Turn
- Material: Forged Brass
- Lead content: No Lead (0.25% max weighted lead, NSF/ANSI 372)
- Operation: 1/4-Turn
- Finish: Chrome-Plated
- Category: Stops
See also: more in this category, all Legend Valve.
