| Connection Size | 5/8" x 3/8" |
| Connection Type | Comp (OD) x Comp (OD) |
| Finish/Color | Chrome |
| Type | Straight Stops |
| Series | T-596NL OD x OD |
| Configuration | Compression (OD) x Compression (OD) |
| Product Type | No Lead Chrome-Plated Forged Brass 1/4-Turn OD x OD Straight Stop Valve |
| Size | 5/8" x 3/8" |
Description

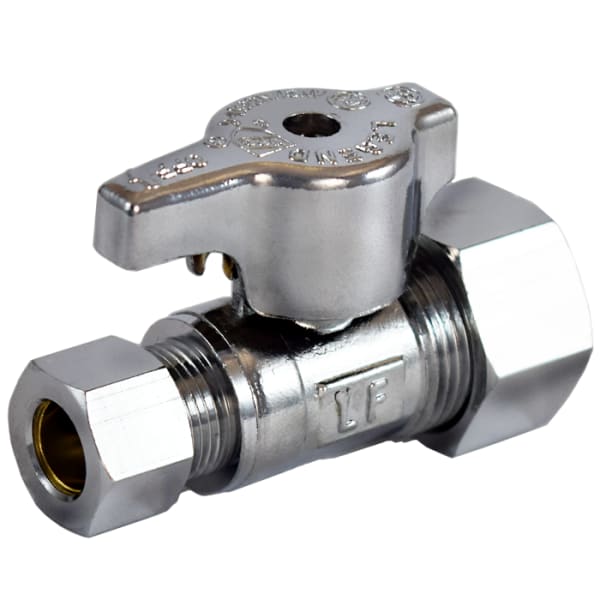

Legend Valve 114-704NL is a 5/8" x 3/8" 1/4-turn ball-type straight stop valve, Comp (OD) x Comp (OD).
A stop valve is the fixture shutoff under a sink, toilet or appliance, so the fixture can be serviced without shutting off the house.
Specifications
- Brand: Legend Valve
- Manufacturer Part #: 114-704NL
- Size: 5/8" x 3/8"
- Type: 1/4-Turn Ball-Type OD x OD Straight Stop Valve
- Connections: Comp (OD) x Comp (OD)
- Material: Forged Brass
- Lead content: No Lead (0.25% max weighted lead, NSF/ANSI 372)
- Operation: 1/4-Turn
- Finish: Chrome-Plated
- UPC: 662545084923
- Category: Stops
