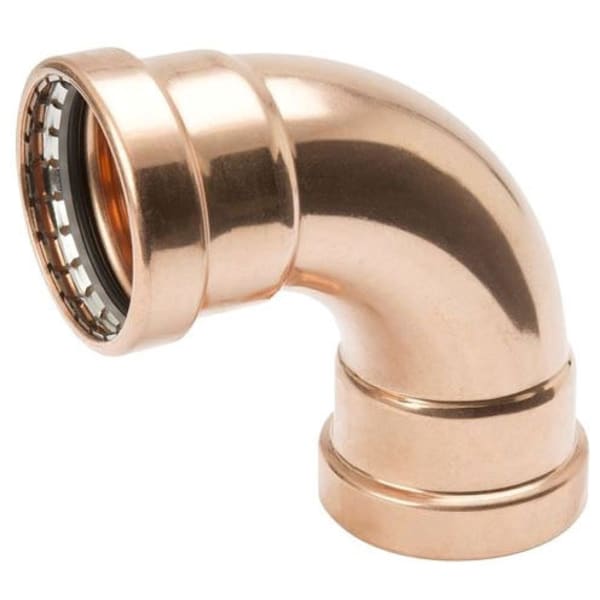

Mueller Streamline PF 02082 2-1/2" Copper Press Fittings - 90 Degree Long Turn Elbow P x P

Mueller Streamline PF 02082 is a 2-1/2" 90 degree long turn elbow for copper tube, P x P (P = press socket).

A long-turn 90° elbow changes direction with a wider radius, which is easier on flow.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 02082
• Size: 2-1/2"
• Type: 90 Degree Long Turn Elbow
• Connections: P x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768399155
• Shipping Weight: 2.09 lb
• Dimensions: 6.28 x 6.28 x 3.18 in (L x W x H)
• Category: Press Fittings - Copper (CTS)
