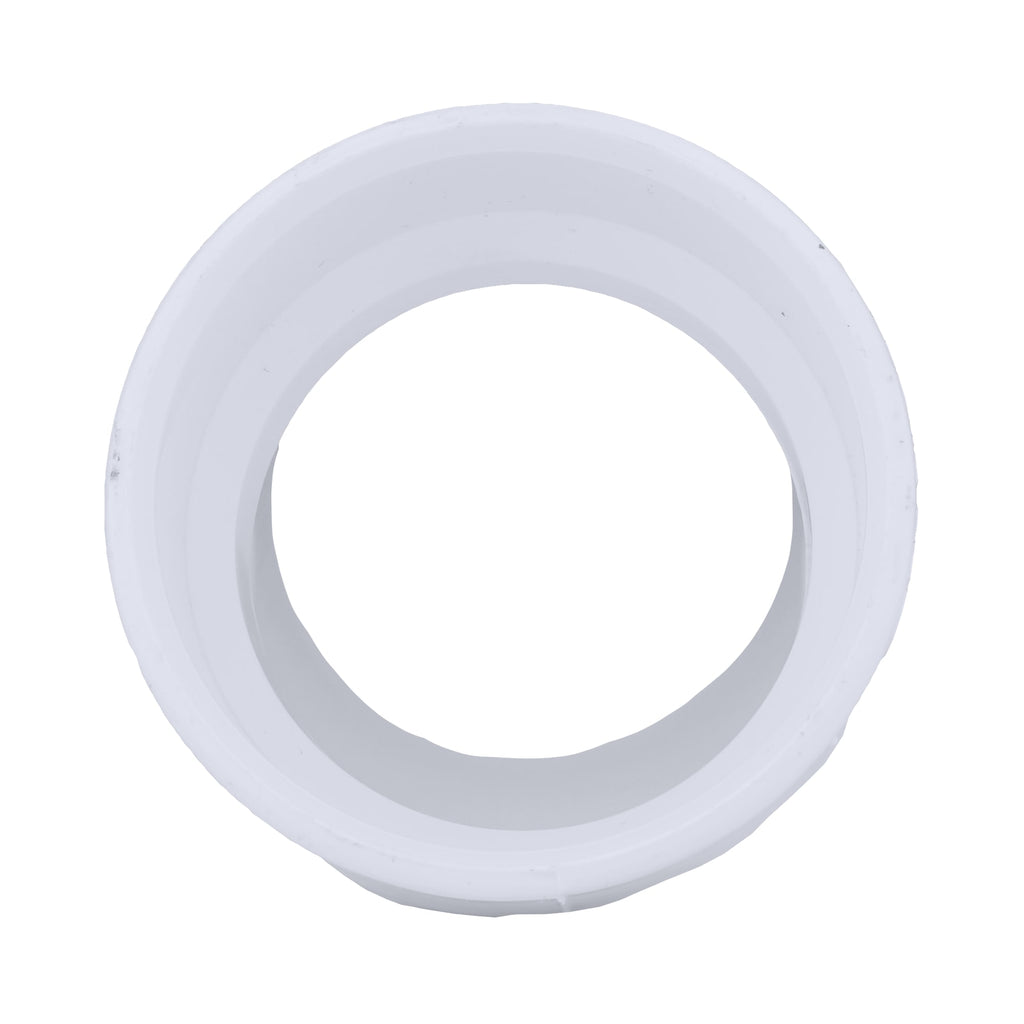

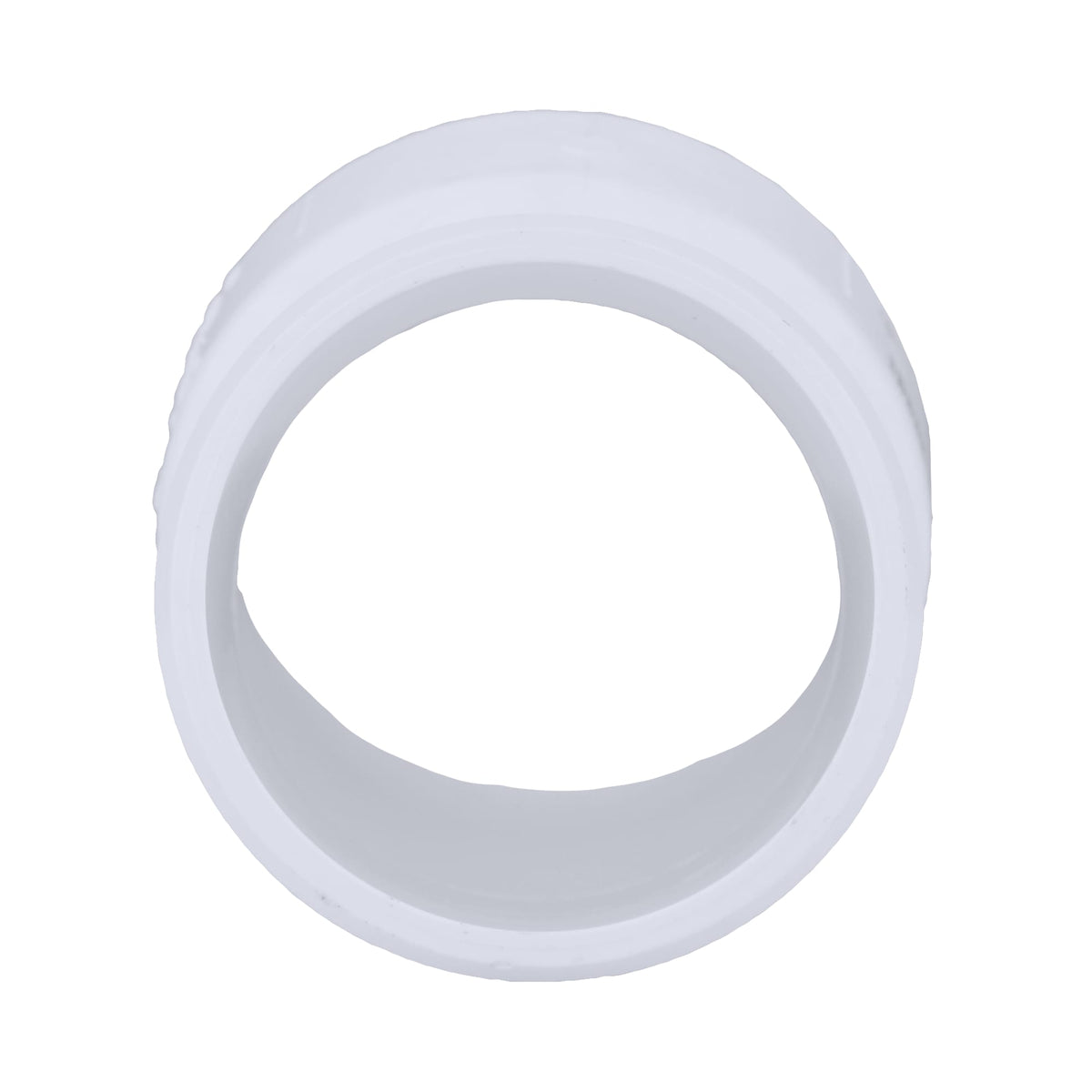

Charlotte Pipe PVC-00326-0800 2" PVC DWV 22-1/2° Street Elbow - H x Spigot

Charlotte Pipe PVC-00326-0800 is a 2" PVC DWV 22-1/2° street elbow, H x Spigot (H = hub (socket that takes the pipe); Spigot = spigot (pipe-size end that fits into a hub or socket)).

A street elbow has one fitting-size end, so it goes straight into another fitting without a separate piece of tube, which makes the turn tighter and saves a joint.

Charlotte PVC DWV fittings are made to ASTM D2665 with drainage patterns to ASTM D3311, and listed to NSF 14. They are for non-pressure sanitary drain, waste and vent, sewer and storm drainage at up to 140°F, joined to Schedule 40 PVC or cellular core pipe with primer and PVC solvent cement. DWV fittings have no pressure rating and do not belong on a water supply line.

Specifications

• Brand: Charlotte Pipe
• Manufacturer Part #: PVC-00326-0800
• System: PVC DWV
• Size: 2"
• Type: 22-1/2° Street Elbow
• Connections: H x Spigot
• Material: PVC, Schedule 40 DWV
• Standards: ASTM D2665, D3311, NSF 14
• Temperature: 140°F max, non-pressure
• Joining: Primer (ASTM F656) and PVC solvent cement (ASTM D2564)
• UPC: 611942034222
• Shipping Weight: 0.203 lb
• Category: PVC DWV Fittings
