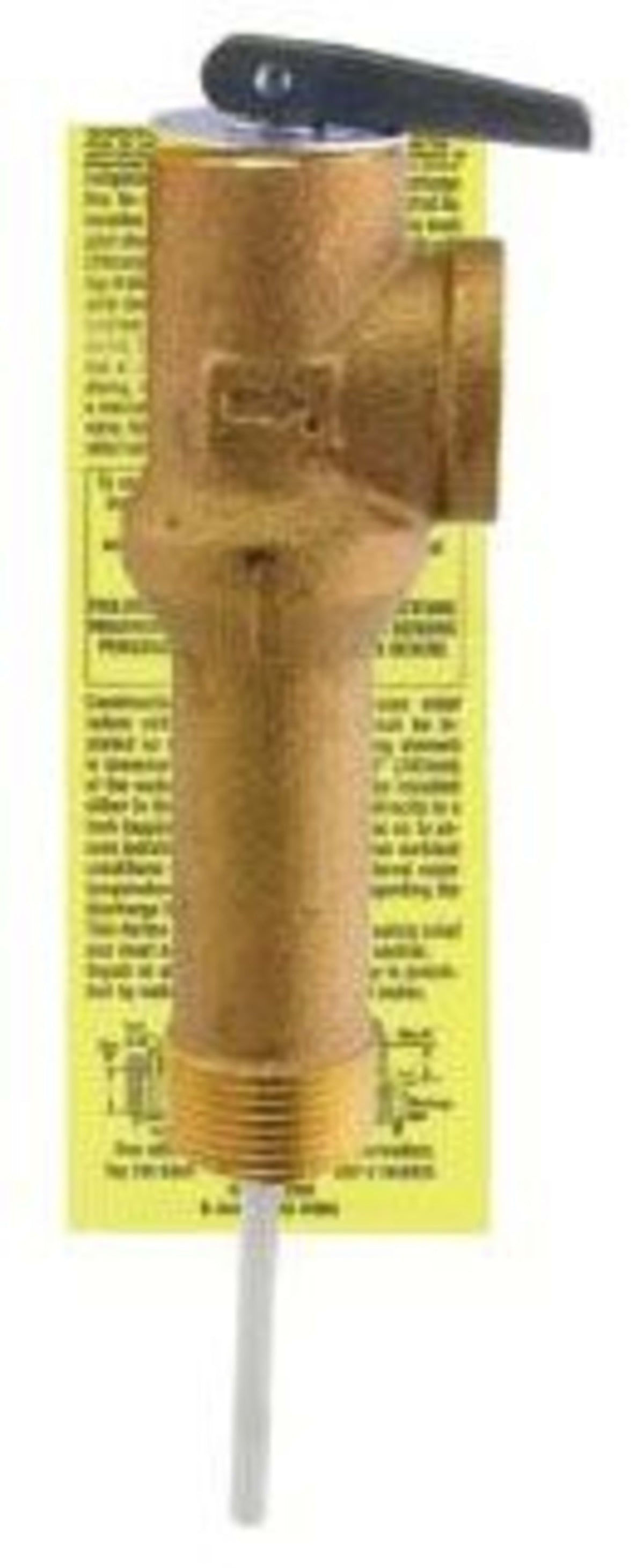

Rheem SP12575B 3/4" NPT x 3/4" NPT, 7-1/4" L, 2" Sensor, 105000 BTU/Hr, 150 PSI, Temperature and Pressure Relief Valve for Water Heater

Rheem SP12575B is the Rheem Manufacturing 3/4" NPT x 3/4" NPT, 7-1/4" L, 2" Sensor, 105000 BTU/Hr, 150 PSI, Temperature and Pressure Relief Valve for Water Heater.

It is a temperature and pressure relief valve for water heaters. It opens to discharge water if tank temperature or pressure rises above its rating, protecting the tank and the people around it. Rheem parts are matched to specific heater models, so check the model and serial number on the rating plate to confirm the fit.

Match the connection size, probe length and BTU/hr rating to the heater. Install a full-size discharge line to an approved location, never cap or plug the outlet, and replace the valve if it drips constantly or has been operated with heavy scale.

Specifications

• Brand: Rheem Manufacturing
• Manufacturer Part #: SP12575B
• Pressure Rating: 150 PSI
• Relief Rating: 105000 BTU/Hr
• Size: 3/4"
• Connection: 3/4" NPT x 3/4" NPT
• UPC: 020352519210
• Category: T&P Valves

See also: Rheem Manufacturing, Relief Valves, Water Heating.
