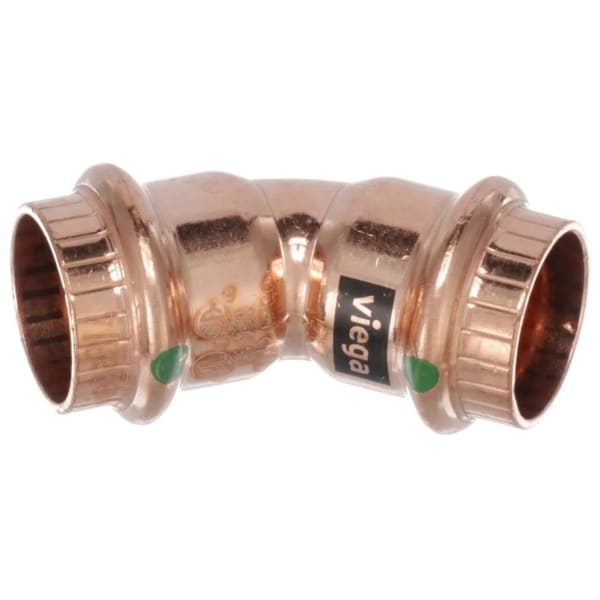

3/4" x 3/4" - (P-P) - 45 Deg Elbow, ProPress®
Viega

Viega 77023 3/4" x 3/4" - (P-P) - 45 Deg Elbow, ProPress®

Item #
VEGA-77023
Mfr. part #
77023
UPC
691514770239

Key specifications
  • Type5 - Elbow - 45°
  • Size3/4"
  • ConnectionPress
  • MaterialCopper
View all specifications
$9.15
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.35 lb
  • Box size: 1.25 × 2.51 × 1.87 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandViega
Manufacturer part #77023
Connection TypePress
MaterialCopper
Size3/4"
Type5 - Elbow - 45°
UPC691514770239

Viega 77023 is a 3/4" ProPress 45 deg elbow, P x P (P = press end for copper tube).

A 45° elbow makes a gentle change of direction; two of them offset a line around an obstacle.

Viega ProPress joins copper tube with a press tool and ProPress jaw: no flame, no solder and no hot-work permit. The EPDM sealing element is factory installed, and Viega's Smart Connect design lets an unpressed fitting show itself during the pressure test. ProPress is approved for hot and cold potable water, hydronic heating with glycol, chilled water, compressed air and non-medical gases.

Specifications

  • Brand: Viega
  • Manufacturer Part #: 77023
  • System: ProPress
  • Size: 3/4"
  • Type: 45 Deg Elbow
  • Connections: P x P
  • Material: Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
  • Sealing element: EPDM
  • Operating pressure: 300 psi max
  • Temperature: 0°F to 250°F
  • Listings: ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
  • Tube: ASTM B88 Type K, L or M copper
  • UPC: 691514770239
  • Category: Press Fittings - Copper (CTS)

See also: all ProPress fittings, press tools, press jaws, all Viega.

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$9.15
In stock
