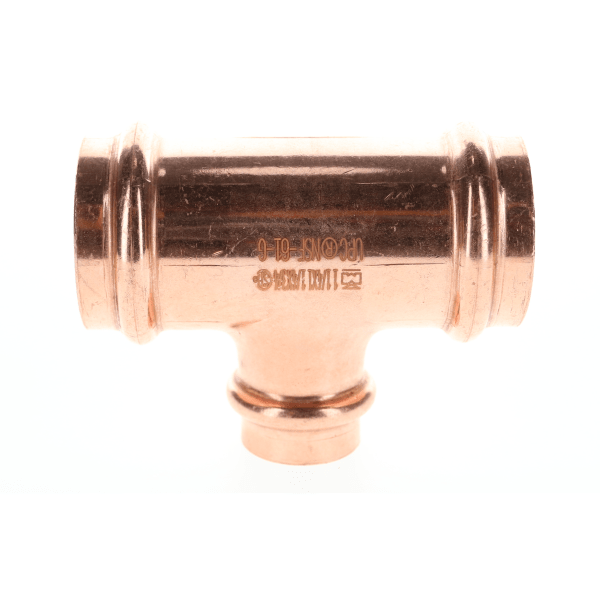

Mueller Streamline PF 04065 3/4" x 3/4" x 1" Copper Press Fittings - Tee P x P x P

Mueller Streamline PF 04065 is a 3/4" x 3/4" x 1" tee for copper tube, P x P x P (P = press socket).

A reducing tee: the first two figures are the run (3/4" and 3/4") and the last is the branch (1").

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 04065
• Size: 3/4" x 3/4" x 1"
• Type: Tee
• Connections: P x P x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768395188
• Shipping Weight: 0.346 lb
• Category: Press Fittings - Copper (CTS)

See also: all press fittings - copper (cts), press tools and jaws, tube cutters, all Mueller Streamline.
