Centrotherm 3" - 87 Degree Elbow Long Radius PolyPro SW

Item #: CTRO-ISELL0387
Mfr. part #: ISELL0387

Key specifications

Type87 Degree Elbow
Size3"
MaterialPolyPro SW

View all specifications

$29.45

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.6 lb
Box size: 7 × 6.9 × 3.7 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Centrotherm
Manufacturer part #	ISELL0387
Material	PolyPro SW
Size	3"
Type	87 Degree Elbow

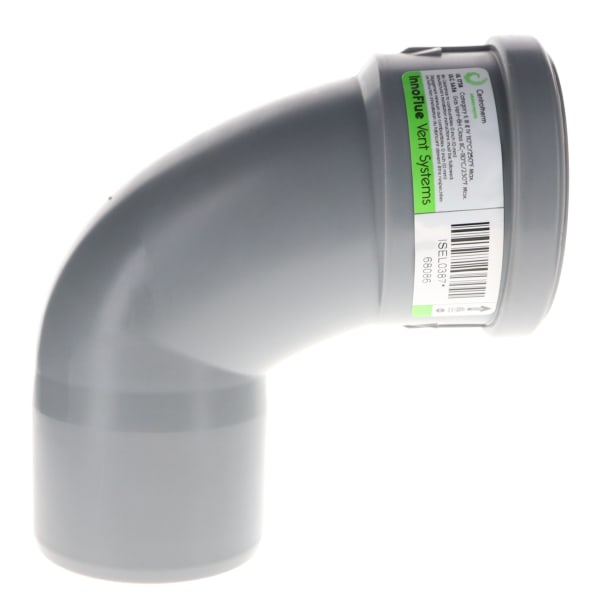

The Centrotherm ISELL0387 is a 3" 87° long radius elbow for the InnoFlue single wall polypropylene vent system. It changes the direction of an exhaust or combustion air run.

Key features

Factory-installed gasket in the female end; push-fit assembly with no glue, primer or solvent
For vent length calculations, Centrotherm deducts 5 ft for each 87° elbow (check the appliance manual first)
3" joints must be secured with a Connector Ring or Octo Clamp to meet UL 1738 / ULC-S636
Pre-formed fittings should not be cut

Specifications

Brand: Centrotherm
Manufacturer part number: ISELL0387
Diameter: 3"
Angle: 87°
Radius: Long radius
Material: Polypropylene, single wall
Connection: Push-fit, gasketed female end x male end
System: Centrotherm InnoFlue polypropylene vent system
Listing: ICC-ES evaluated to UL 1738 and ULC-S636 (InnoFlue system)
Maximum flue gas temperature: 230°F (110°C) per UL 1738 / ULC-S636

Venting must be installed by a qualified installer following Centrotherm's InnoFlue installation manual, the appliance manufacturer's instructions and local code. Do not mix InnoFlue with other manufacturers' vent products.
