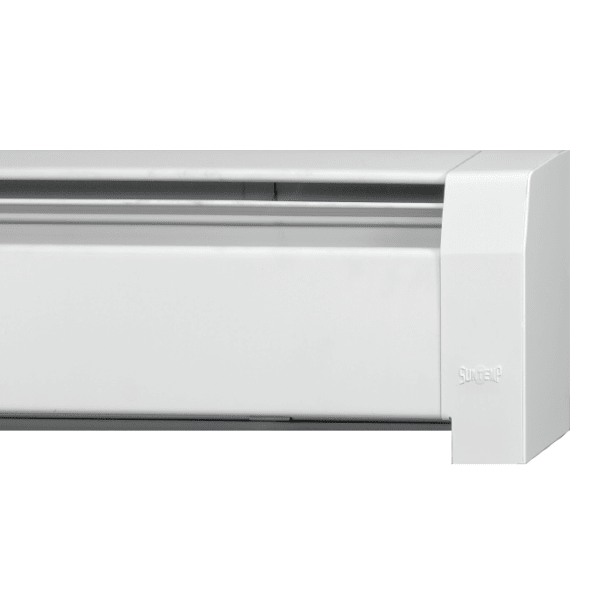

Suntemp SUS-3 3' Baseboard Heater Complete - 700 Series - 3/4" Element

The Suntemp SUS-3 is a complete 3' length of 700 Series (Imperial 700-A1) hydronic baseboard: enclosure plus 3/4" copper heating element. It is used on hot water heating systems as perimeter heat under windows and along outside walls.

Suntemp ratings include a 15% allowance for heating effect and are based on active length, which is total length less 4-3/4". The 4 GPM ratings apply only where at least that flow actually passes through the baseboard.

Key features

• Low 7-7/8" by narrow 2-13/16" enclosure with a satin-white baked finish
• Damper-louver adjusts from full open to closed by touch; front outlet keeps air off the wall to prevent streaking
• Locking front panel latches to the support brackets
• Concealed return tube hanger tucks a return line inside the enclosure
• Copper tube element with deep-drawn fin collars and channeled fins (36% more fin surface than a flat fin of the same length, per Suntemp)
• Polypropylene expansion cradles isolate the element so expansion does not cause ticking noises

Specifications

• Brand: Suntemp
• Manufacturer part number: SUS-3
• Unit length: 3'
• Element: 3/4" copper tube with expanded end (no coupling needed between elements)
• Enclosure height: 7-7/8"
• Enclosure depth: 2-13/16"
• Finish: Satin-white baked finish
• Rated output: 3/4" element at 1 GPM (500 lb/hr): 370 BTU/h per foot at 150°F, 500 at 170°F, 560 at 180°F, 620 at 190°F, 690 at 200°F average water temperature
• Approximate unit output: about 1,460 BTU/h at 180°F, 1 GPM (31.25" active length x 560 BTU/h per foot)

Compatibility

• Suntemp 700 Series tab-on accessories: SEL-3 / SER-3 3" end caps, SWL-3 / SWR-3 wall joiners, SIC / SOC corners, SPJ panel joiners
