Centrotherm 3" Single Wall Quick Kit Roof Termination

Item #: CTRO-ISQKR03
Mfr. part #: ISQKR03

Key specifications

TypeTermination Kit
Size3"
MaterialPolyPro SW

View all specifications

$766.38

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 45.8 lb
Box size: 50 × 23 × 13 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Centrotherm
Manufacturer part #	ISQKR03
Material	PolyPro SW
Size	3"
Type	Termination Kit

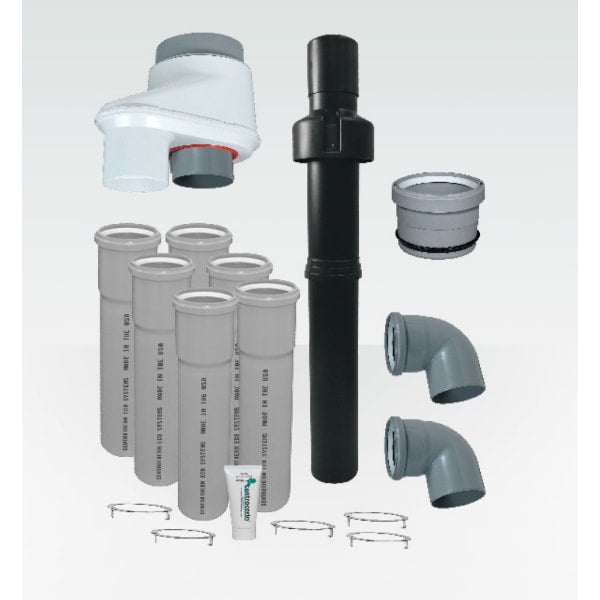

The Centrotherm ISQKR03 is a 3" InnoFlue single wall Quick Kit for a vertical (through-the-roof) termination of a polypropylene vent system.

Key features

Push-fit gasketed polypropylene components; no glue, primer or solvent
Centrotherm recommends terminating at least 3 ft above the roof line (verify with the local code authority)
Free-standing pipe more than 59" above the roof must be supported
3" joints must be secured with a Connector Ring or Octo Clamp

Specifications

Brand: Centrotherm
Manufacturer part number: ISQKR03
Diameter: 3"
Type: Roof termination kit
Material: Polypropylene, single wall
System: Centrotherm InnoFlue polypropylene vent system
Listing: ICC-ES evaluated to UL 1738 and ULC-S636 (InnoFlue system)
Maximum flue gas temperature: 230°F (110°C) per UL 1738 / ULC-S636

Venting must be installed by a qualified installer following Centrotherm's InnoFlue installation manual, the appliance manufacturer's instructions and local code. Do not mix InnoFlue with other manufacturers' vent products.
