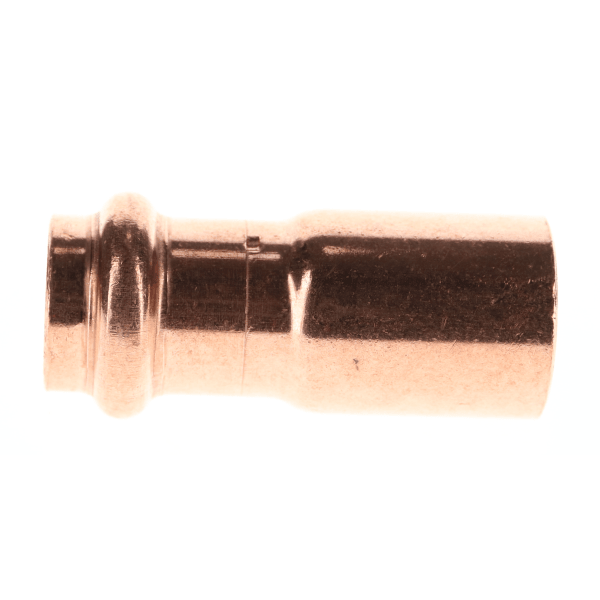

Mueller Streamline PF 01377 3" x 2" Copper Press Fittings - Fitting Reducer Ftg x P

Mueller Streamline PF 01377 is a 3" x 2" fitting reducer for copper tube, FTG x P (FTG = fitting-size end (slides into another fitting's socket), P = press socket).

A reducer steps the line down from the larger size to the smaller one.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 01377
• Size: 3" x 2"
• Type: Fitting Reducer
• Connections: FTG x P
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768398967
• Shipping Weight: 1.21 lb
• Category: Press Fittings - Copper (CTS)
