Centrotherm 3" x 35' Flex Chimney Kit

The Centrotherm IFCK0335 is a 3" x 35 ft InnoFlue Flex chimney kit. It is used to reline an existing masonry chimney with flexible polypropylene vent for a condensing gas appliance.

Key features

• Flexible liner navigates bends and offsets in the chimney
• No adhesives, solvents or primers
• Use the chimney only if no other appliance is or will be connected to it
• For 3" flex, no coupler is needed: the liner is cut at a rigid section that fits the base support

Specifications

• Brand: Centrotherm
• Manufacturer part number: IFCK0335
• Diameter: 3"
• Flex length: 35 ft
• Material: Flexible polypropylene
• System: Centrotherm InnoFlue polypropylene vent system
• Listing: ICC-ES evaluated to UL 1738 and ULC-S636 (InnoFlue system)
• Maximum flue gas temperature: 230°F (110°C) per UL 1738 / ULC-S636

What's included

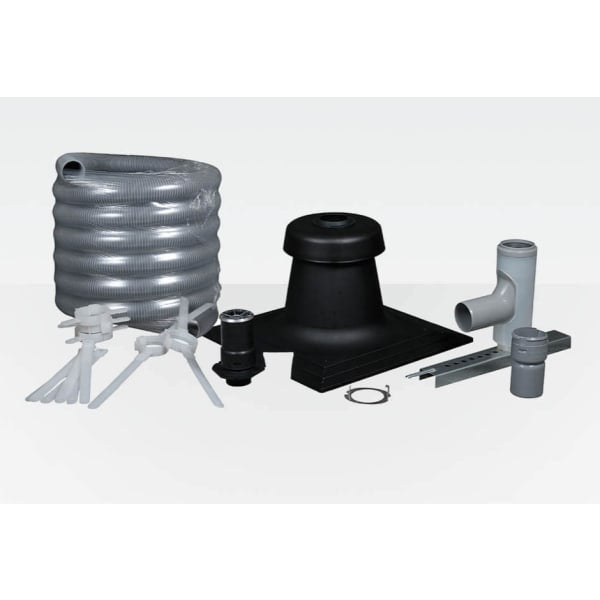

Centrotherm lists the chimney kit as a flexible liner with chimney termination, base support, spacers, connector rings and installation lubricant.

Venting must be installed by a qualified installer following Centrotherm's InnoFlue installation manual, the appliance manufacturer's instructions and local code. Do not mix InnoFlue with other manufacturers' vent products.
