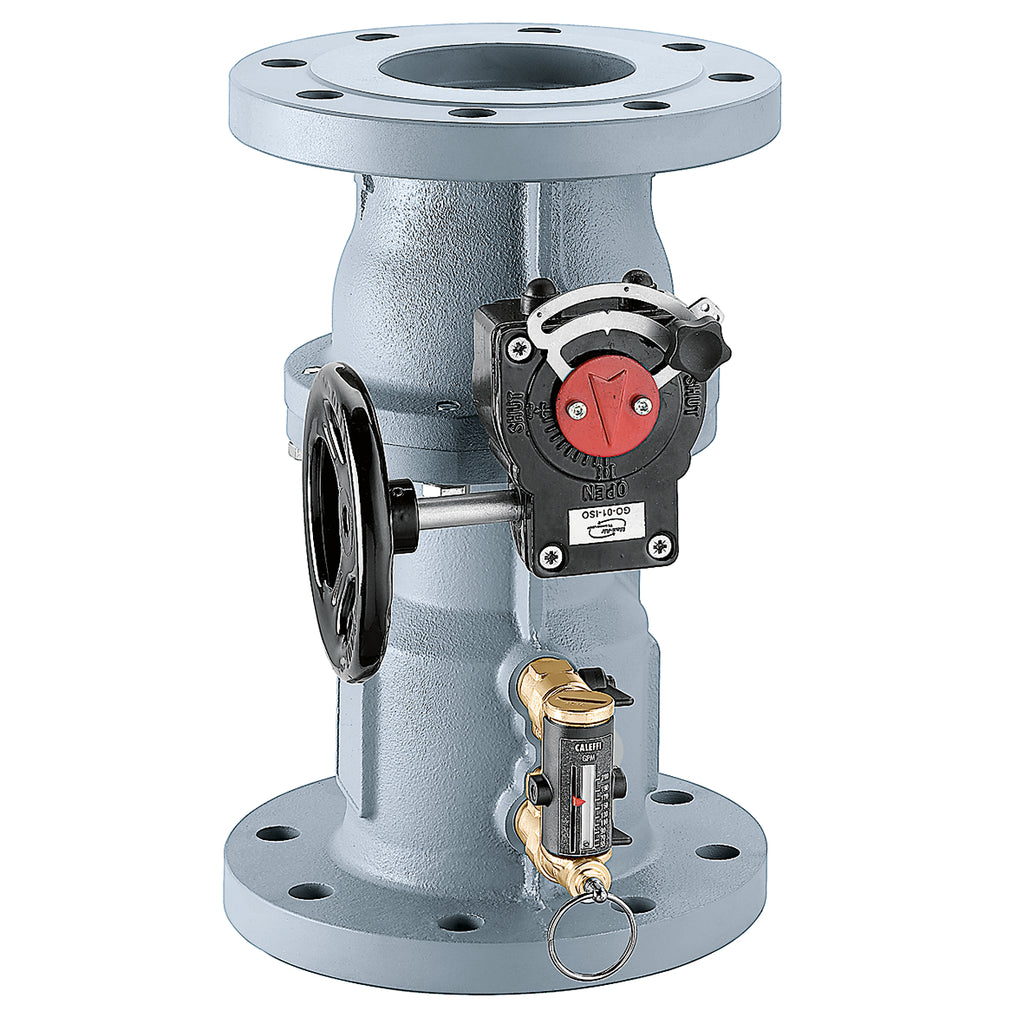

The Caleffi 132080A is a QuickSetter balancing valve with an integral flow meter, 3" flanged connections and a flow range of 38 to 148 GPM. It lets you read and set the flow rate through a hydronic circuit directly at the valve.
QuickSetter valves combine a manual balancing valve and a flow meter in one body, so a branch, zone or terminal unit can be balanced to its design flow without separate differential pressure instruments. They are used on hydronic heating and chilled water systems. This 3" model has a flow capacity of 164 Cv.
Before ordering: choose the valve by design flow rate as well as pipe size. This model reads 38 to 148 GPM; if your circuit flow falls outside that range, select another size or flow range in the series. Confirm that the flange size and pattern match your piping.
Specifications
-
Brand: Caleffi
-
Manufacturer Part #: 132080A
-
Series: QuickSetter
-
Type: Balancing valve with flow meter
-
Size: 3"
-
Connection: Flanged x flanged
-
Flow Range: 38 - 148 GPM
-
Flow Capacity (Cv): 164
-
UPC: 8016615571714
-
Category: Balancing Valves
