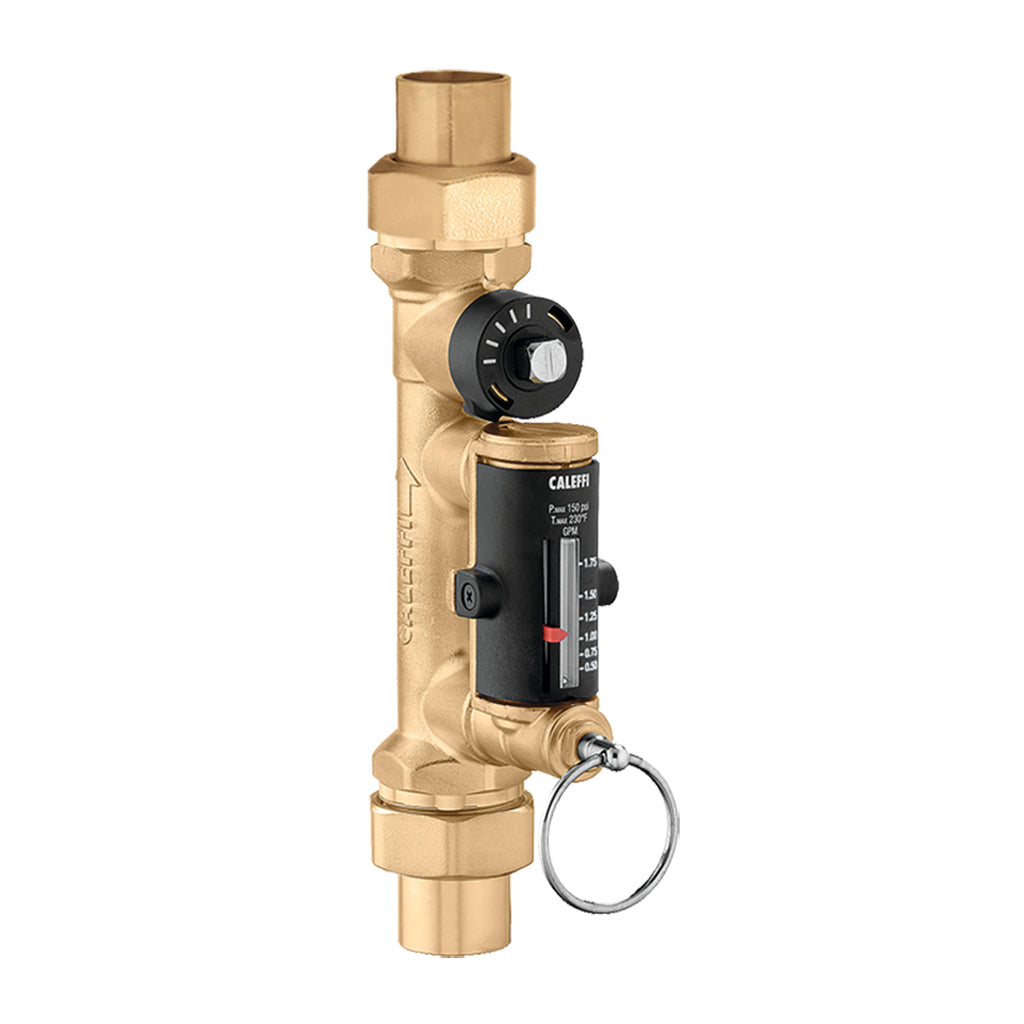

Caleffi 132439AFC QuickSetter+ Balancing Valve with Flow Meter, 1/2" Union Sweat, 0.5-1.75 GPM, 1 Cv, Low Lead

The Caleffi 132439AFC is a QuickSetter+ balancing valve with an integral flow meter, 1/2" union sweat connections and a flow range of 0.5 to 1.75 GPM. It lets you read and set the flow rate through a hydronic circuit directly at the valve.

QuickSetter+ valves combine a manual balancing valve and a flow meter in one body, so a branch, zone or terminal unit can be balanced to its design flow without separate differential pressure instruments. They are used on hydronic heating and chilled water systems. This lead-free model has a flow capacity of 1 Cv, a maximum pressure of 150 psi and a temperature range of 14°F to 230°F.

Before ordering: choose the valve by design flow rate as well as pipe size. This model reads 0.5 to 1.75 GPM; if your circuit flow falls outside that range, select another size or flow range in the series.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 132439AFC
• Series: QuickSetter+
• Type: Balancing valve with flow meter
• Size: 1/2"
• Connection: Union sweat
• Flow Range: 0.5 - 1.75 GPM
• Flow Capacity (Cv): 1
• Max Pressure: 150 psi
• Temperature Range: 14°F - 230°F
• Lead Free: Yes
• UPC: 8016615472233
• Category: Balancing Valves

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Technical Bulletin (PDF)
