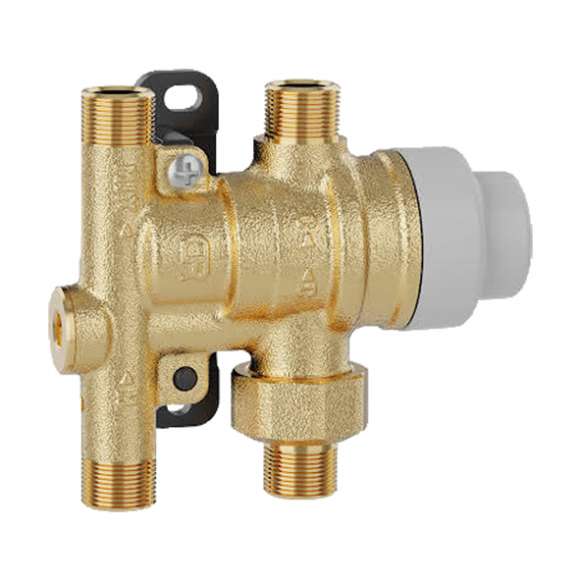

Caleffi 521201A SinkMixer Anti-Scald Thermostatic Mixing Valve 3/8" Compression ASSE 1070 Lead Free

The Caleffi 521201A SinkMixer is a lead-free, point-of-use thermostatic mixing valve with 3/8" compression connections. It blends hot and cold water to deliver tempered water to a sink faucet and help prevent scalding.

SinkMixer installs under a lavatory or kitchen sink, between the supply stops and the faucet. It uses a 4-way body pattern, is certified to ASSE 1070 for point-of-use scald protection, and has a brass body with a flow capacity of 0.52 Cv. Maximum rated pressure is 150 psi, and the listed maximum temperature is 120°F.

Before ordering, confirm 3/8" compression connections fit your supply stops and faucet risers. Check the installation manual for the fittings needed for your setup.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 521201A
• Series: SinkMixer
• Type: Point-of-Use Thermostatic Mixing Valve
• Body Pattern: 4-Way
• Size: 3/8"
• Connection: Compression x compression
• Material: Brass, lead free
• Flow Capacity (Cv): 0.52
• Max Pressure: 150 psi
• Max Temperature: 120°F
• Standards: ASSE 1070
• UPC: 8016615624779
• Category: Mixing Valve - Point-of-Use

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Technical Bulletin (PDF)
