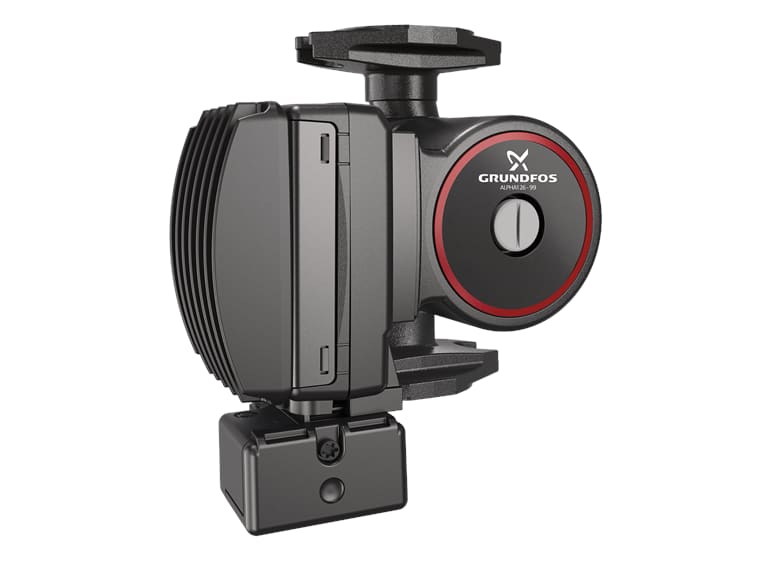

Grundfos 99490916 ALPHA2 26-99 Variable Speed ECM Circulator with Check Valve, Cast Iron, Flanged, 115V

The Grundfos 99490916 is an ALPHA2 26-99 variable speed circulator with an electronically commutated (ECM) motor, a flanged cast iron body and a built-in non-return (check) valve, for hydronic heating systems.

ALPHA2 circulators adjust speed to system demand and include the AUTOADAPT setting, which selects the pump curve automatically, along with proportional-pressure, constant-pressure and constant-curve modes. The 26-99 size reaches about 27.5 GPM and a maximum head of 42 ft. The built-in check valve helps prevent reverse flow and gravity circulation through the zone.

Before ordering: the pump runs on 115V, single phase, with flanged connections. Make sure you have a matching 2-bolt flange set for your pipe size.

Specifications

• Brand: Grundfos
• Manufacturer Part #: 99490916
• Series: ALPHA2
• Model: ALPHA2 26-99
• Type: Variable speed ECM circulator
• Body Material: Cast Iron
• Connection: Flanged x flanged
• Max Flow: 27.5 GPM
• Max Head: 42 ft
• Features: Built-in non-return (check) valve
• Voltage: 115V, 1 phase, 60 Hz
• Amperage: 1.7 A
• Wattage: 125 W
• Application: Heating
• UPC: 5713829959309
• Category: Variable Speed Circulators

Documents

• Product Brochure (PDF)
• Installation & Operation Manual (PDF)
• Specification Sheet (PDF)
