Grundfos 98126823 MAGNA1 32-100 F Variable Speed ECM Circulator, Cast Iron, Flanged, 115-230V

Roll over image to zoom in Click on image to zoom

Grundfos 98126823 MAGNA1 32-100 F Variable Speed ECM Circulator, Cast Iron, Flanged, 115-230V

Name: Grundfos 98126823 MAGNA1 32-100 F Variable Speed ECM Circulator, Cast Iron, Flanged, 115-230V
Brand: Grundfos
SKU: GRUN-98126823
Price: 1683.99 USD
Availability: InStock

GrundfosSKU: GRUN-98126823

Price:

$1,683.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Pricing a job? Send us your quote.

Contractors and homeowners: send the model number, quantity and ZIP. We reply in writing with a project price and shipping cost, usually within 1 business day.

Get a written quote Pros: open a trade account

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 12.1 lb
Box size: 9.85 × 9.15 × 7.05 in

Flow Rate Range	0 to 40 GPM
Material	Cast Iron
Type	Variable Speed Circulators

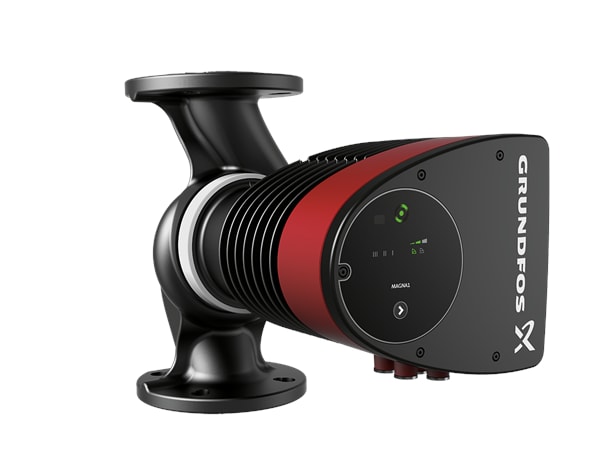

The Grundfos 98126823 is a MAGNA1 32-100 F electronically commutated (ECM) variable speed circulator with a cast iron pump housing and flanged connections, for commercial and large residential hydronic heating and cooling systems.

MAGNA1 is the Grundfos ECM circulator for straightforward commercial applications, with proportional-pressure, constant-pressure and constant-curve control modes selected at the pump. The cast iron housing is intended for closed-loop heating and chilled water systems. This 32-100 model is rated for a maximum head of 32.8 ft and flows up to about 40 GPM.

Before ordering: confirm your supply voltage (115/230V, single phase), the flange size and bolt pattern for the 32-100 model, and that matching flanges and gaskets are on hand.
