nVent CADDY Superfix 454 Standard Duty, 2.244"-2.402" (57-60.3 mm) OD, 2" Pipe
nVent Caddy

nVent CADDY 454010 Superfix 454 Standard Duty, 2.244"-2.402" (57-60.3 mm) OD, 2" Pipe

Item #
HGRI-454010
Mfr. part #
454010
UPC
782856590521

Key specifications
  • TypeCADDY Superfix
  • Size2"
  • MaterialSteel; EPDM-SBR Rubber
  • Load Rating180 lb (Static)
View all specifications
$7.88
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandnVent Caddy
Manufacturer part #454010
Load Rating180 lb (Static)
MaterialSteel; EPDM-SBR Rubber
Size2"
TypeCADDY Superfix
UPC782856590521

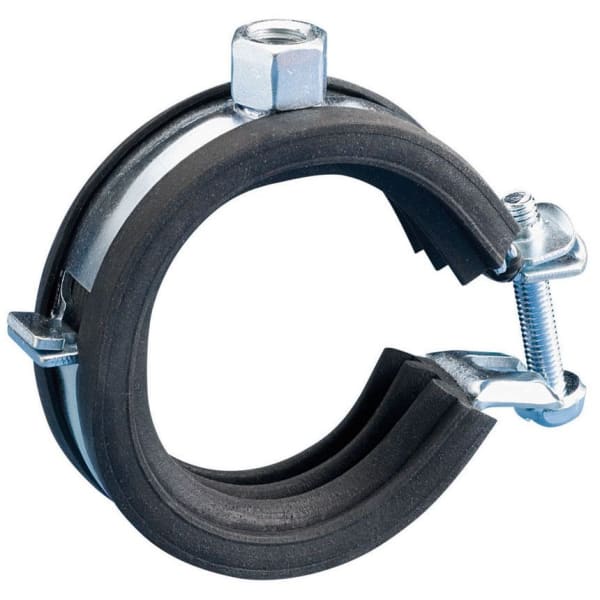

nVent Caddy 454010 is a Superfix 454 standard duty split ring hanger.

It is used to support steel pipe or copper tube from threaded rod in plumbing, heating and mechanical runs, and each size is listed for both a nominal steel pipe size and a copper tube size where they share an outside diameter range.

Match the hanger to the actual outside diameter of the line: this size is listed for 2.244"-2.402" (57-60.3 mm) OD, 2" pipe. Check the rod size required at the ceiling attachment before ordering. Hangers and supports from the nVent Caddy line are sized to work with standard threaded rod, strut channel and fastener hardware.

Specifications

  • Brand: nVent Caddy
  • Manufacturer Part #: 454010
  • Product: Superfix 454 Standard Duty
  • Outside Diameter: 2.244"-2.402" (57-60.3 mm)
  • Pipe Size: 2"
  • UPC: 782856590521
  • Category: Split Ring Hangers

See also: nVent Caddy, Split Ring Hangers, Pipe Supports, Hangers, Strut & Fasteners.

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
