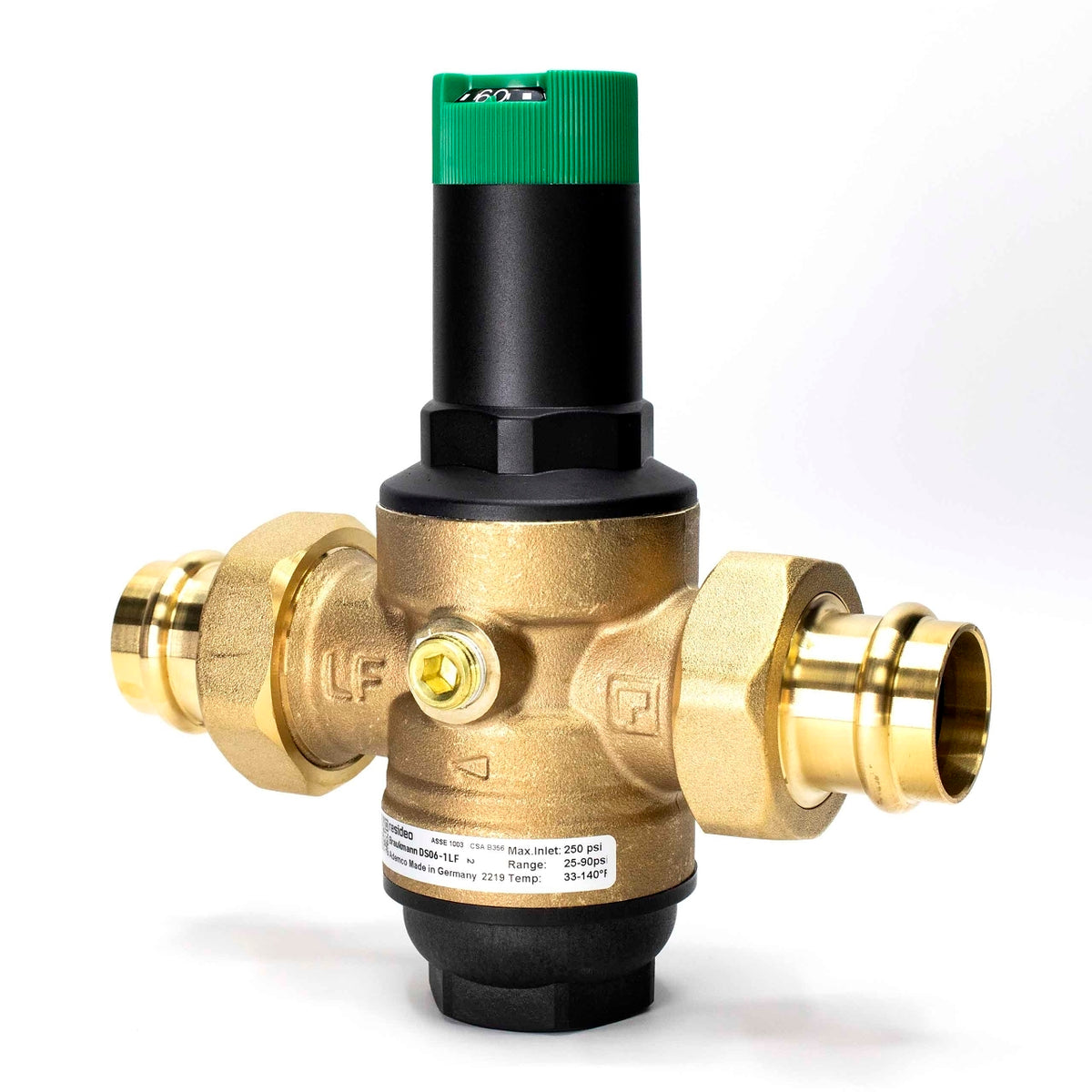

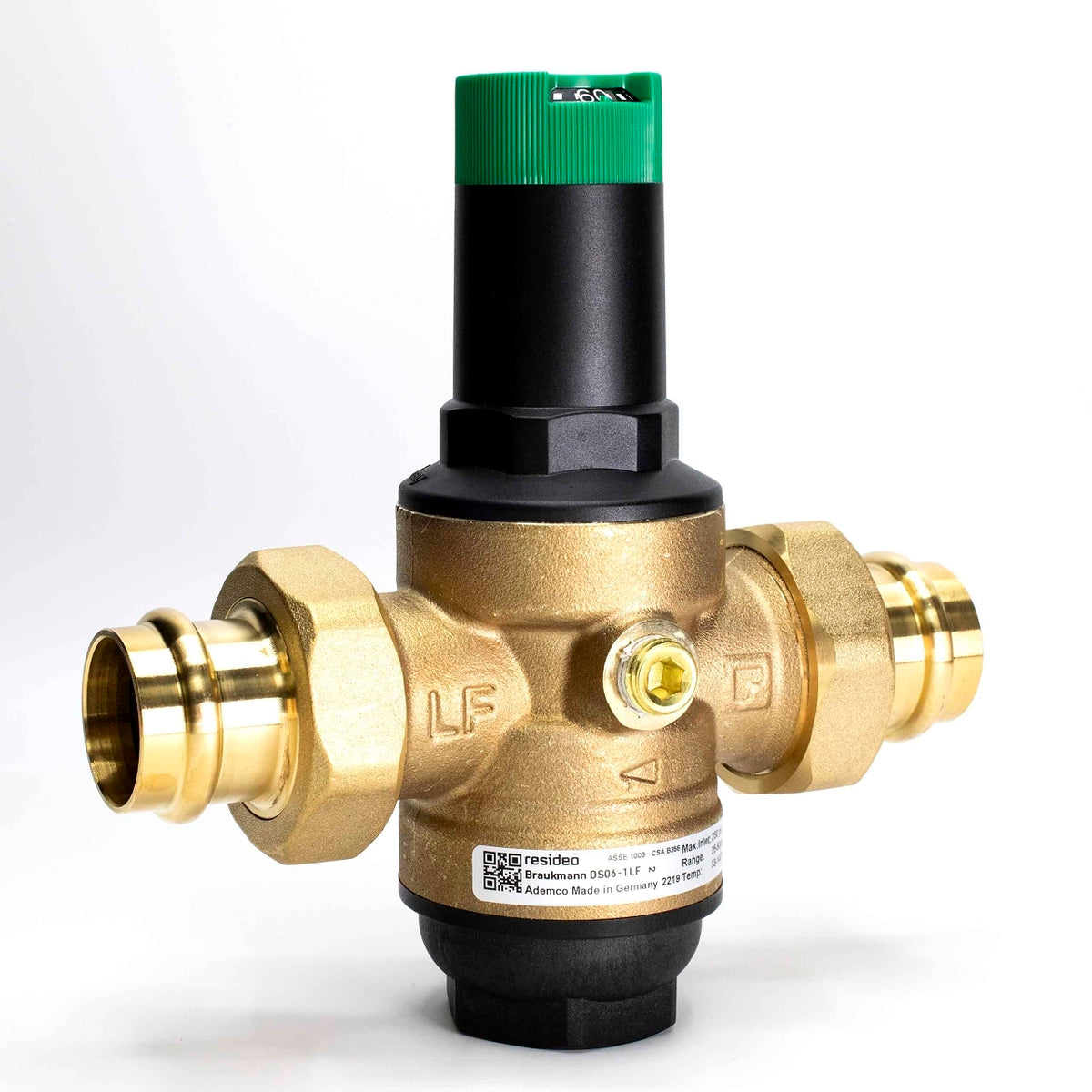

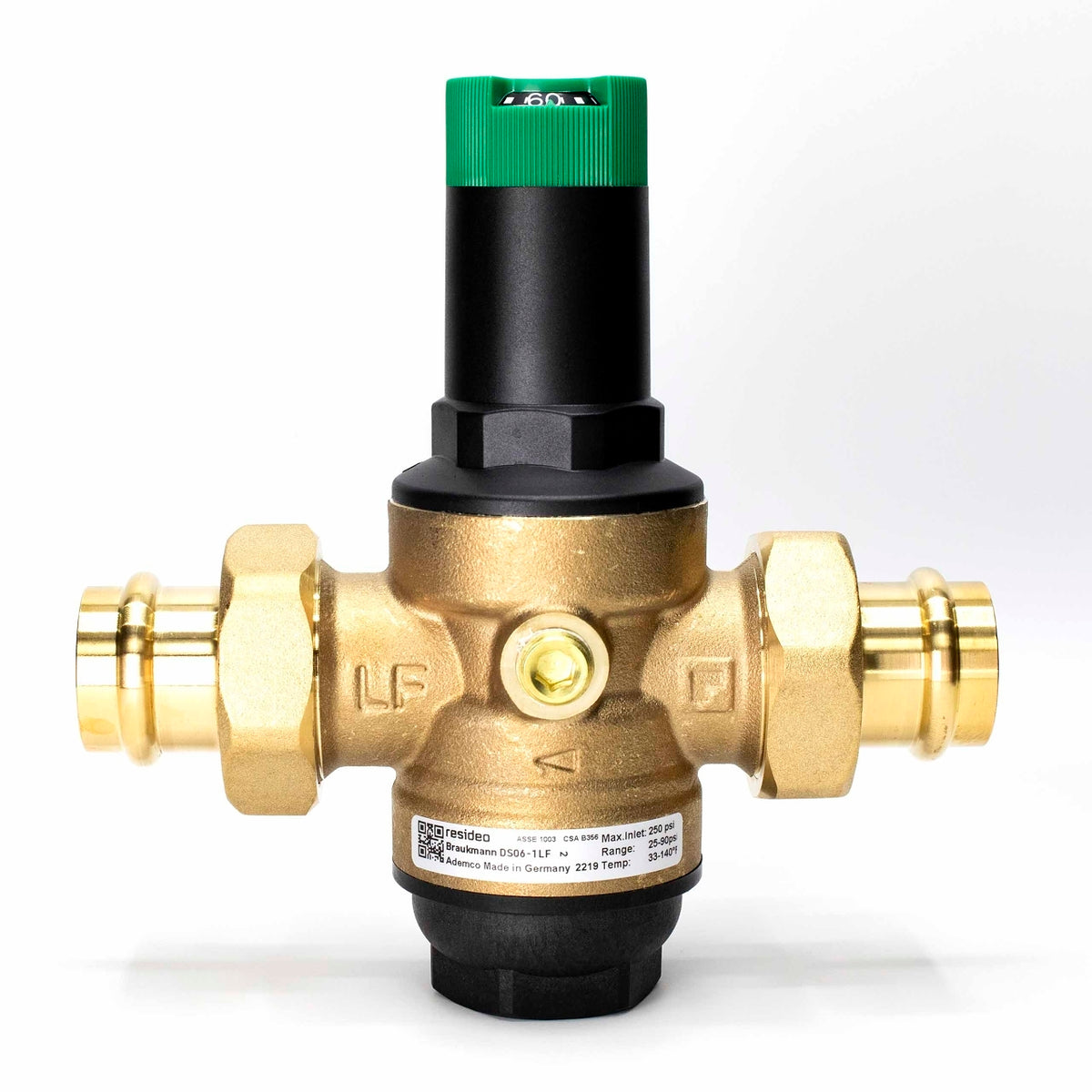

Resideo DS06-101-DUP-LF/U DS06 Dialset Lead Free Pressure Reducing Valve, 3/4 in Double Union Press

3/4 in DS06 Dialset lead free pressure reducing valve with double union press connections.

Features

• Dial Calibration ± 4 psi
• Balanced cartridge design allows for thermal expansion properties. Use expansion tanks and safety valves where applicable

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: DS06-101-DUP-LF/U
• Ambient Operating Temperature (Min): 33°F, 1 °C
• Ambient Operating Temperature (Max): 140°F, 60 °C
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance The wettable surfaces contain less than 0.25% of lead by weighted average
• Color: Black, Brass, Green
• Connection Size: 3/4 in
• Connection Type: Female NPT Threaded Inlet and Outlet Externally threaded for Unions
• Differential Pressure (Min): 14.5 psi, 99.97 kPa
• Domestic Hot Water: Valve
• Inlet Pressure (Max): 250 psi, 1723.69 kPa
• Lead Free: Yes
• Media Temperature (Min): 33°F, 1 °C
• Media Temperature (Max): 140°F, 60 °C
• Number of Connections: 2
• Outlet Pressure (Min): 25 psi, 172.37 kPa
• Outlet Pressure (Max): 90 psi, 620.53 kPa
• Preset Outlet Pressure: 60 psi, 414 kPa
• Pressure Reducing Ratio: 10:1 Maximum
• Product Height: 5.83 in, 148 mm
• Product Length: 6.42 in, 163 mm
• Replacement Parts: D06FA-1/2, ES06F-1/2A, SB06T-1/2, 0901246
• Valve Body Material: Lead-free ECO BRASS®
• Valve Body Pattern: Straight Through
• Warranty: 1 Year
• Application: Potable Water Pressure Regulation
• Valve Type: DialSet Pressure Regulating Valve
• DN Size: DN20
• Controlled Media: Potable Water
• Valve Diaphragm Material: Fabric-reinforced diaphragm
• Number of Gauge Taps: 1
• UPC: 194159014596
• Country of Origin: DE
• Category: Pressure Reducing Valves
