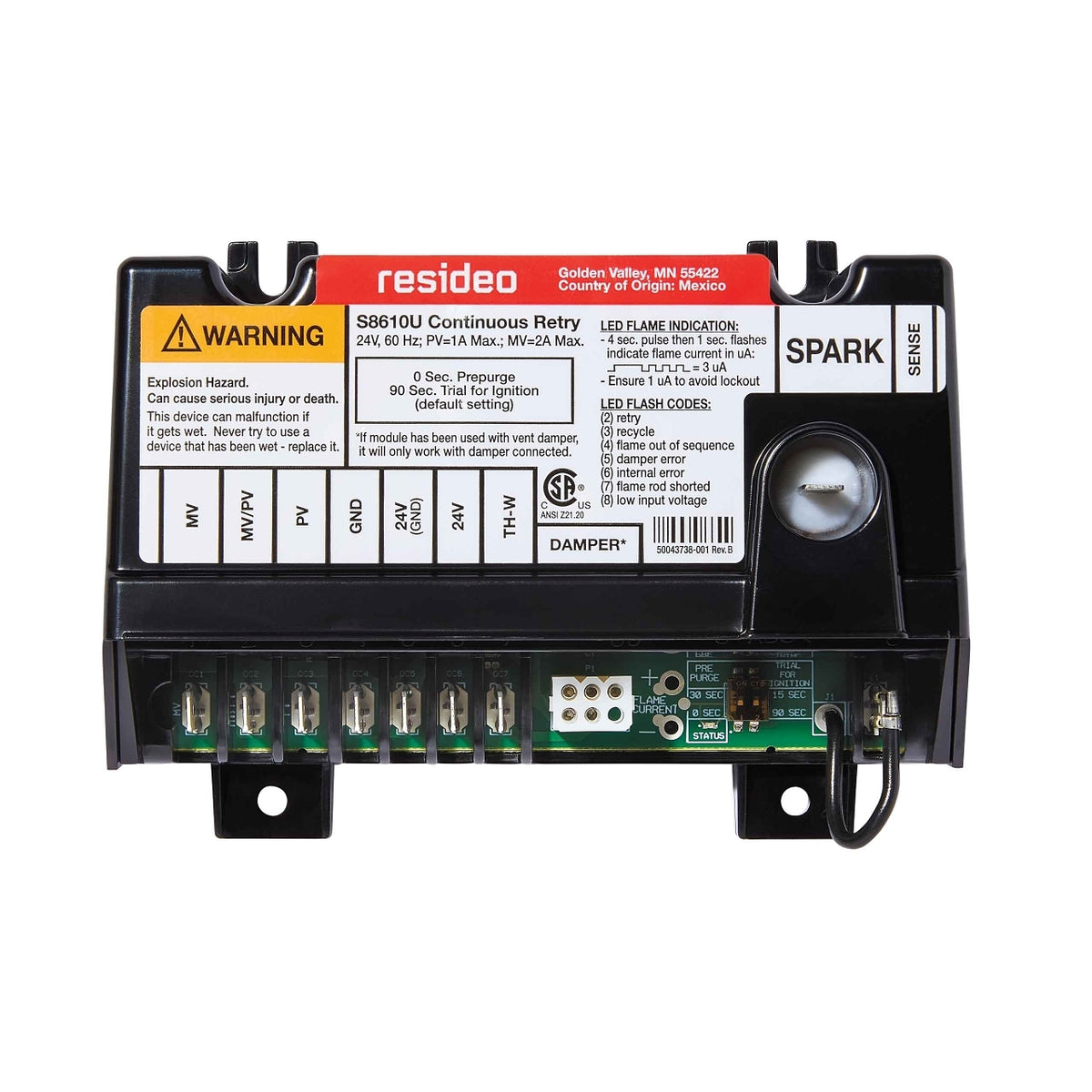

Resideo S8610U3009/U Universal Ignition Control, Continuous Retry, Natural or LP Gas

Ignition control with continuous retry and 100% shutoff, field-selectable operating sequence, LED diagnostics, and vent damper connector, for single- or dual-rod flame sensing on natural or LP gas.

Features

• For use with natural or LP gas
• For use in single rod or dual rod or remote sense applications
• Configurable to 30 sec
• Universal Pilot Ignition Module
• Intermittent, 24 V AC
• Replaces over 400 White-Rodgers
• Robertshaw and Honeywell intermittent pilot ignition modules
• Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances
• Provides 100 percent pilot gas shutoff if pilot fails to light after 6 min delay
• No prepurge

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: S8610U3009/U
• Application: Intermittent Pilot
• Approvals and Standards: CSA: Design Certified
• Type of Fuel: Natural Gas, LPG
• Ignition Type: Intermittent Pilot
• Ignition System Type: Intermittent Pilot
• Pilot Type: Intermittent
• Ignition Source: Internal high voltage spark generator
• Ignition Between Trail Time: 5 minute delay after failed trial for ignition.
• Ignition Sequence: Continuous Retry
• Ignition Trial Time: 15 or 90 seconds
• Ignitor Electrical Rating: 24 V AC
• Ignition Trials To Lockout: continuous retry
• Pre-Purge: Configurable to 30 sec or no prepurge
• Lockout Timing: Continuous Retry
• Flame Failure Response Time: 2 seconds maximum
• Flame Sense: Two Rod, Single Rod
• Early Spark Termination: Yes
• Auto Reset Delay Timing: 1 min
• Thermostat Anticipator Rating: 0.2 A plus pilot valve rating plus main valve rating
• Current Draw: 1 A Pilot Valve, 2 A Main Valve
• Power Consumption: 2 VA
• Load Relay Rating: 24 V AC (Amps) 1 A Pilot, 2 A Main at 165 °F, 1A Pilot, 1A Main at 175 °F
• Typical Ignition Hardware: Q345, Q3451, Q3452
• Igniter-Sensor Rod: Dual, Single
• Typical Gas Control: VR8204, VR8304
• Product Depth: 2.63 in, 67mm
• Maximum Valve Load: 1 A Pilot, 2A Main @ 165 °F, 1 A Pilot, 1A Main @ 175 °F
• Power Supply Frequency: 60 Hz
• Frequency: 60 Hz
• Operating Voltage: 24 V AC
• Color: Black
• Compatible With: Intermittent pilot warm air furnaces and heating appliances
• For Use With: Q345, Q348, Q362, Q373, Q381, Q179C, Q354, Q345, Q348, Q362, Q373, Q381
• Do Not Use With: Do Not Use the 24 V Terminal on S8610U
• Includes: Spark cable adapters to allow field replacement of both Resideo and competitive controls without replacing existing spark cable
• Product Height: 3.94 in, 100 mm
• Product Width: 5.44 in, 138 mm
• Ambient Operating Temperature (Max): 165 °F, 74 °C
• Ambient Operating Temperature (Min): -40 °F, -40 °C
• UPC: 085267268363
• Country of Origin: MX
• Category: Gas Ignition Components
