Description

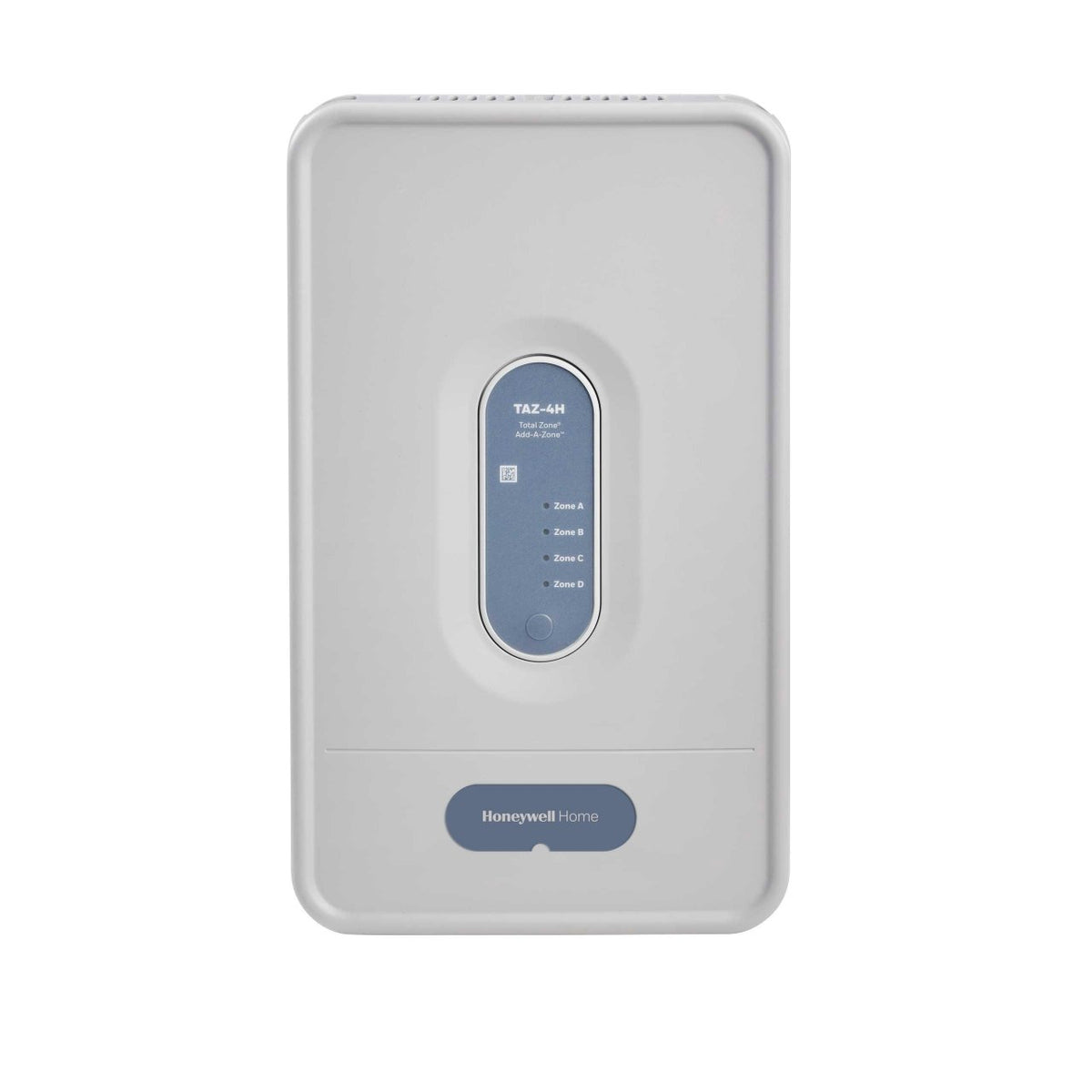

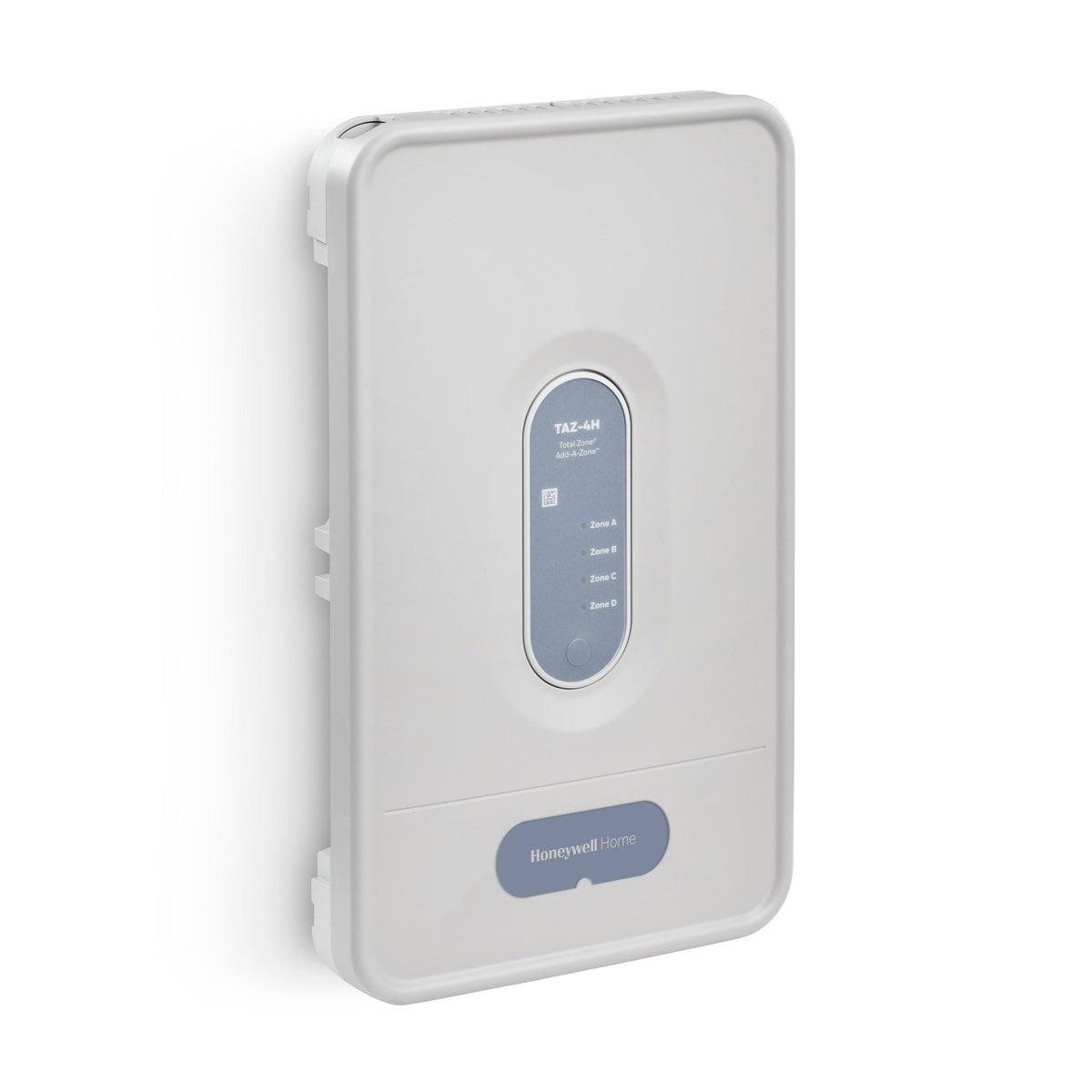

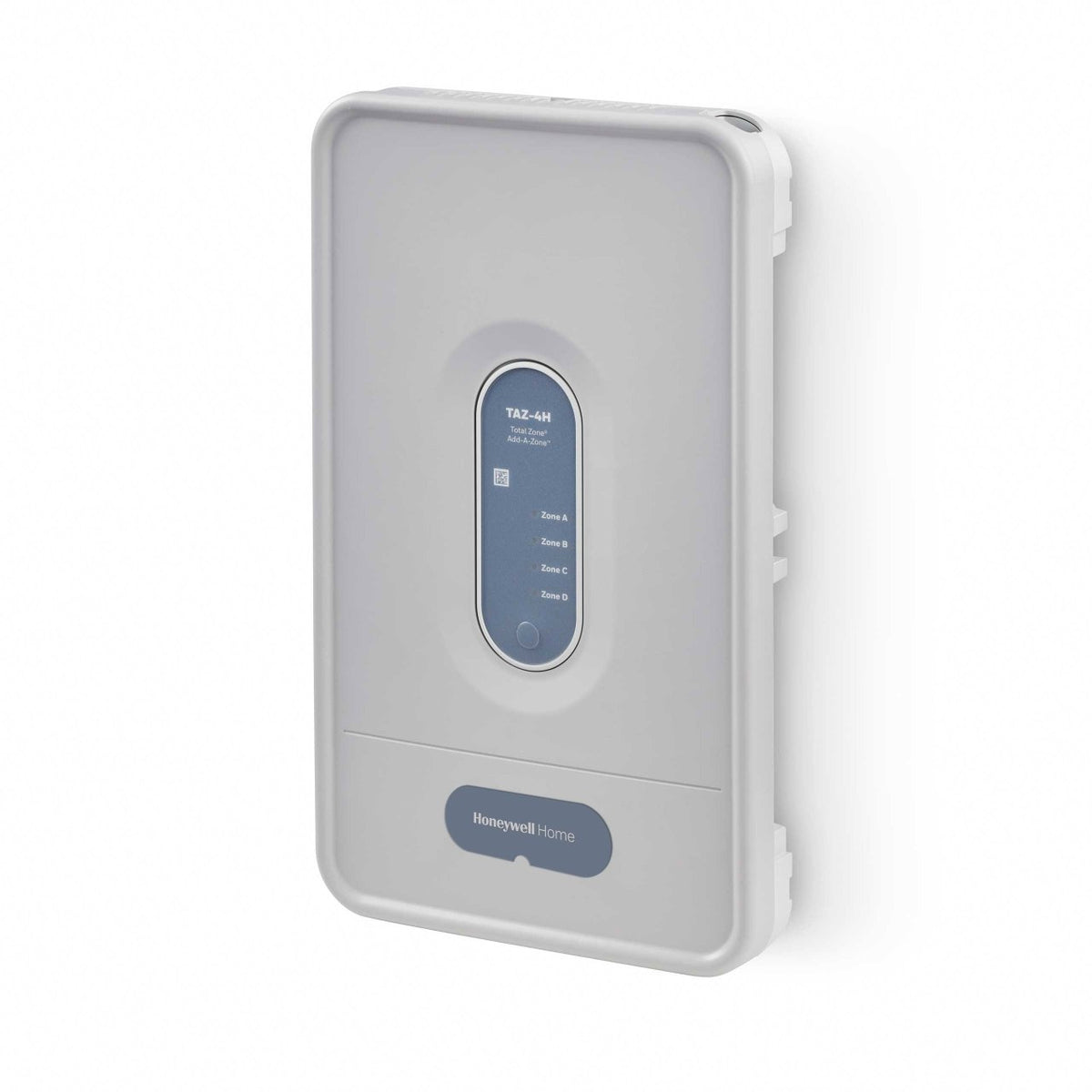

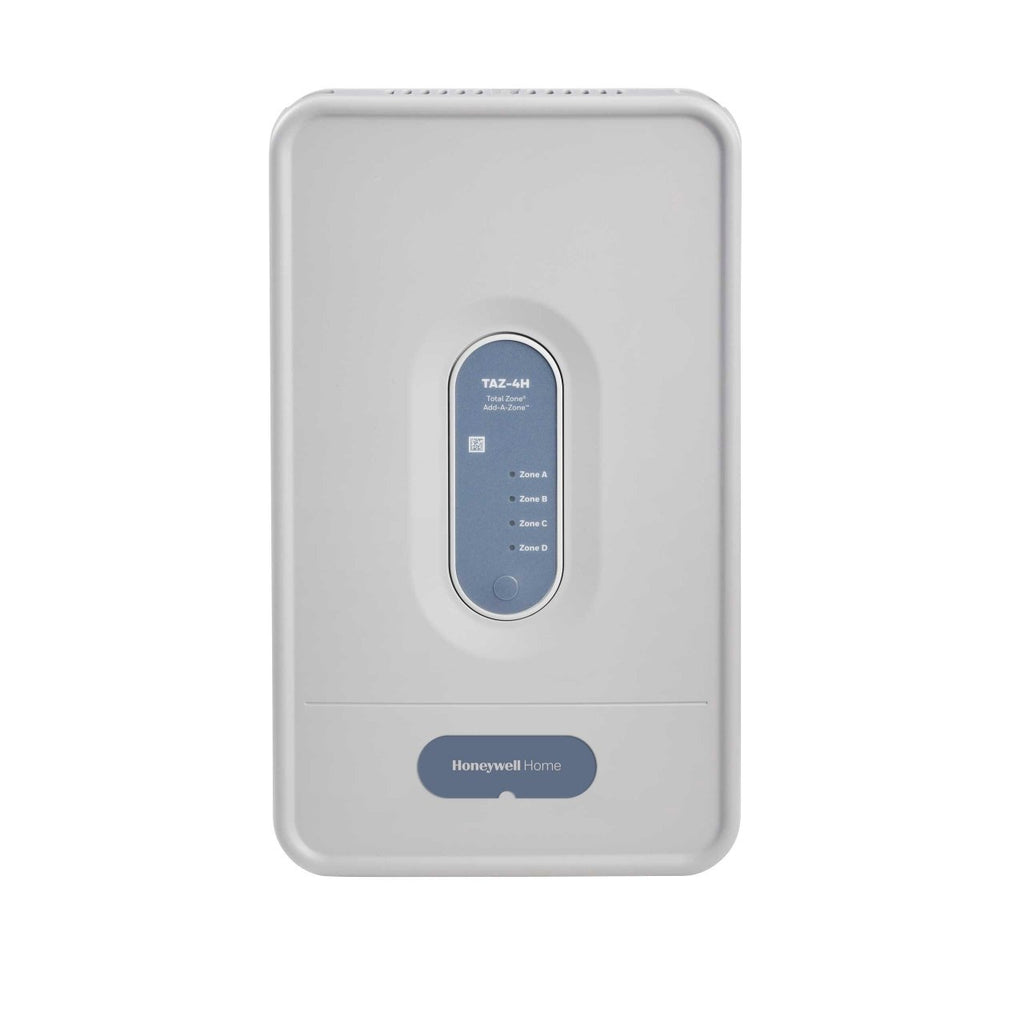

Add-a-zone panel that adds 4 zones.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TAZ-4H/U
- Application: Add up to 4 zones to an HZ432 panel for a maximum of 32 zones
- Approvals and Standards: Complies with FCC Class B, part 15 requirements
- Product Height: 13.42 in, 341 mm
- Product Length: 8 in, 203 mm
- Product Weight: 1.86 lb
- Color: Gray
- Checkout Procedure: Yes
- Display Type: LCD Screen
- LED Functions: Zones
- Number of Expanded Zones: 4 for each panel up to 32 zones
- Ambient Operating Temperature (Max): 165° F, 74° C
- Ambient Operating Temperature (Min): -40° F, -40°C
- Shipping and Storage Temperature (Min): -20° F, -29° C
- Shipping and Storage Temperature (Max): 150° F, 66° C
- Operating Voltage: 24 VAC
- Supply Voltage: 18-30 VAC, Transformer 40 VA or more

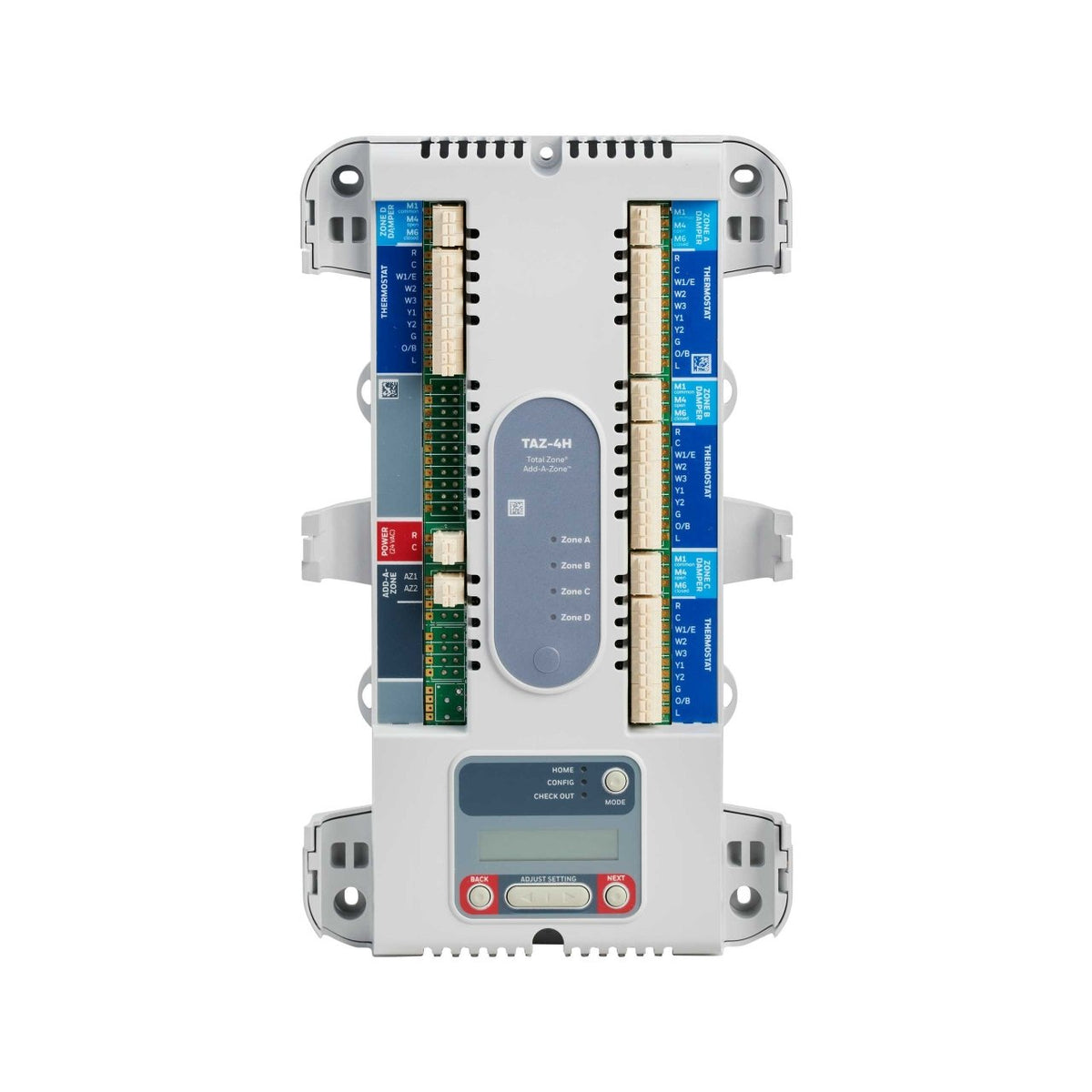

- Terminal Connection: Push in Terminals, 18 or 20 gauge solid
- Expandable: Yes
- UPC: 194159007543
- Country of Origin: MX
- Category: Forced Air Zone Panels
