Description

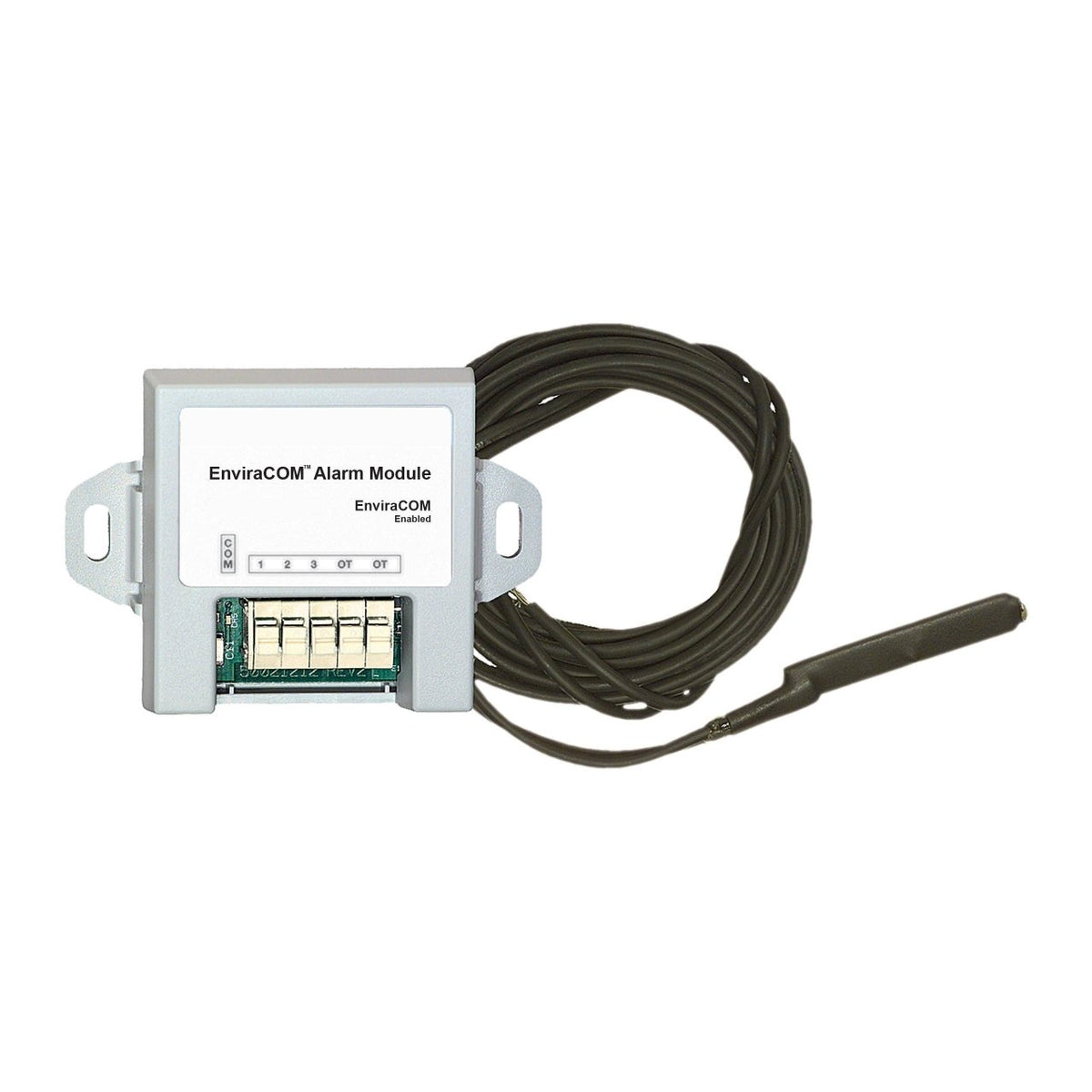

EnviraCOM alarm module.
Features
- Works with any alarm generating EnviraCOM enabled control
- Local LED alarm present indication
- Local LED communication active indication
- Screw terminals
- Simple low-voltage, 5-wire installation (3 EnviraCOM, 2 relay dry contacts)
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: W8735S3000/U
- For Use With: R7284/R7184 Oil Primary, L7224/L7248/L7103 Aquastat®, S9200U Universal IFC, WV4460 Power Vent Water Heater Control, S9360/S9361 Integrated water heater and boiler controls, W8735G EnviraCOM Gateway, W8735D EnviraCOM Telephone Access Module, R7910 SOLA Control, W8735S1000 Outdoor Reset Module, W8735S1008 Domestic Hot Water Module, W8735S1016 Indoor Temperature Module, W8735S2000 Flood Module Kit, W8735S2008 Sump Pump Module Kit
- Supply Voltage: 24 Vac
- Power Supply Frequency: 60 Hz
- Interface Connection: Bus
- Interface Type: EnviraCom
- Number of LEDs: 2
- EnviraCOM: Yes
- RedLINK: Yes
- Operating Relative Humidity (Max): 95% Non-condensing
- Operating Relative Humidity (Min): 0% Non-condensing
- Warranty: 1 Year
- Product Height: 2.14 in, 61 mm
- Product Length: 3.39 in, 86 mm
- Product Weight: 0.2 lb
- Product Width: 0.92 in
- UPC: 085267902229
- Country of Origin: MX
- Category: Controls, Switches & Sensors
