| Connection Size | 3/4" |
| Connection Type | FIP x PTC |
| Type | 90° Elbow (FIP) |
Description

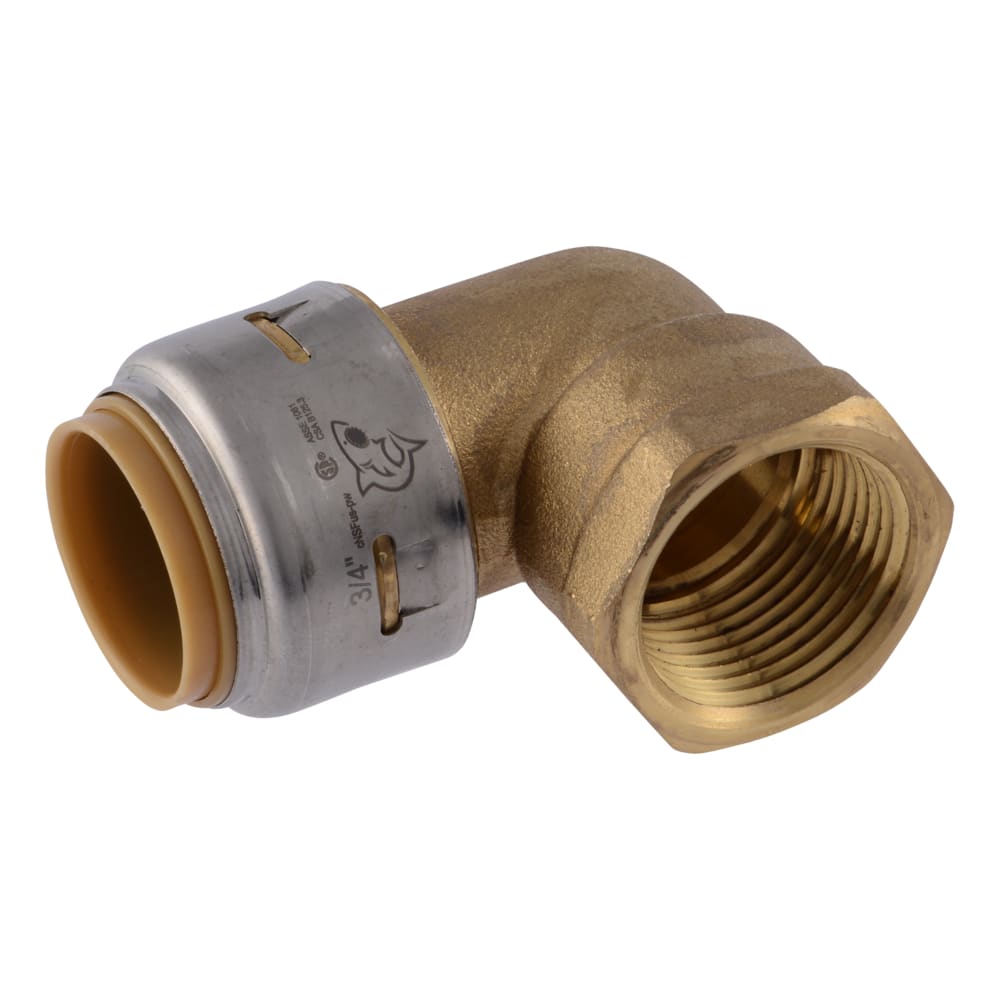

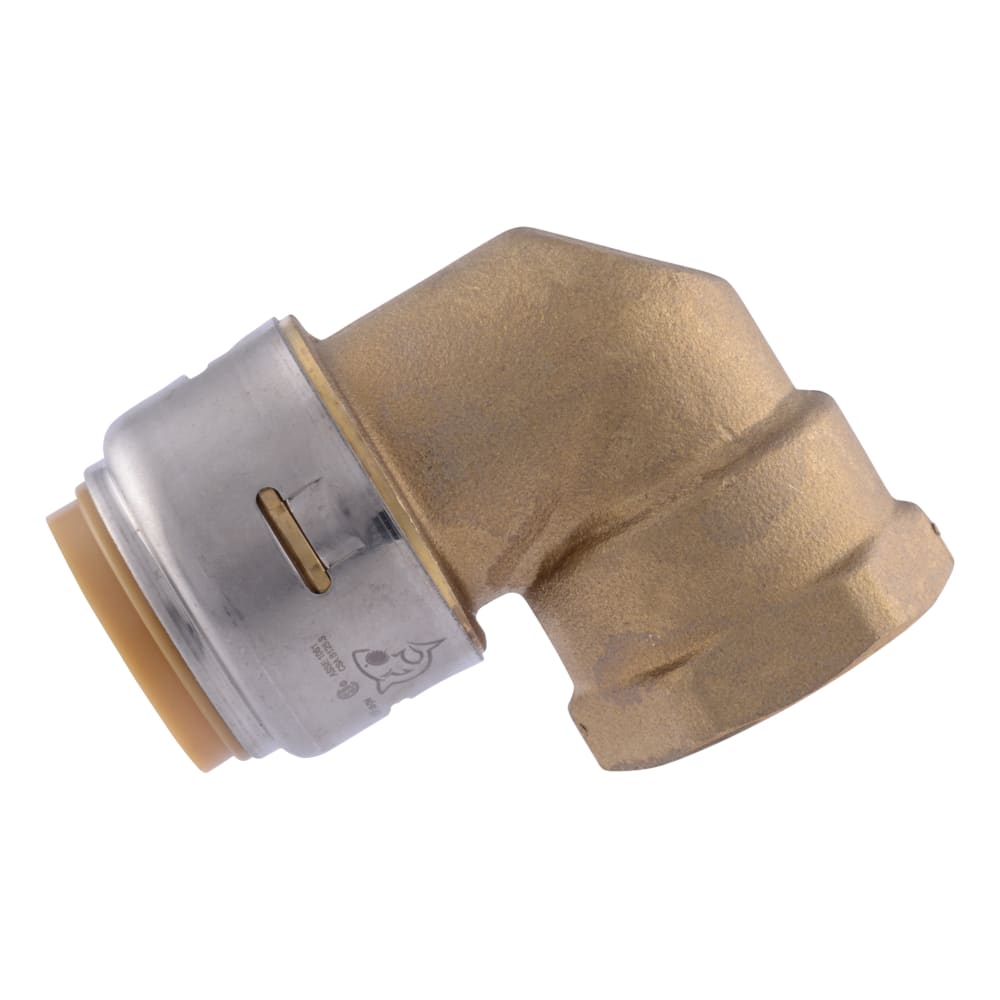

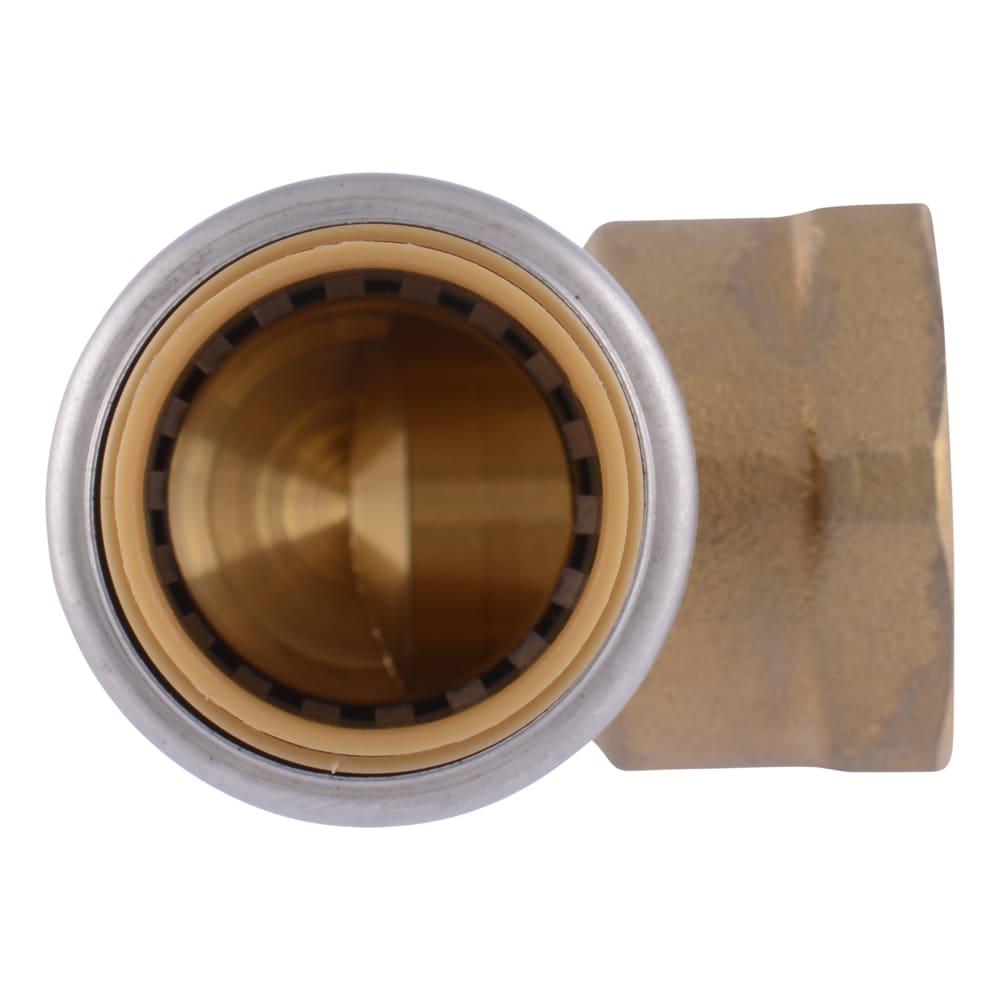

SharkBite UR314 is a 3/4" SharkBite Max female adapter elbow with a female pipe thread (FIP) end and a push-to-connect (PTC) end.
SharkBite Max push-to-connect fittings join PEX, copper, CPVC, PE-RT or HDPE pipe without soldering, clamps, glue or special tools, and the manufacturer lists a 400 psi pressure rating. This version turns a 90° corner and adds a female threaded connection.
Before ordering, confirm the pipe type and size going into the push-to-connect end, and check that the female thread end suits the male threaded part it will connect to. Installation instructions and a specification sheet are linked below.
Specifications
- Brand: SharkBite
- Manufacturer Part #: UR314
- Connection Size: 3/4"
- Connection Type: FIP x PTC
- Type: 90° Elbow (FIP)
- Category: Push Fittings
Documents
- Installation Instructions (PDF)
- Specification Sheet (PDF)
See also: push fittings, all SharkBite products.
