Standing Pilot Burner for Natural Gas, includes an A26 and K14 Orifices, 1 in Batwing Tip Style, B-Style Mounting Bracket, primary aeration

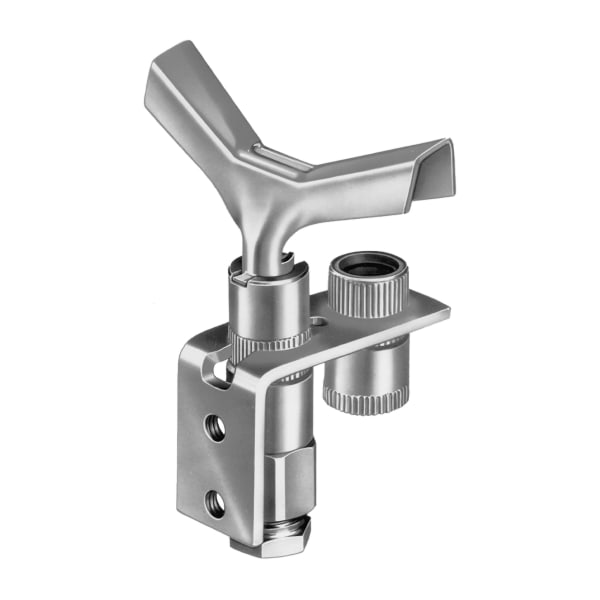

Resideo Q327A1626/U Standing Pilot Burner for Natural Gas, A26 and K14 Orifices, 1 in Batwing Tip Style, B-Style Mounting Bracket, Primary Aeration

Item #: HONE-Q327A1626/U
Mfr. part #: Q327A1626/U
UPC: 085267067225

Key specifications

MountingBracket Style B
CGACSA International: 112395
Type of GasNatural,LP
AerationPrimary
Compression Fittin1/4 in.

View all specifications

$61.60

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.16 lb
Box size: 6 × 3.45 × 1.1 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	Q327A1626/U
Mounting	Bracket Style B
Application	Pilot Burner for Standing Pilot Applications
Includes	A26 and K14 orifices
CGA	CSA International: 112395
Type of Gas	Natural,LP
Aeration	Primary
Compression Fitting Size	1/4 in.
Compression Fitting Length	0.65 in.
Orifice	A26 (0.026 in.) / K14 (0.014 in.) (packed)
Tip Style	Batwing
Direction of Front Tip	1" wing span
UPC	085267067225

Pilot burner from Resideo (Honeywell Home), part number Q327A1626/U.

The pilot burner holds the small standing flame that lights the main burner and keeps the thermocouple hot. It is a part that does not fail so much as it clogs — lint, rust scale and spider webs in the pilot tube are the classic cause of a furnace that will not stay lit.

Pilot assemblies are sized and aimed for the appliance they were built for, and the catalogue is full of parts that look alike across the bench. Bracket geometry, tube length, tip direction and orifice all have to line up, which is why the part number on the old assembly is worth more than a visual match.

When a pilot problem turns out not to be the burner, it is nearly always upstream of it: a blocked or kinked pilot tube, a thermocouple that no longer makes millivolts, or a draft condition pulling the flame off the thermocouple tip. Replace the assembly, but check the tube and the draft while it is apart.
