Vacuum Pump 7 CFM 2-Stage A2L Refrigerant
NAVAC

Navac NP7DP2 Vacuum Pump 7 CFM 2-Stage A2L Refrigerant

Item #
NAVA-NP7DP2
Mfr. part #
NP7DP2

$667.83
Each
Currently unavailable
  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 29.6 lb
  • Box size: 17.1 × 14.05 × 8.25 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandNAVAC
Manufacturer part #NP7DP2

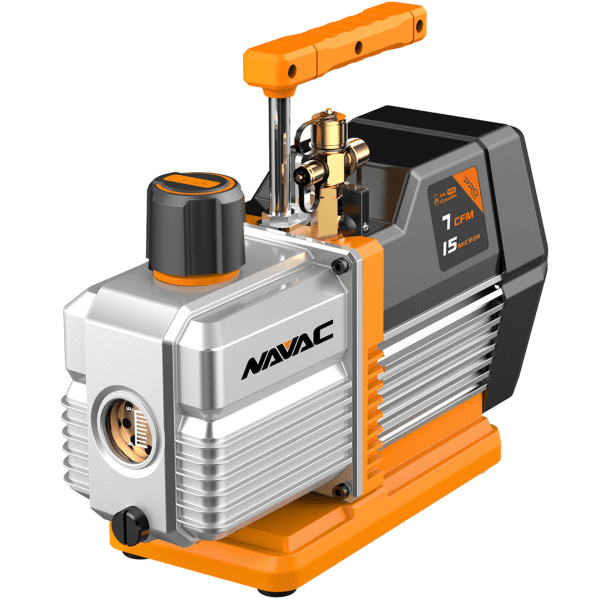

The NAVAC NP7DP2 is a 7 CFM, dual-stage vacuum pump that is compatible with A2L refrigerants such as R-32 and R-454B. It reaches an ultimate vacuum of 15 microns for system evacuation.

Key features

  • A2L (R-32, R-454B) compatible
  • Dual-stage design down to 15 microns
  • Integrated cylinder structure with forced oil circulation
  • Built-in hook for carrying and hanging

Specifications

  • Brand: NAVAC
  • Manufacturer part number: NP7DP2
  • Flow rate: 7 CFM
  • Ultimate vacuum: 15 microns
  • Power supply: 115 V / 60 Hz, 4 A RLA
  • Motor: 3/4 HP AC
  • Inlet ports: 1/4 in., 3/8 in. and 1/2 in. flare
  • Oil capacity: 15 oz
  • Dimensions: 14 x 5 x 11.3 in.
  • Weight: 26 lb
  • Manufacturer's warranty: 1 year

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$667.83
Unavailable
