Truebro

The Truebro collection covers ADA undersink piping covers. It includes Lav Guard 2 100 Series covers for tubular P-traps in China white, with options that add one or two angle valve and supply covers, a 5 in. offset tailpiece and a wheelchair strainer assembly.

Undersink covers protect wheelchair users from hot pipes and sharp edges beneath accessible lavatories. They are common in commercial restrooms, schools, healthcare facilities and other public buildings that must meet accessibility requirements.

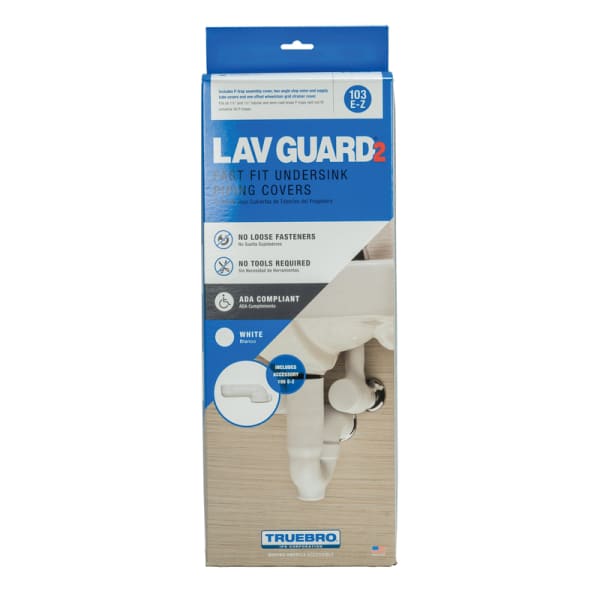

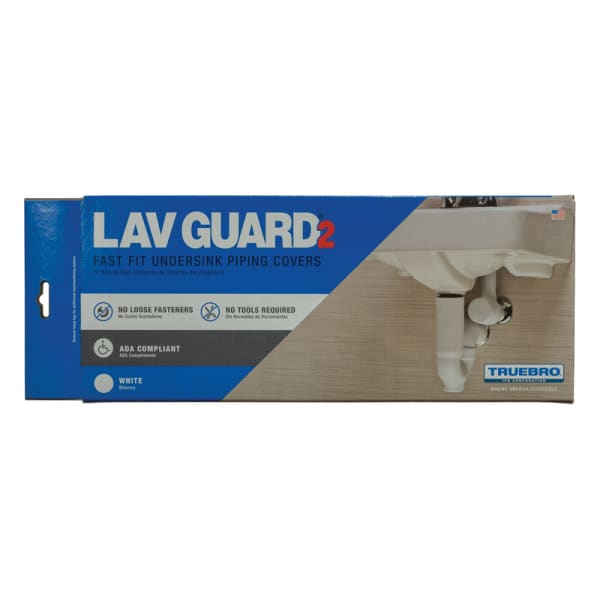

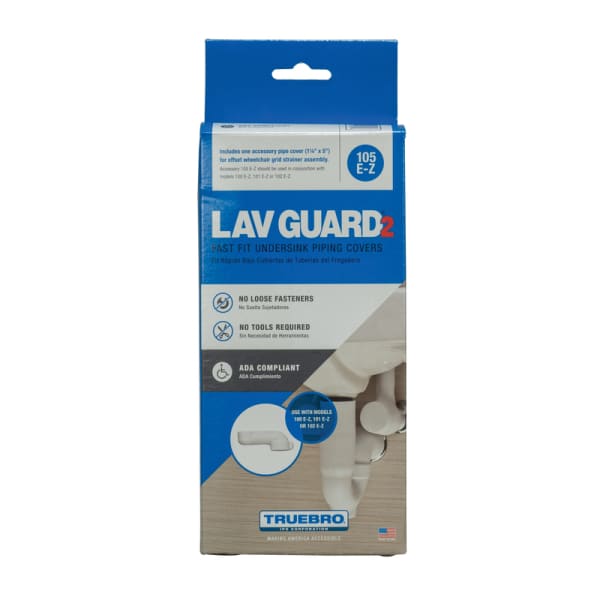

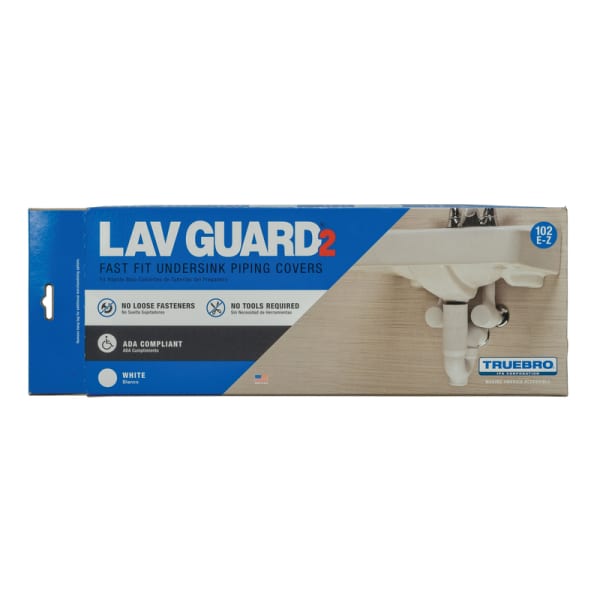

To pick the right kit, look under the sink and count the angle valves and supply lines, then confirm the trap is a tubular P-trap. The 82190 covers the trap only, the 82192 adds one valve and supply cover, and the 82193 adds two. The 82194 combines two valve and supply covers with the offset tailpiece and wheelchair strainer, and the 82195 is the offset tailpiece and strainer assembly on its own.

An offset tailpiece moves the drain toward the back wall, which frees up knee space under the lavatory. Confirm your project's accessibility code requirements before ordering.
