1-1/2" x 1-1/4" - (P-P) - Reducer, ProPress®
Viega

Viega 78162 1-1/2" x 1-1/4" - (P-P) - Reducer, ProPress®

Item #
VEGA-78162
Mfr. part #
78162
UPC
691514781624

Key specifications
  • Type2 - Coupling (Reducing)
  • Size1-1/2" x 1-1/4"
  • ConnectionPress
  • MaterialCopper
View all specifications
$66.03
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.59 lb
  • Box size: 2.12 × 2.96 × 2.12 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandViega
Manufacturer part #78162
Connection TypePress
MaterialCopper
Size1-1/2" x 1-1/4"
Type2 - Coupling (Reducing)
UPC691514781624

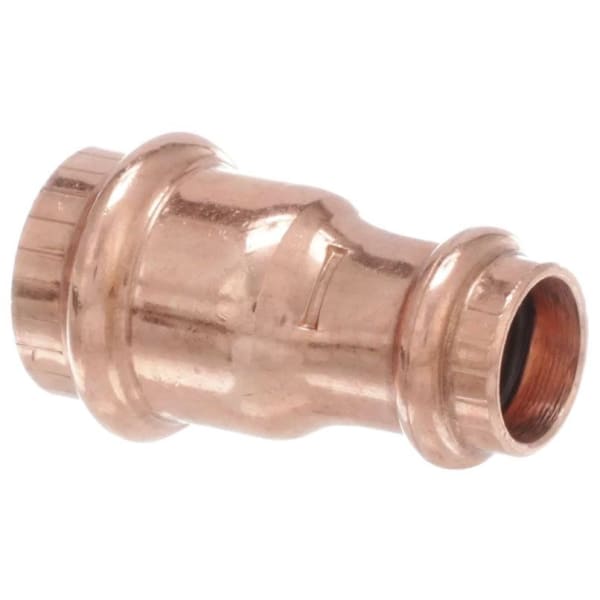

Viega 78162 is a 1-1/2" x 1-1/4" ProPress reducer, P x P (P = press end for copper tube).

A reducer steps the line down from the larger size to the smaller one.

Viega ProPress joins copper tube with a press tool and ProPress jaw: no flame, no solder and no hot-work permit. The EPDM sealing element is factory installed, and Viega's Smart Connect design lets an unpressed fitting show itself during the pressure test. ProPress is approved for hot and cold potable water, hydronic heating with glycol, chilled water, compressed air and non-medical gases.

Specifications

  • Brand: Viega
  • Manufacturer Part #: 78162
  • System: ProPress
  • Size: 1-1/2" x 1-1/4"
  • Type: Reducer
  • Connections: P x P
  • Material: Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
  • Sealing element: EPDM
  • Operating pressure: 300 psi max
  • Temperature: 0°F to 250°F
  • Listings: ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
  • Tube: ASTM B88 Type K, L or M copper
  • UPC: 691514781624
  • Shipping Weight: 0.41 lb
  • Dimensions: 2.122 x 2.961 x 2.122 in (L x W x H)
  • Category: Press Fittings - Copper (CTS)
