1-1/2" x 1" - (FTG (CTS)-P) - Fitting Reducer, ProPress®

Roll over image to zoom in Click on image to zoom

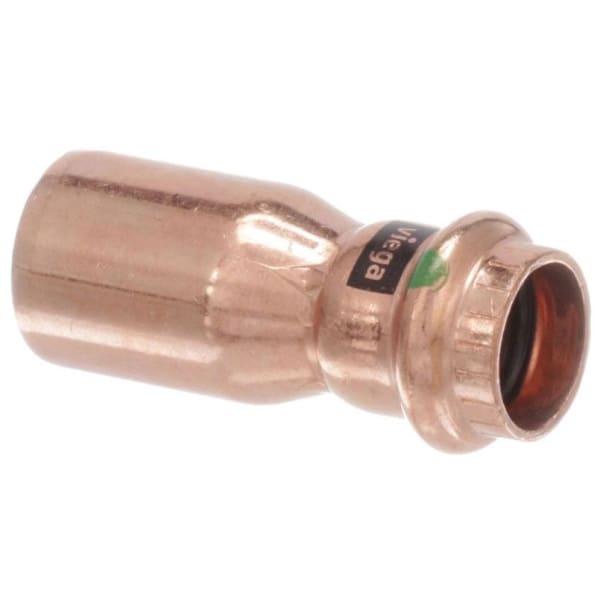

Viega 78102 1-1/2" x 1" - (FTG (CTS)-P) - Fitting Reducer, ProPress®

Name: Viega 78102 1-1/2" x 1" - (FTG (CTS)-P) - Fitting Reducer, ProPress®
Brand: Viega
SKU: VEGA-78102
Price: 34.41 USD
Availability: InStock

ViegaSKU: VEGA-78102

Price:

$34.41

Stock:

In stock (91 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.48 lb
Box size: 1.63 × 3.19 × 1.63 in

Connection Type	Press x FTG
Material	Copper
Size	1-1/2" x 1"
Type	Fitting Reducer

Viega 78102 is a 1-1/2" x 1" ProPress fitting reducer, FTG(CTS) x P (FTG(CTS) = fitting-size end (copper tube size), slides into another fitting; P = press end for copper tube).

A reducer steps the line down from the larger size to the smaller one.

Viega ProPress joins copper tube with a press tool and ProPress jaw: no flame, no solder and no hot-work permit. The EPDM sealing element is factory installed, and Viega's Smart Connect design lets an unpressed fitting show itself during the pressure test. ProPress is approved for hot and cold potable water, hydronic heating with glycol, chilled water, compressed air and non-medical gases.

Specifications

Brand: Viega
Manufacturer Part #: 78102
System: ProPress
Size: 1-1/2" x 1"
Type: Fitting Reducer
Connections: FTG(CTS) x P
Material: Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
Sealing element: EPDM
Operating pressure: 300 psi max
Temperature: 0°F to 250°F
Listings: ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
Tube: ASTM B88 Type K, L or M copper
UPC: 691514781020
Shipping Weight: 0.28 lb
Dimensions: 1.626 x 3.189 x 1.626 in (L x W x H)
Category: Press Fittings - Copper (CTS)
