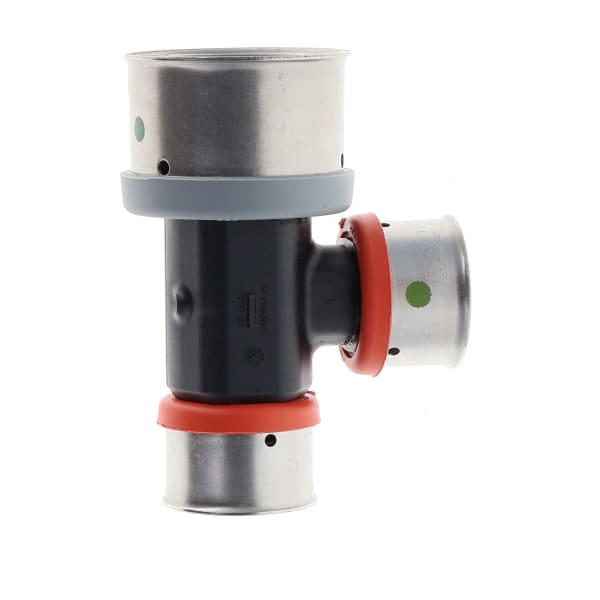

Viega 49855 is a 1-1/2" x 1" x 1" PureFlow Press PEX reducing tee in PPSU polymer.
A reducing tee: the first two figures are the run (1-1/2" and 1") and the last is the branch (1").
Viega PureFlow Press makes a PEX joint with a factory-attached stainless steel sleeve. The three view holes show the tubing is fully inserted, and the press is made with a PureFlow hand tool or power tool. PureFlow Press is approved for hot and cold potable water and, with Viega Barrier PEX, for hydronic heating and cooling.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 49855
-
System: PureFlow Press
-
Size: 1-1/2" x 1" x 1"
-
Type: Reducing Tee
-
Connections: Press
-
Material: PPSU polymer
-
Press sleeve: 304 stainless steel, factory attached, with view holes
-
Rating: 160 psi at 73°F, 100 psi at 180°F
-
Temperature: 180°F max potable, 200°F max hydronic
-
Listings: ASTM F3347 / F3348, CSA B137.5, NSF-pw 372
-
UPC: 691514498553
-
Shipping Weight: 0.195 lb
-
Dimensions: 3.606 x 2.705 x 1.85 in (L x W x H)
-
Category: Viega PureFlow Press Fittings
