Viega 94520 1/2" PEX Drop Ear Elbow (Press) - PureFlow® Press (Brass)

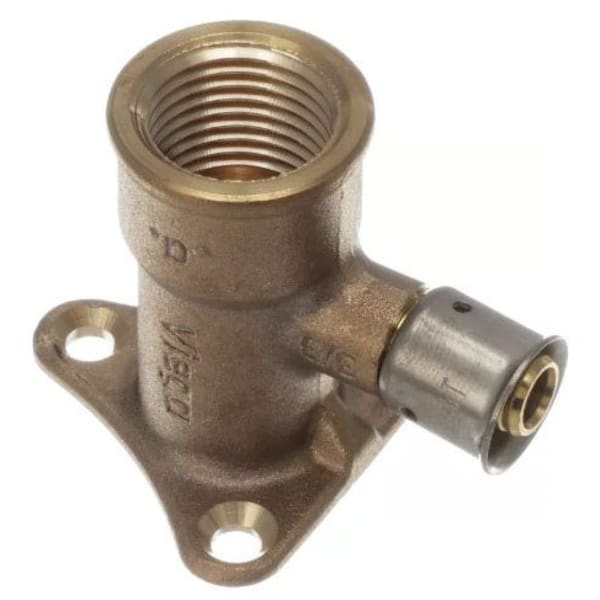

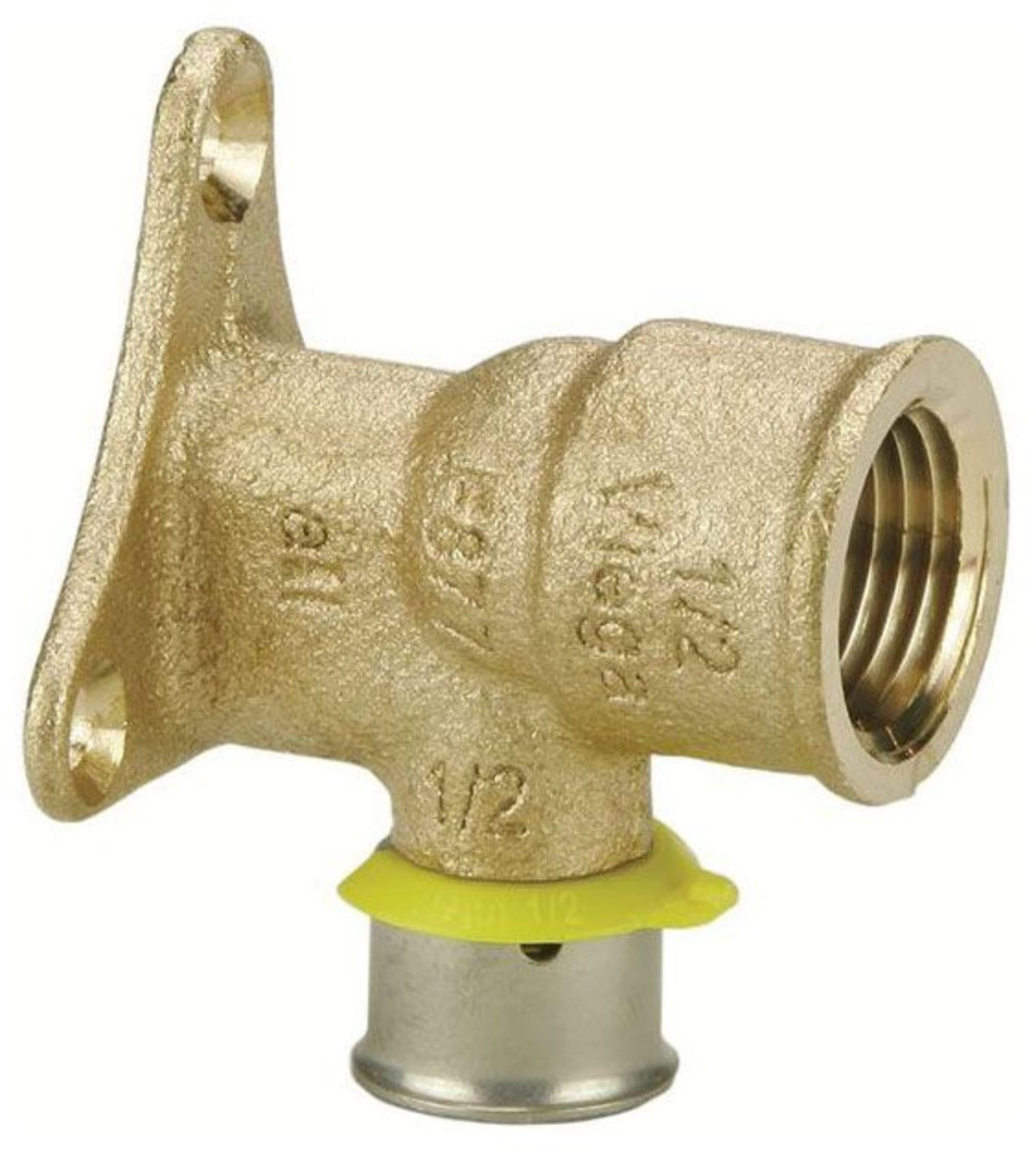

Viega 94520 is a 1/2" PureFlow Press PEX drop ear elbow in brass.

A drop-ear elbow has a mounting tab that screws to the framing, which is how a shower arm or hose bibb connection is held solid in the wall.

Viega PureFlow Press makes a PEX joint with a factory-attached stainless steel sleeve. The three view holes show the tubing is fully inserted, and the press is made with a PureFlow hand tool or power tool. PureFlow Press is approved for hot and cold potable water and, with Viega Barrier PEX, for hydronic heating and cooling.

Specifications

• Brand: Viega
• Manufacturer Part #: 94520
• System: PureFlow Press
• Size: 1/2"
• Type: Drop Ear Elbow
• Connections: Press
• Material: Brass
• Press sleeve: 304 stainless steel, factory attached, with view holes
• Rating: 160 psi at 73°F, 100 psi at 180°F
• Temperature: 180°F max potable, 200°F max hydronic
• Listings: ASTM F3347 / F3348, CSA B137.5, NSF-pw 372
• UPC: 691514945200
• Category: Viega PureFlow Press Fittings
