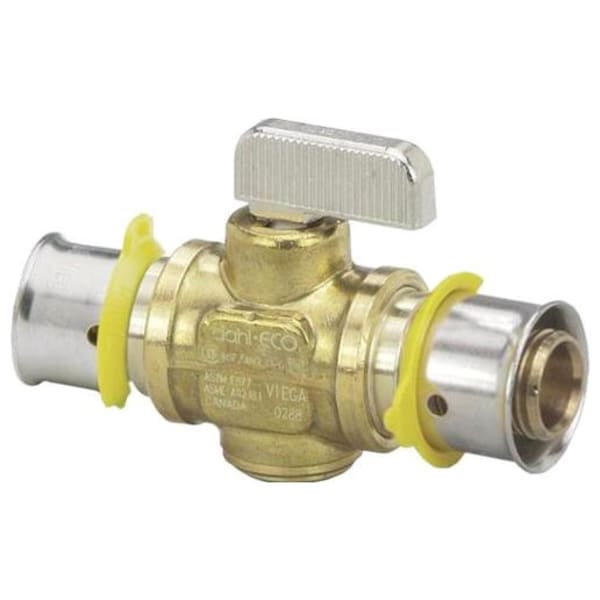

Viega 94521 is a 1/2" PureFlow Press PEX ball valve in brass.
A ball valve shuts off with a quarter turn, and the handle position shows at a glance whether it is open.
Viega PureFlow Press makes a PEX joint with a factory-attached stainless steel sleeve. The three view holes show the tubing is fully inserted, and the press is made with a PureFlow hand tool or power tool. PureFlow Press is approved for hot and cold potable water and, with Viega Barrier PEX, for hydronic heating and cooling.
Specifications
-
Brand: Viega
-
Manufacturer Part #: 94521
-
System: PureFlow Press
-
Size: 1/2"
-
Type: Ball Valve
-
Connections: Press
-
Material: Brass
-
Press sleeve: 304 stainless steel, factory attached, with view holes
-
Rating: 160 psi at 73°F, 100 psi at 180°F
-
Temperature: 180°F max potable, 200°F max hydronic
-
Listings: ASTM F3347 / F3348, CSA B137.5, NSF-pw 372
-
UPC: 691514945217
-
Shipping Weight: 0.16 lb
-
Dimensions: 2.591 x 0.839 x 1.622 in (L x W x H)
-
Category: Viega PureFlow Press Fittings
