| Pipe Size | 1 IN. |
| Connection Type | Female NPT Threaded Inlet & Outlet Externally threaded for Unions |
| Valve Type | Pressure Regulating Valve |
| Operating Temperature | 140 F Maximum |
| Controlled Fluid | Potable water |
| Materials (Body) | Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics. |
| Dimensions | 6-15/16 in. high x 3-15/16 in. long (Union body no tailpieces) |
| CSA | Certified (B356-10) |
| Approvals, Others | NSF/ANSI; IAPMO |
| Outlet Pressure Adjustment Range (psi) | 25-90 psi |
| Max. Inlet Pressure Rating (psi) | 250 psi |
| Gauge Tap | 1/4 in. NPT (two, one on each side of body). |
| Calibrated Adjustment Dial | YES |
| Reducing Ratio | 10:1 Maximum |
| Union Fittings | Single-Union Threaded |
| Approvals, ASSE | Certified 1003-2009 |
| Approvals, IAPMO | Listed |
Description

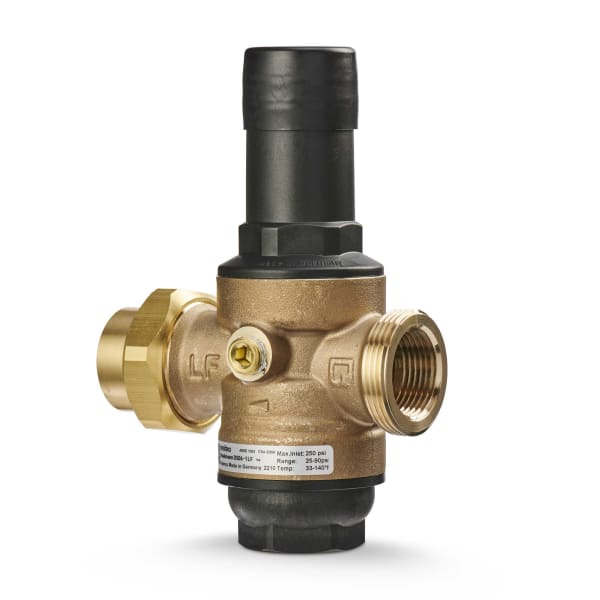

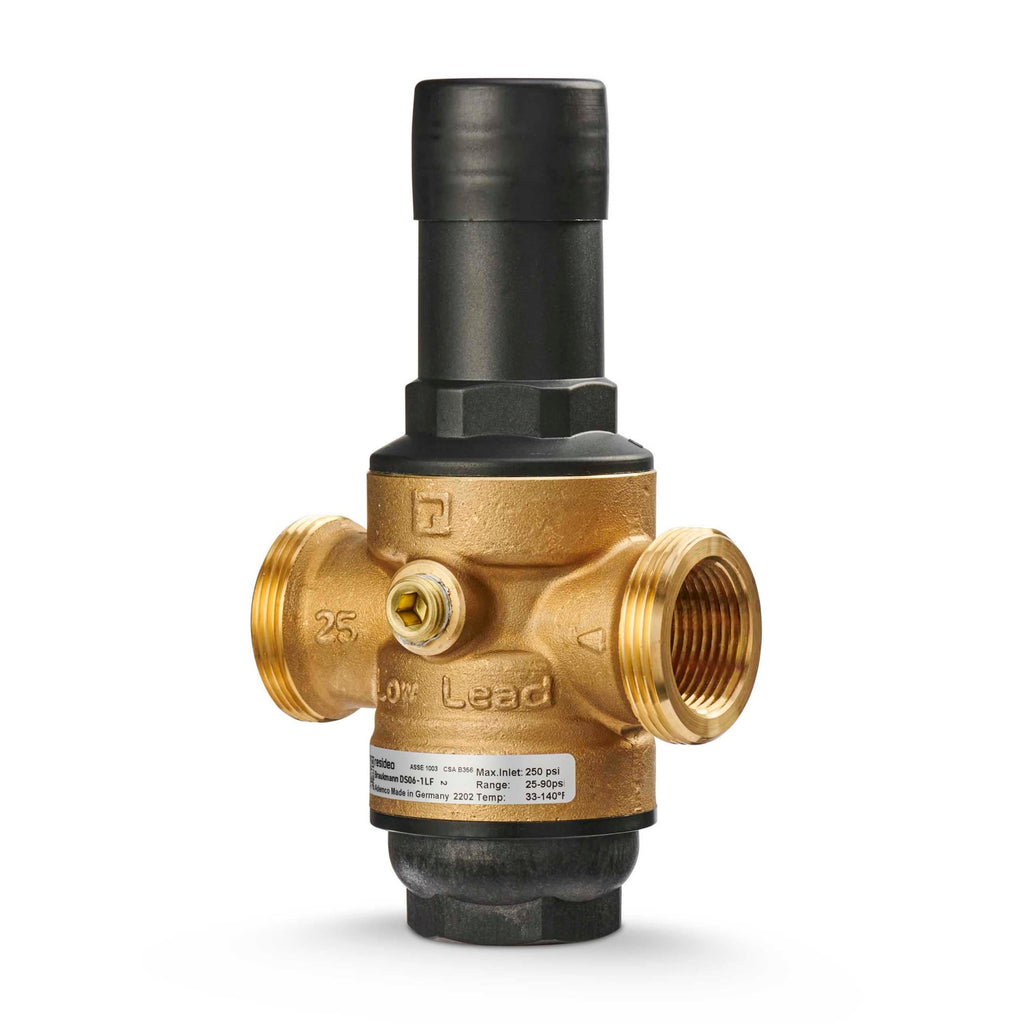

The DS06-102-SUT-LF is a lead-free pressure reducing valve from Resideo (Honeywell Home), 1 inch, NPT connection, single union.
A pressure reducing valve sits where the water service enters the building and holds house pressure at a set value regardless of what the street is doing. Municipal mains commonly run well above what residential fixtures are rated for, and street pressure is not constant — it climbs at night when demand drops.
Uncontrolled pressure is what shortens the life of everything downstream. Fill valves, supply lines, washing machine hoses and water heaters all fail earlier on high pressure, and most plumbing codes cap what may be delivered to fixtures. The PRV is the single component that decides whether the rest of the system lives at its rated pressure.
This is a DialSet valve: the outlet pressure is set on a dial on the valve itself, without plumbing in a gauge and without trial and error. On a commissioning visit that is the difference between setting the pressure in a minute and chasing it with a test gauge and an adjusting screw.
The single union body gives a service joint on one side. It is the more compact arrangement where the run into the valve is fixed and the outlet side can be broken.
Lead free construction, as required for potable water in the United States.
Size the valve to the service line, not to the fixture count. An oversized PRV hunts at low flow; an undersized one starves the building at peak draw.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: DS06-102-SUT-LF/U
- Type: Pressure reducing valve
- Size: 1 in
- Connection: NPT
- Union: Single union
- DialSet: Yes
- Lead free: Yes
- UPC: 085267981767
- Shipping weight: 1.8 lb
- Category: Pressure Reducing Valves
